Fig. 18
Download original image

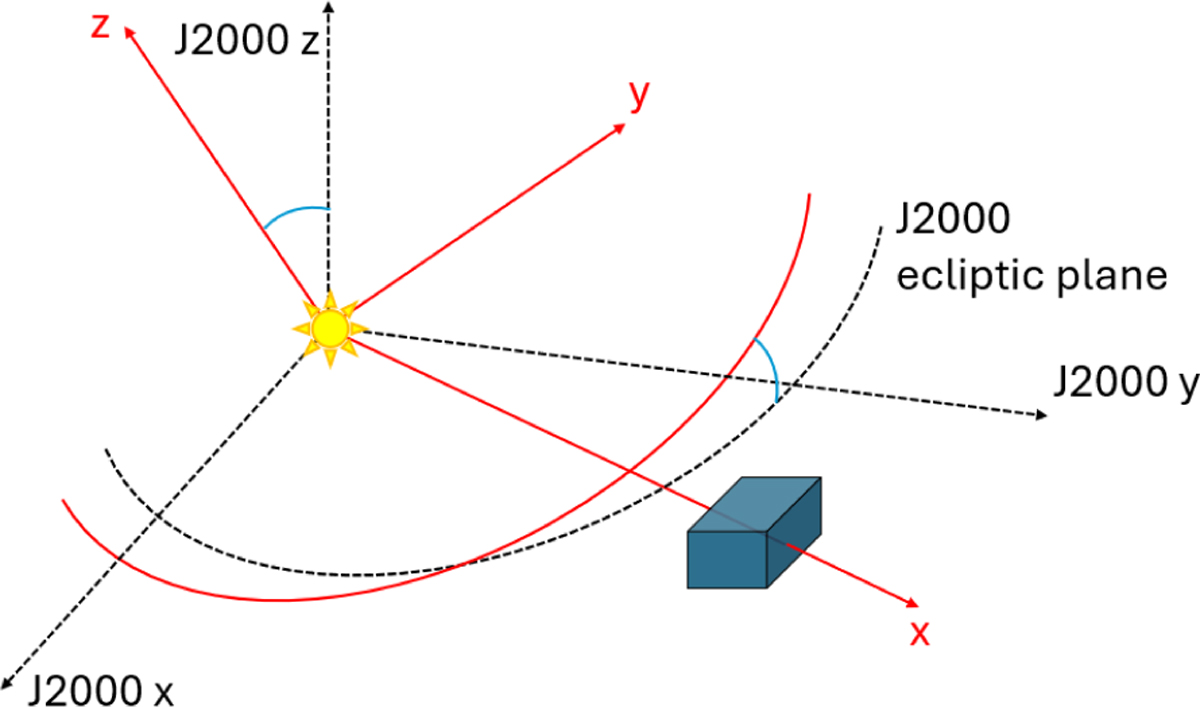

Schematics describing the new reference frame. The solid red lines represent the new reference frame, while the dashed black lines represent the J2000 ecliptic reference frame. The box represents BepiColombo. The two blue angles are of the same value.
