Fig. A.1.


Download original image

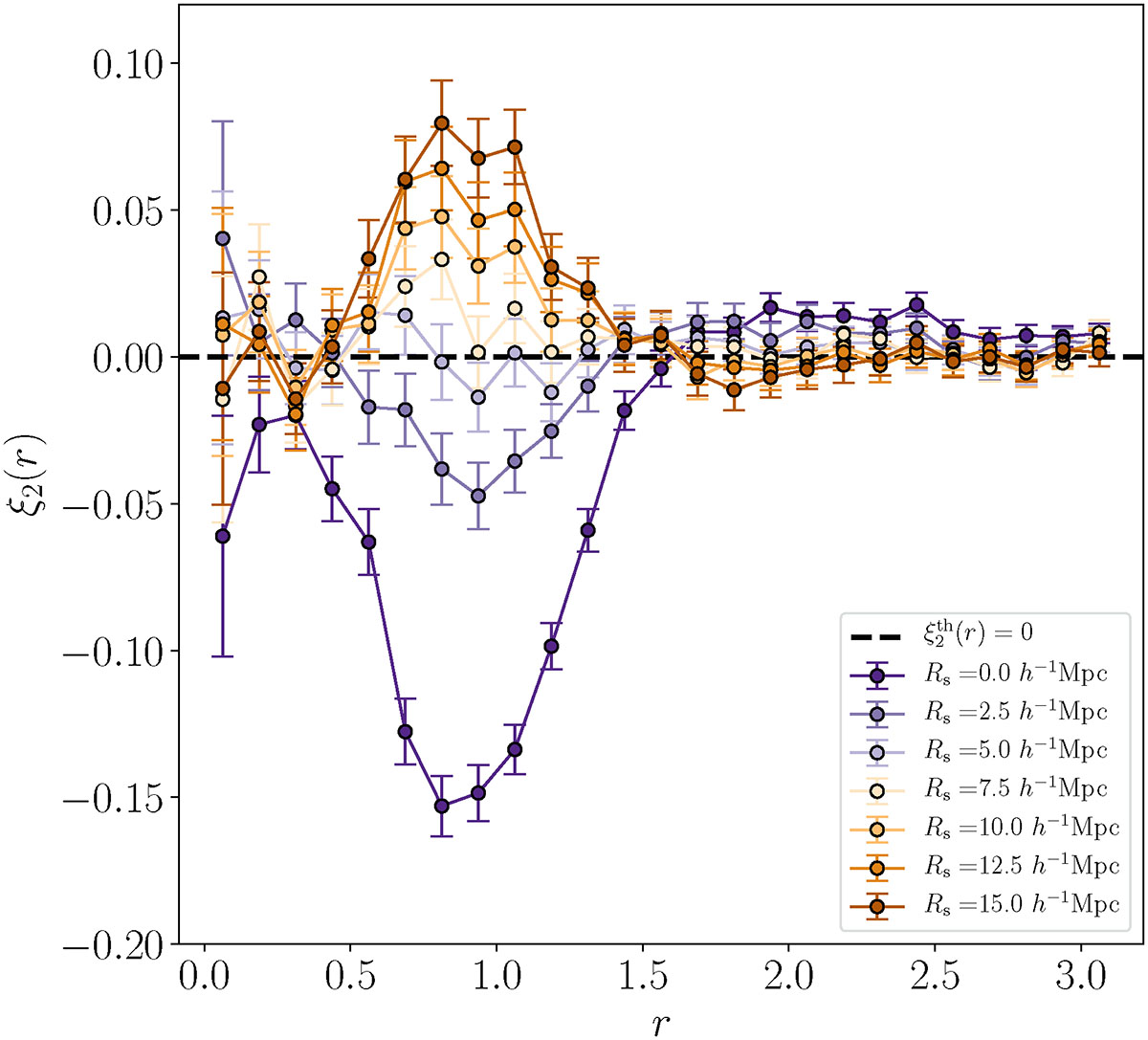

Quadrupole of the VGCF computed with reconstructed data, for different choices of the fixed smoothing scale Rs used in the reconstruction procedure. Error bars are computed as the diagonal of the covariance matrix. The choice Rs = 5.0 h−1Mpc results in an isotropic correlation function, corresponding in a measured quadrupole matching with the dashed black line, which is the expected zero quadrupole ξ2th = 0. Residual anisotropies are seen for other values of Rs. The quadrupole moment, and consequently the effect of Rs, is accentuated near the edge of the void due to the presence of nonlinearities caused by a higher density contrast.
