Fig. 5.
Download original image

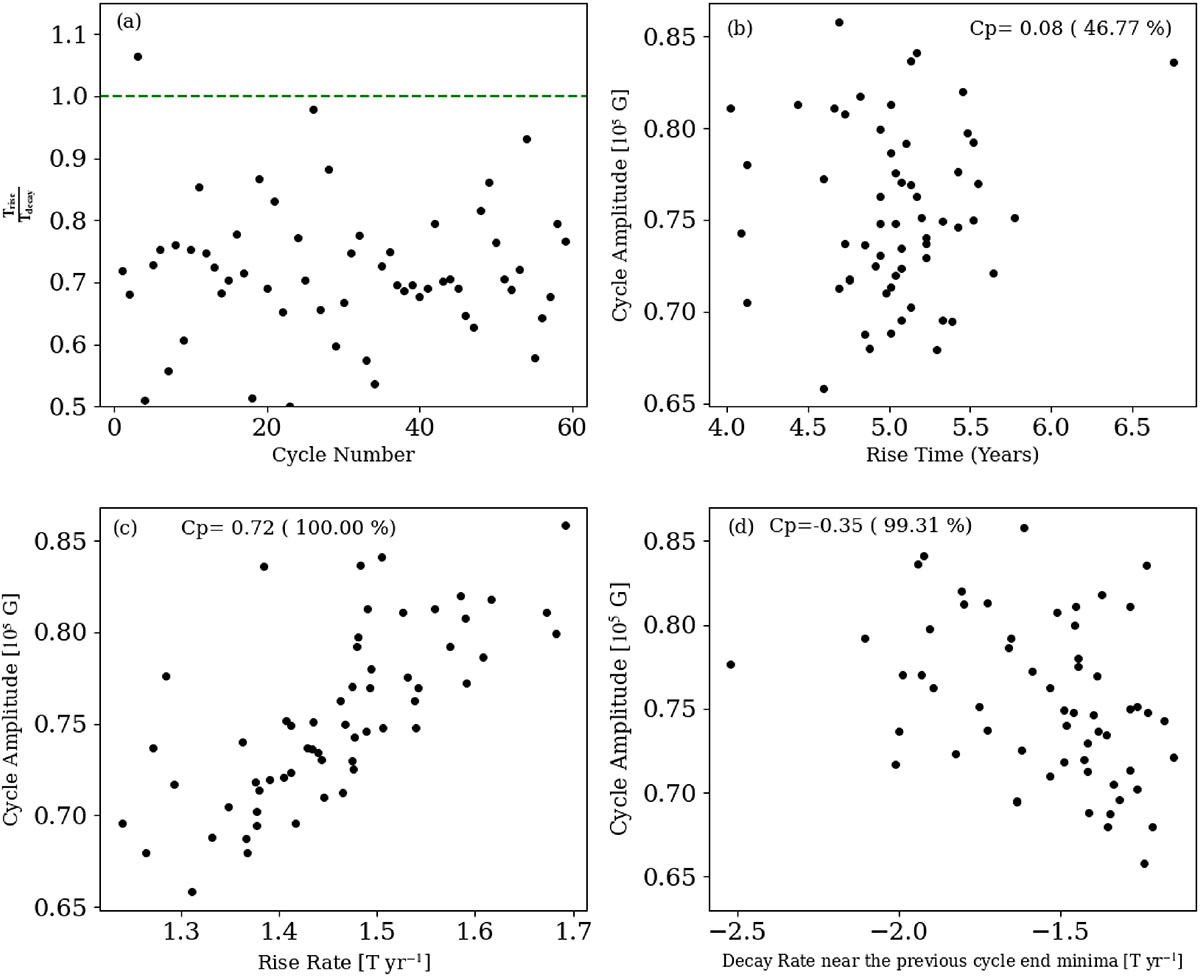

Asymmetry generated from our model when a higher meridional flow speed (29 m s−1) is applied during the rising phase and a slower flow (23 m s−1) during the decaying phase. Additionally, 50% fluctuations were introduced in the poloidal field generation mechanism. The four panels in this figure correspond to the same quantities shown in Fig. 3.
