Fig. 9.
Download original image

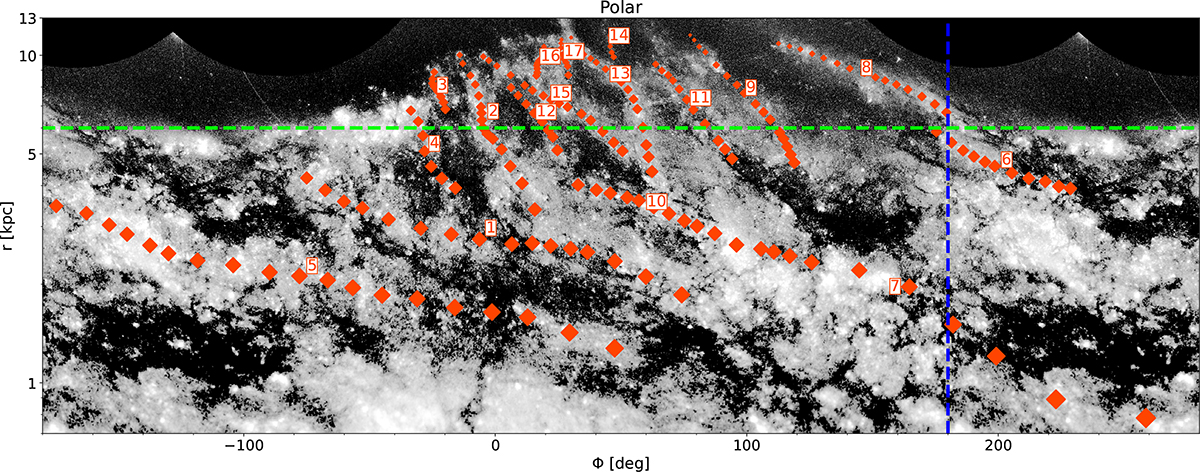

Spiral arm locations shown on the de-projected and sharpened WFC3/UVIS F438W filter in polar coordinates. Radial distance is shown on a logarithmic scale to represent overdensity features as straight lines. Lime green horizontal line represents an Reff of 2. Blue vertical line shows the azimuthal angle of 180°.
