Fig. 12.
Download original image

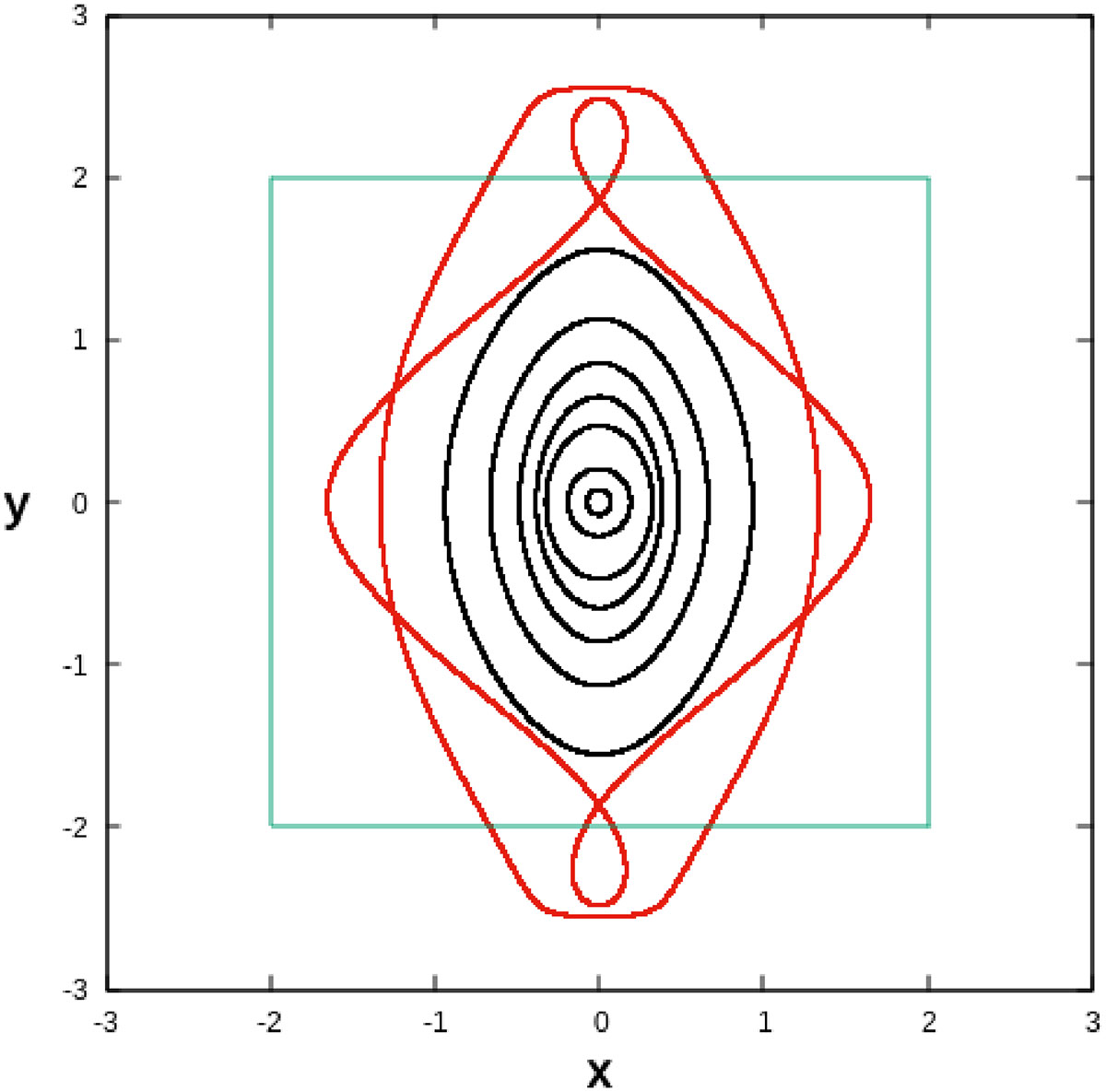

Model R153: Elliptical-like periodic orbits belonging to the x1 family, spanning from the system’s center up to the 4:1 resonance, depicted in black, alongside representatives of the x1 family at the 4:1 resonance region, as well as those from the 4:1 family, illustrated in red. The light blue frame outlines the region of the gaseous responses presented in Fig. 10 and Fig. 11.
