Fig. 1.

Fig. 1. Refer to the following caption and surrounding text.

Download original image

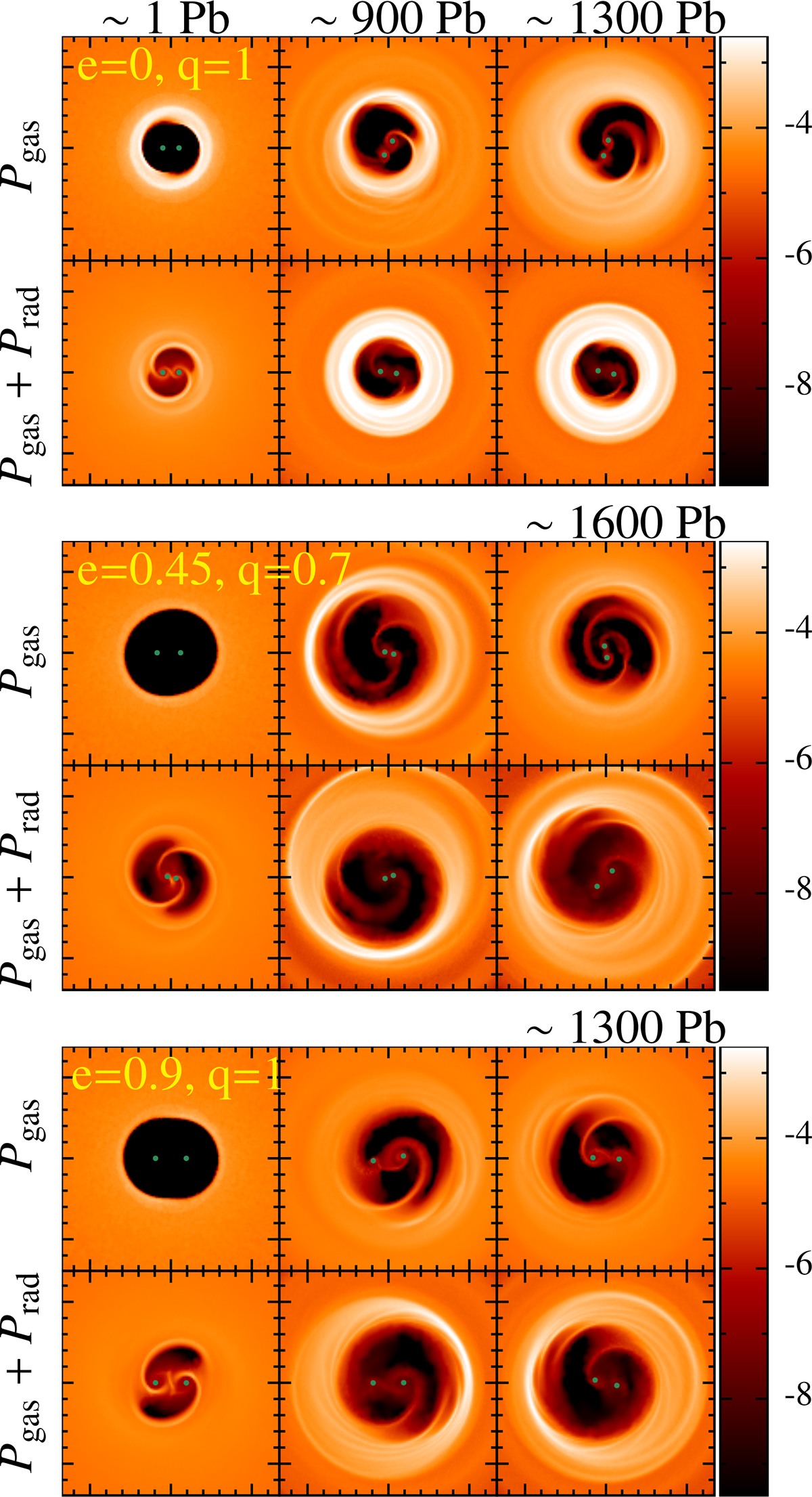

Surface density map in code units (1 code unit = 200 AU) in the x − y plane for the simulations with e = 0, q = 1 (upper panel); e = 0.45, q = 0.7 (middle panel); and e = 0.9, q = 1 (bottom panel) at three different moments: t = 1,  900,  1300 PB for the equal mass cases and t = 1,  900,  1600 PB for the unequal mass case. In each panel, the first and the second row show results for Ptot = Pgas and Ptot = Pgas + Prad, respectively. In the eccentric simulations, the initial cavity radius is 3a0, while in the circular binary case, it is 2a0. When the radiation pressure is included, the binary begins accreting at the very early stages of its evolution; otherwise, the disc experiences a transient phase lasting approximately 900 PB, 700 PB, and 600 PB respectively for the cases e = 0, q = 1; e = 0.45, q = 0.7; and e = 0.9, q = 1. The spatial resolution at the edge of the cavity (r = 3a) is Δx = 0.025a.
