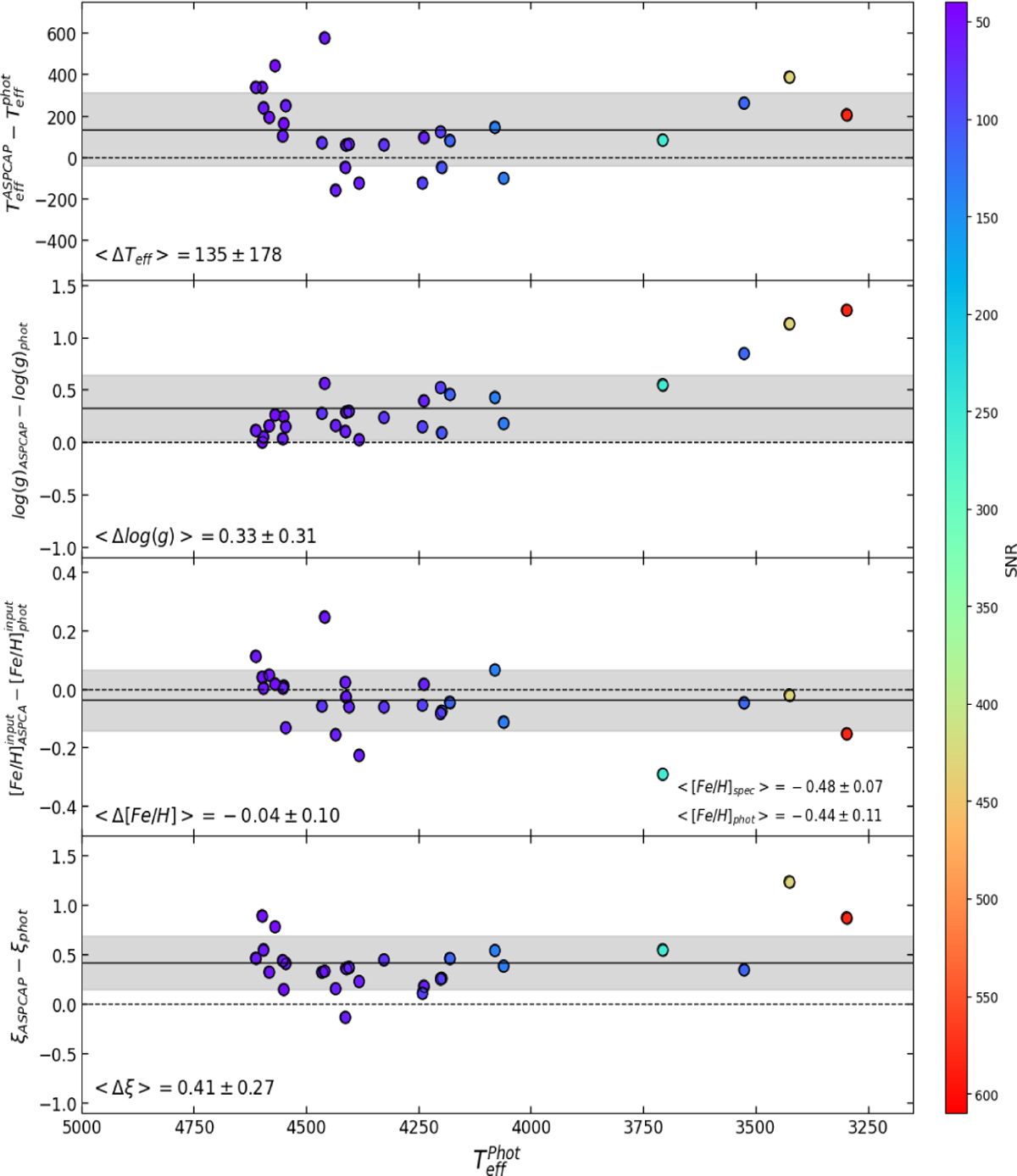

Fig. 3

Fig. 3 Refer to the following caption and surrounding text.

Download original image

Differences in atmospheric parameters, as well as the differences in [Fe/H] resulting from two BACCHUS runs, each adopting different values of Teff and log(g) derived from spectroscopic and photometric parameters. The vertical axis is the difference of each atmospheric parameter and [Fe/H], while the horizontal axis is the TeffphotMathematical equation: $\[\mathrm{T}_{\text {eff}}^{\text {phot}}\]$. Points are color-coded according to S/N. The mean and standard deviation of the differences is represented in each panel by a black line and a gray shadow. These values for each parameter difference are specified at the lower left part of each panel.
