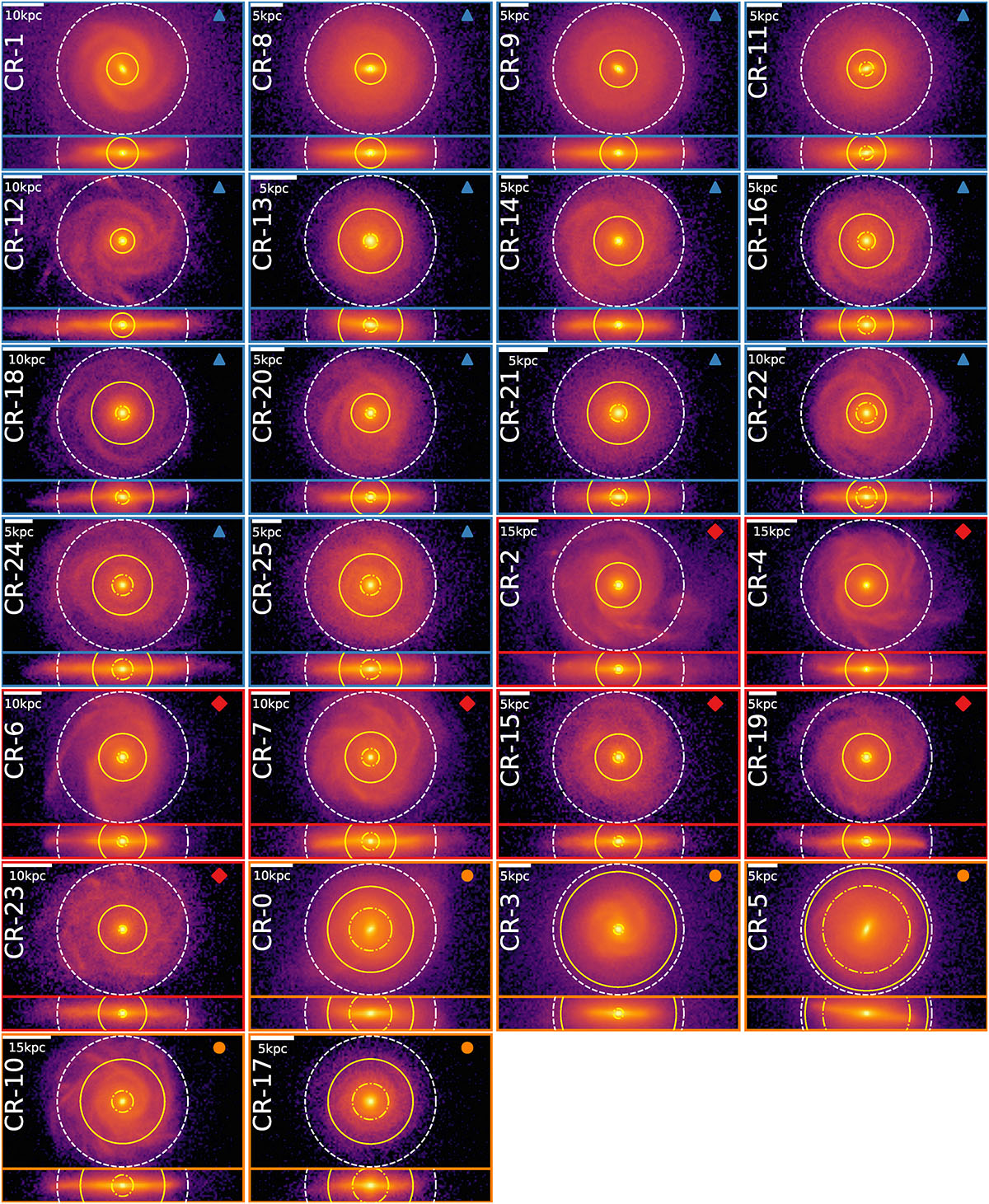

Face-on and edge-on projections of the stellar mass surface density for the 26 significant CRD galaxies. The galaxies are sorted as in figure 9. We show all the stellar particles that belong to the host galaxy. The solid and dotted-dashed yellow circles represent the radii, $R_{95}^{\mathrm{CRD}}$ and $R_{50}^{\mathrm{CRD}}$, of the coplanar counterrotating disk, respectively, while the white dashed circle represents the optical radius, R_opt, of the galaxy. In the top-right corner of each panel, the type is shown, which are extended ex situ CRDs, compact ex situ CRDs, compact in situ CRDs, extended in situ CRDs. The types are respectively represented with a yellow star, red rhombuses, blue triangles, and orange circles.
