Fig. 10
Download original image

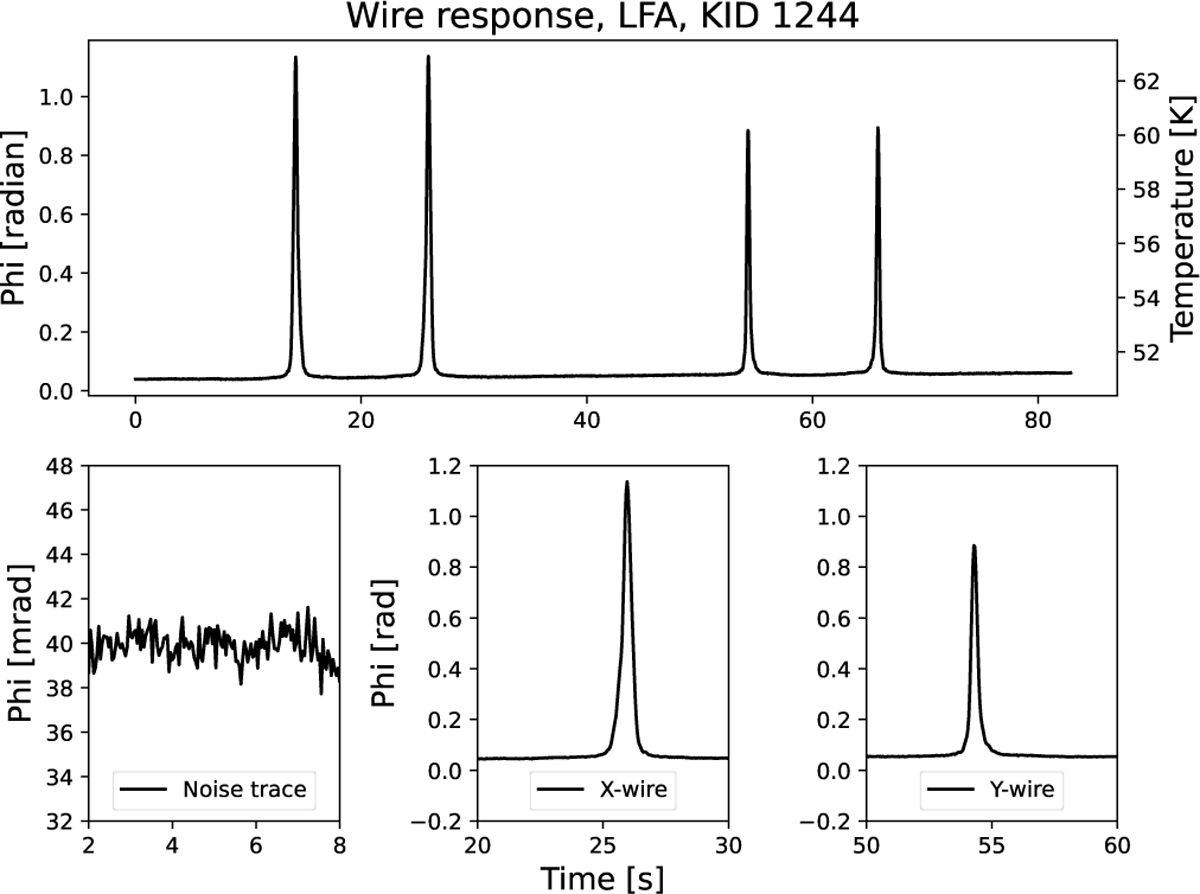

Top: 870µm detector response to a wire movement in the focal plane. The first two peaks correspond to the inward and outward movement of the wire aligned in the
direction. The next two peaks are the response to the ŷ direction wire. Bottom: zoom-in on the quiet part of the trace used for noise statistic calculation, followed by a zoom-in on an
-wire and ŷ-wire response. The different amplitudes are due to the different polarization alignments.
