Fig. 8
Download original image

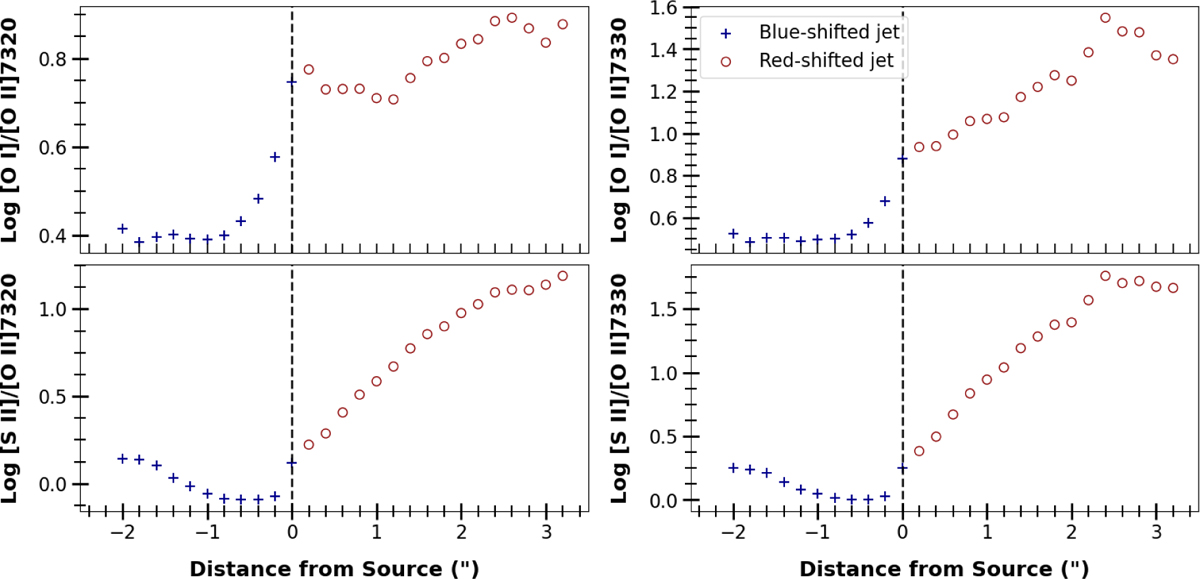

Flux ratios for emission lines of [S II]λ(6716+6731) and [O I]λλ(6300+6363) with the [O II] λ7320 Å and λ7330 Å lines. Fluxes are sampled from the inner +/- 0″.2 of the jet axis. The jet axis is oriented as in Fig. 7. All ratios have been corrected for an average AV = 1.0 mag.
