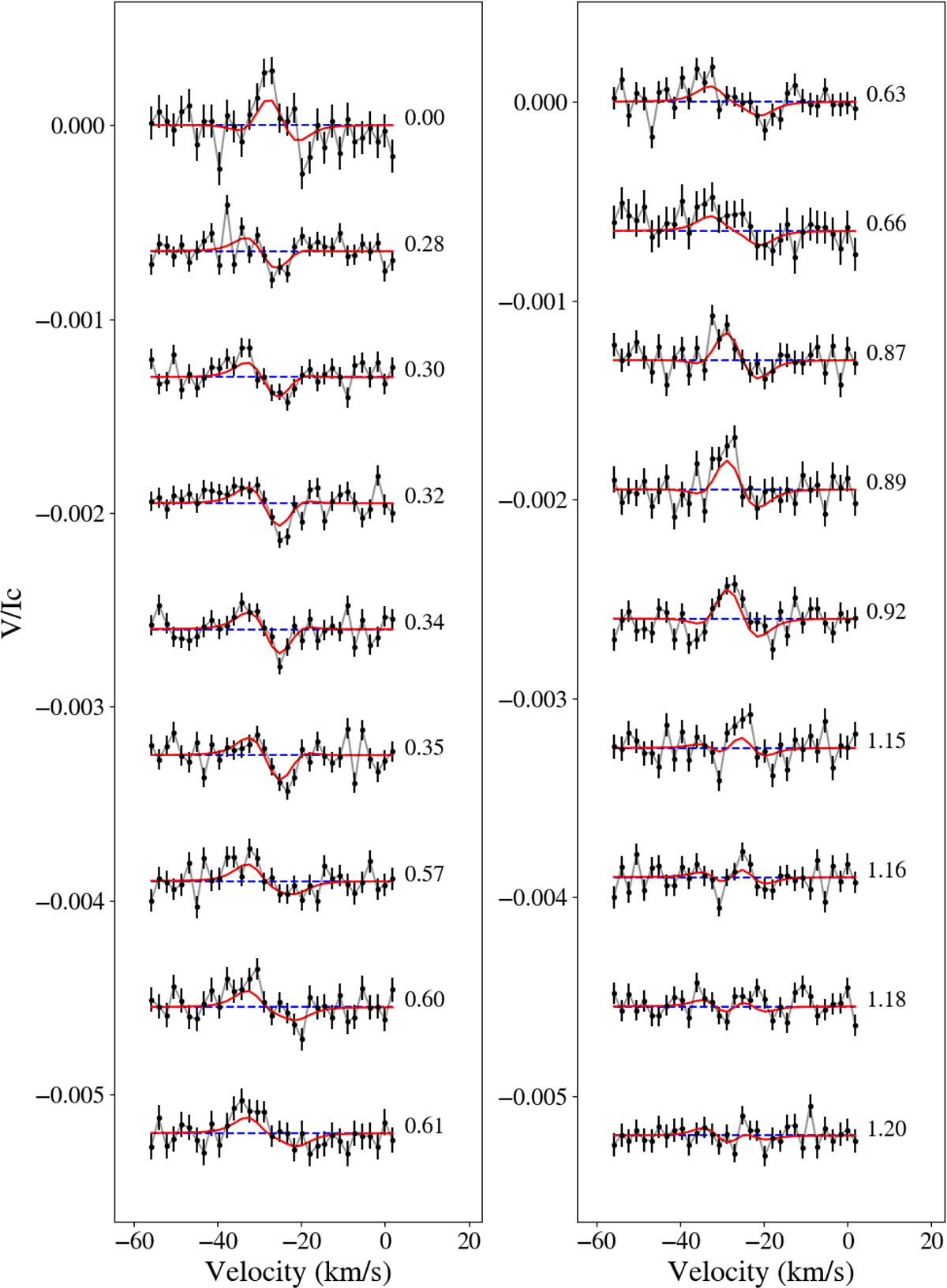

Fig. B.1.
Download original image
Time series of Stokes V LSD profiles and the ZDI models for GJ 504. The observations are shown in black and the models in red. The numbers on the right indicate the rotational cycle computed from Eq. A.1. The horizontal dashed line represents the zero point of the profiles, which is shifted vertically based on the rotational phase for visualisation purposes.
