Fig. A.5.
Download original image

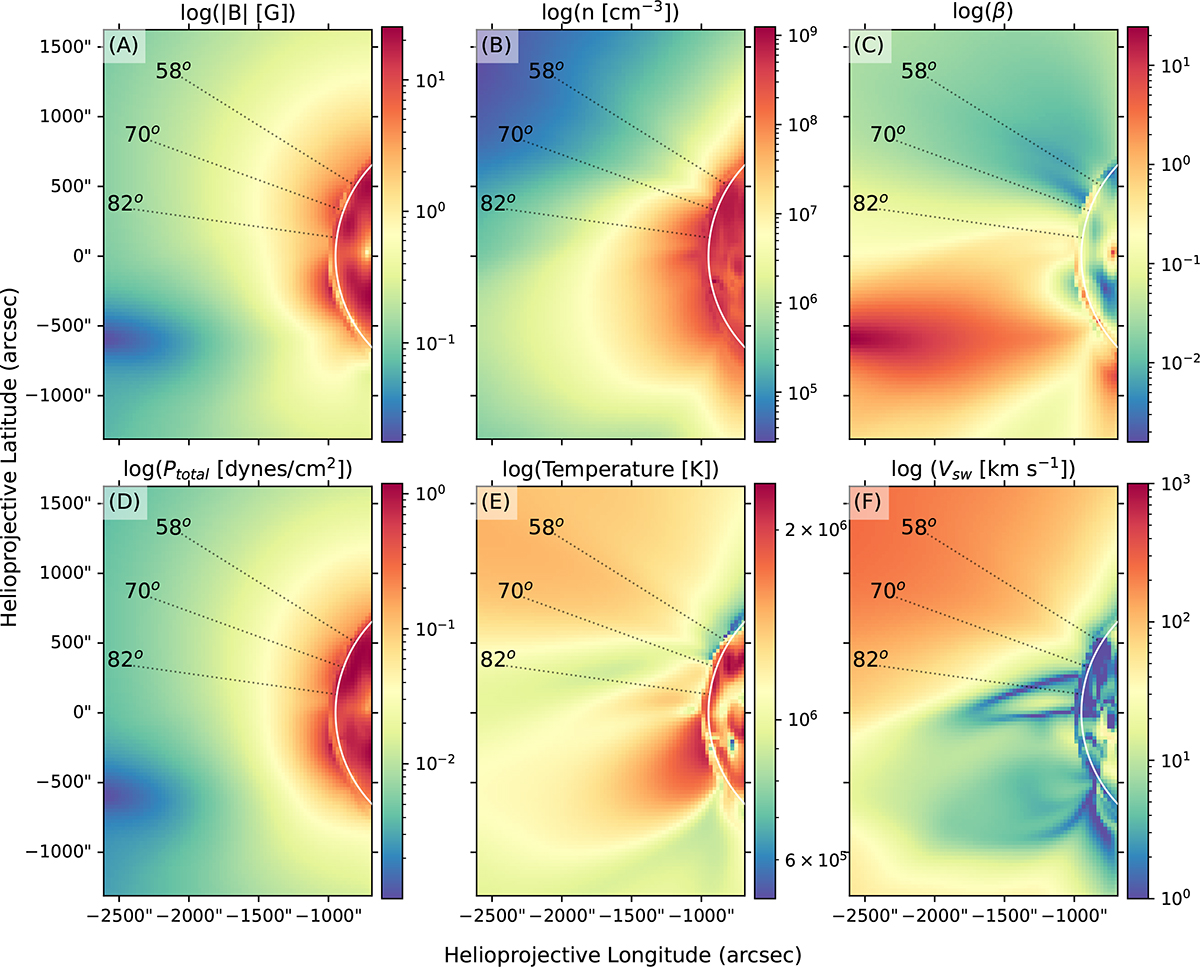

Set of FORWARD maps for the coronal parameters. The dotted black lines are the radial slits at the flanks and centre of the CME. Top to bottom: Total magnetic field strength (A), density (B), plasma-β (C), total pressure (D), temperature (E), and solar wind speed (F). The colour scale is shown in the log-scale to increase the contrast of details.
