Fig. 10

Fig. 10 Refer to the following caption and surrounding text.

Download original image

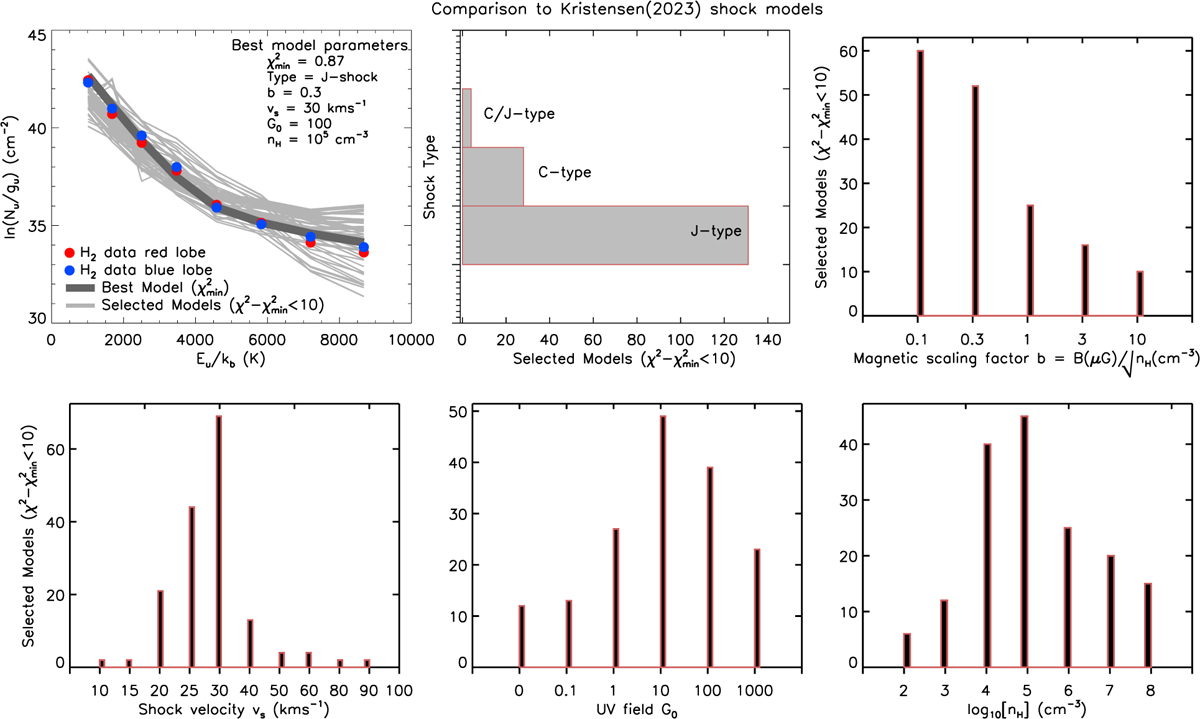

Top left: extinction-corrected H2 rotational lines vs. Kristensen et al. (2023) shock models. The best model with χmin2Mathematical equation: ${\chi^2_{\rm{min}}}$ is shown in solid dark gray lines with its parameters displayed. The selected models with χ2χmin2<10Mathematical equation: ${\chi^2 - \chi^2_{\rm{min}}} < 10$ are overplotted with light gray lines. Subsequent panels show the histogram distribution of key model parameters (shock type, magnetic scaling parameter, shock velocity, external UV field, and pre-shock density) that determine the prevailing shock condition.
