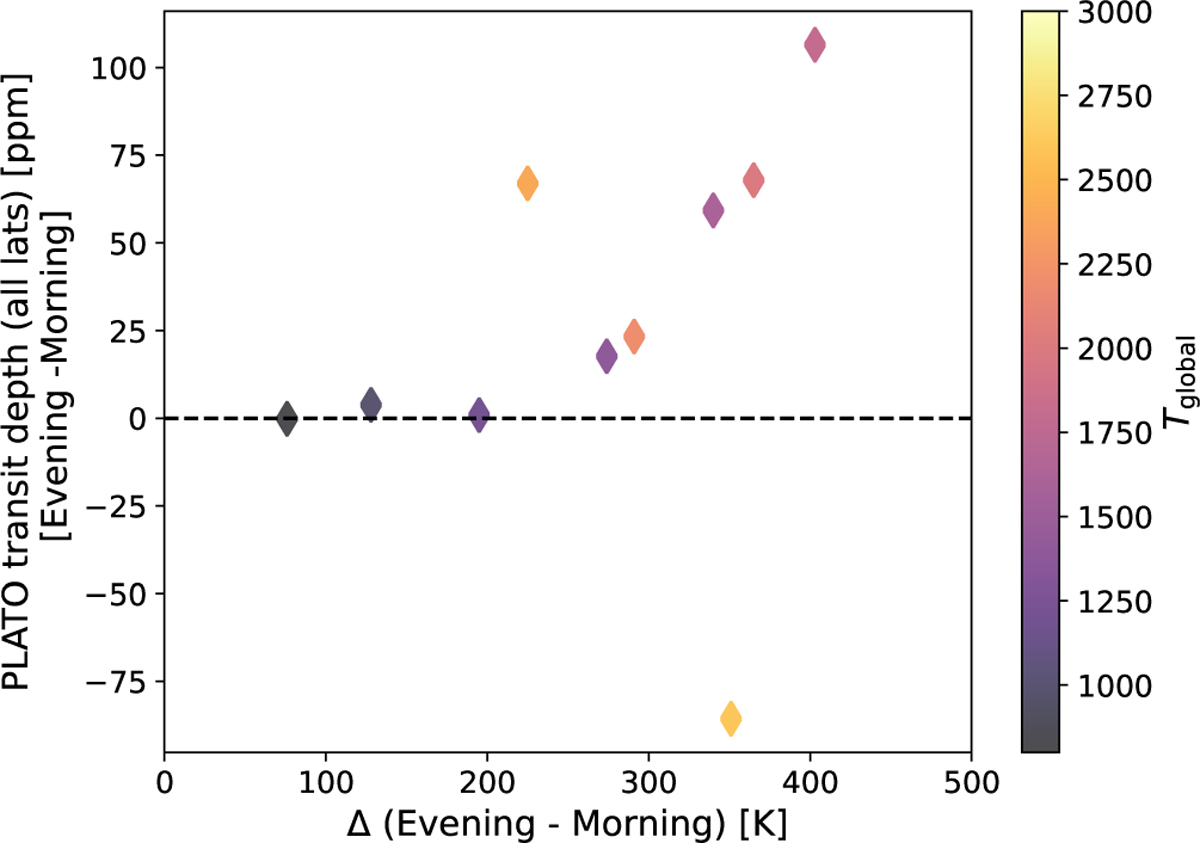

Fig. 20

Download original image
Transit asymmetry trend with global temperature. PLATO white band transit depth asymmetries versus evening to morning temperature differences at pgas = 10−3 bar for tidally locked planets with Tglobal = 800 K… 2600 K orbiting a G host star for a cloud scenario with cloud mass load, ρg/ρd(z) scaled by 0.01 for atmospheric layers, where 〈a〉 < 0.1 μm. Both properties are latitudinally averaged.
