Fig. 3

Fig. 3 Refer to the following caption and surrounding text.

Download original image

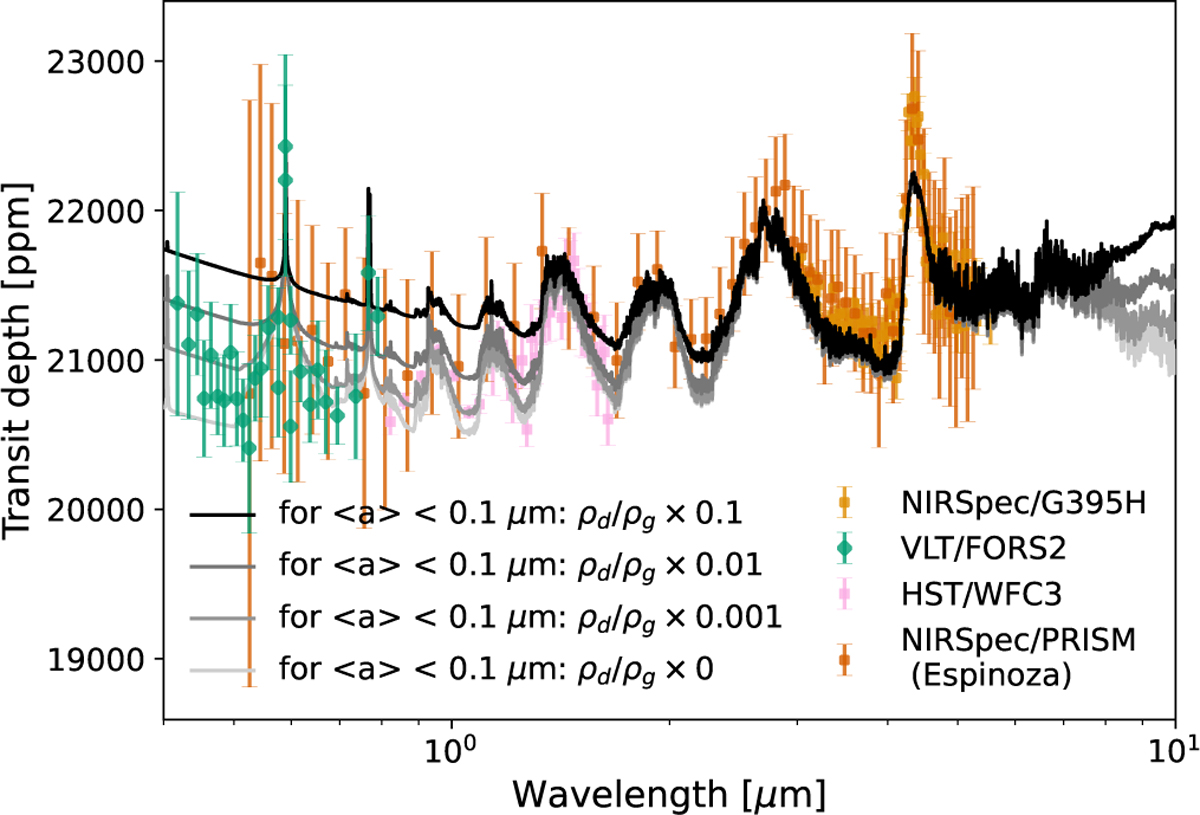

WASP-39b transmission spectra and calculations with different cloud mass load. Data are from JWST (orange), HST (magenta) and VLT (green) shown in comparison to Fe-free cloud scenarios with different cloud mass loads, ρgd(z), in atmospheric layers where 〈a〉 < 0.1 μm (middle gray: 10−3ρg/ρd(z), dark gray: 10−2ρgd(z), black: 0.1ρgd(z)). The light gray line depicts the cloud-free case in the upper atmosphere. The models with Fe-free cloud materials and a reduced cloud mass load fit the whole wavelength range well.
