Fig. 15

Fig. 15 Refer to the following caption and surrounding text.

Download original image

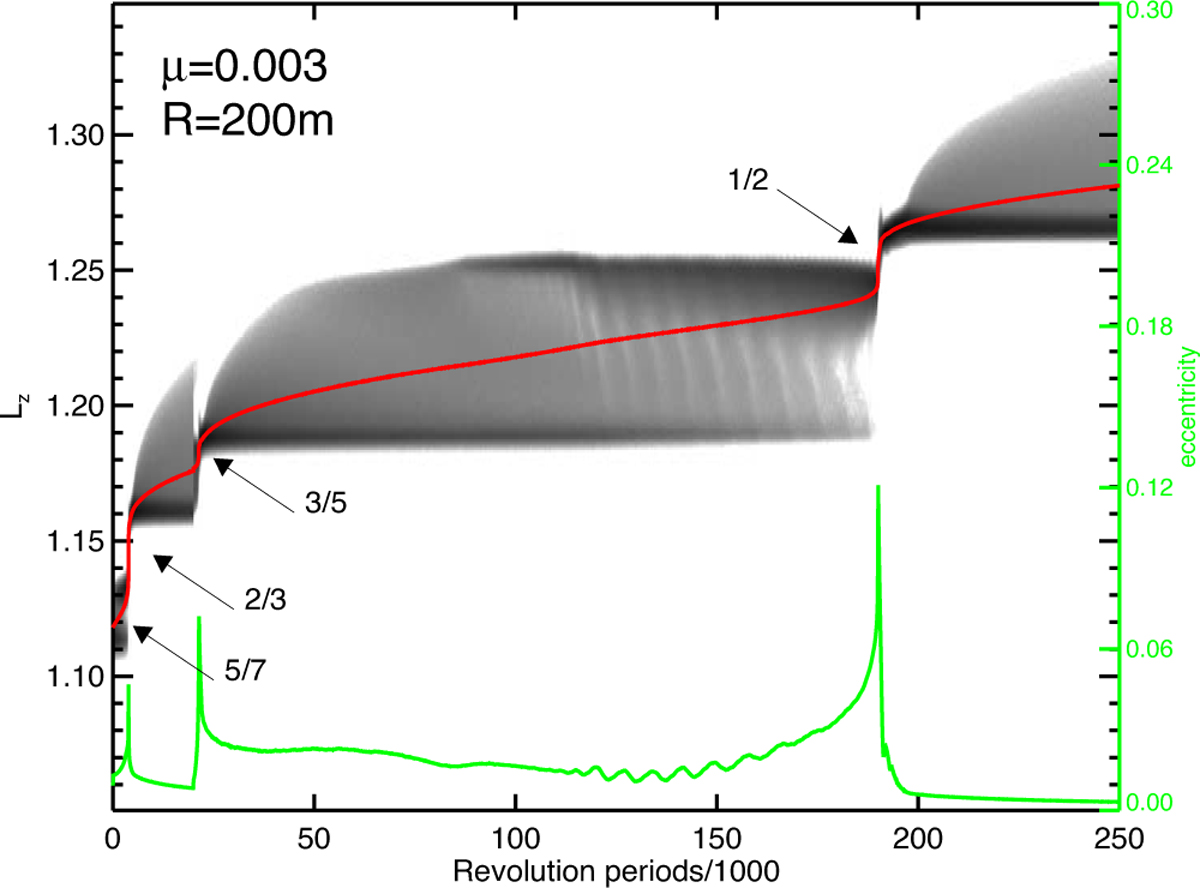

Time evolution of the vertical angular momentum Lz of particles that cross various resonances. The simulation contains 7500 particles with radius R = 0.001 (corresponding to 200 m in case of Chariklo), perturbed by a mass anomaly µ = 0.003. The ring starts near the 5/7 SOR and is pushed outward by a positive torque which takes it through the 2/3, 3/5, and 1/2 SORs. The red curve is the mean value of Lz. The green curve shows the mean eccentricity of the particles.
