Fig. 12
Download original image

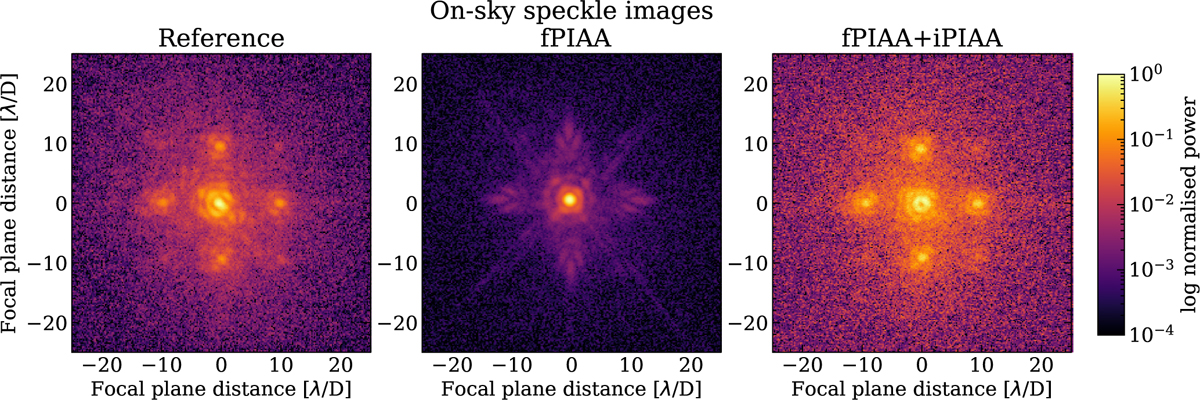

Examples of on-sky focal plane images with artificial DM speckles at 10 λ/D separation for the following: the reference (left panel; only bump mask and Lyot stop in the beam), fPIAA (central panel; bump mask, Lyot stop, and the forward PIAA lenses set in the beam), and fPIAA+iPIAA (right panel; bump mask, Lyot stop, and both forward and inverse PIAA lenses sets in the beam). Mind that in the right-most panel the focal plane mask is also in the beam. The inverse PIAA lenses restore the round shape of the off-axis speckles.
