Fig. 5
Download original image

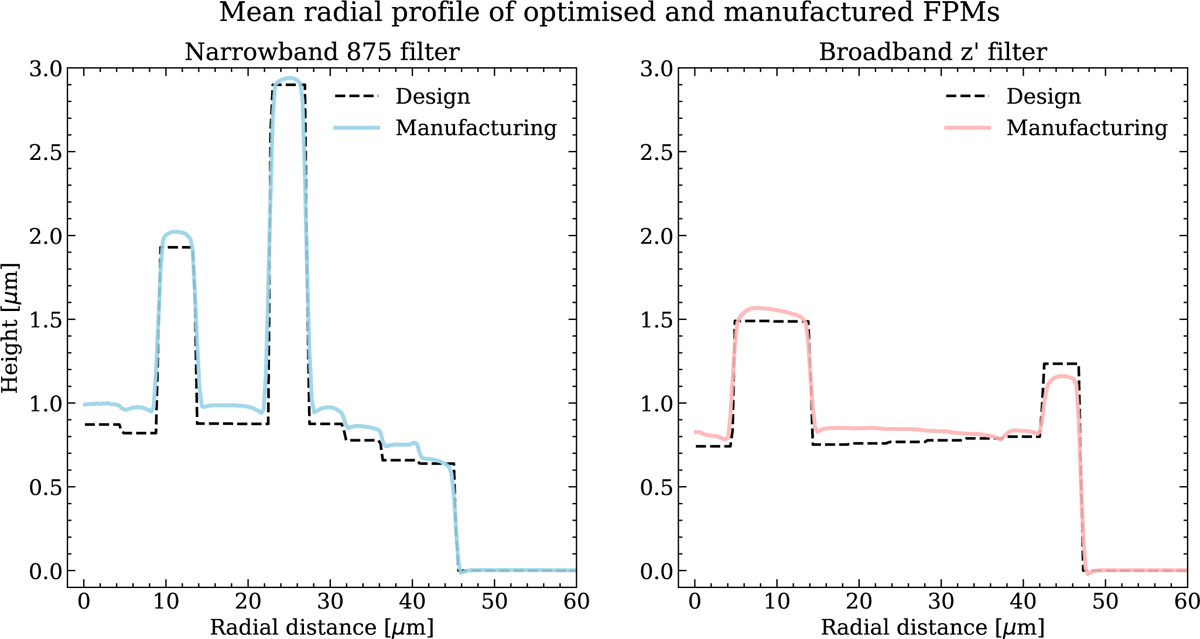

Mean radial profile of optimised and manufactured FPMs, for the narrowband 875 filter on the left, and for the broadband z’ filter on the right. In both panels, the dashed black line (design) shows the mask design’s radial profile, and the solid coloured line (manufacturing) shows the measured radial profile of the manufactured mask.
