Fig. D.2
Download original image

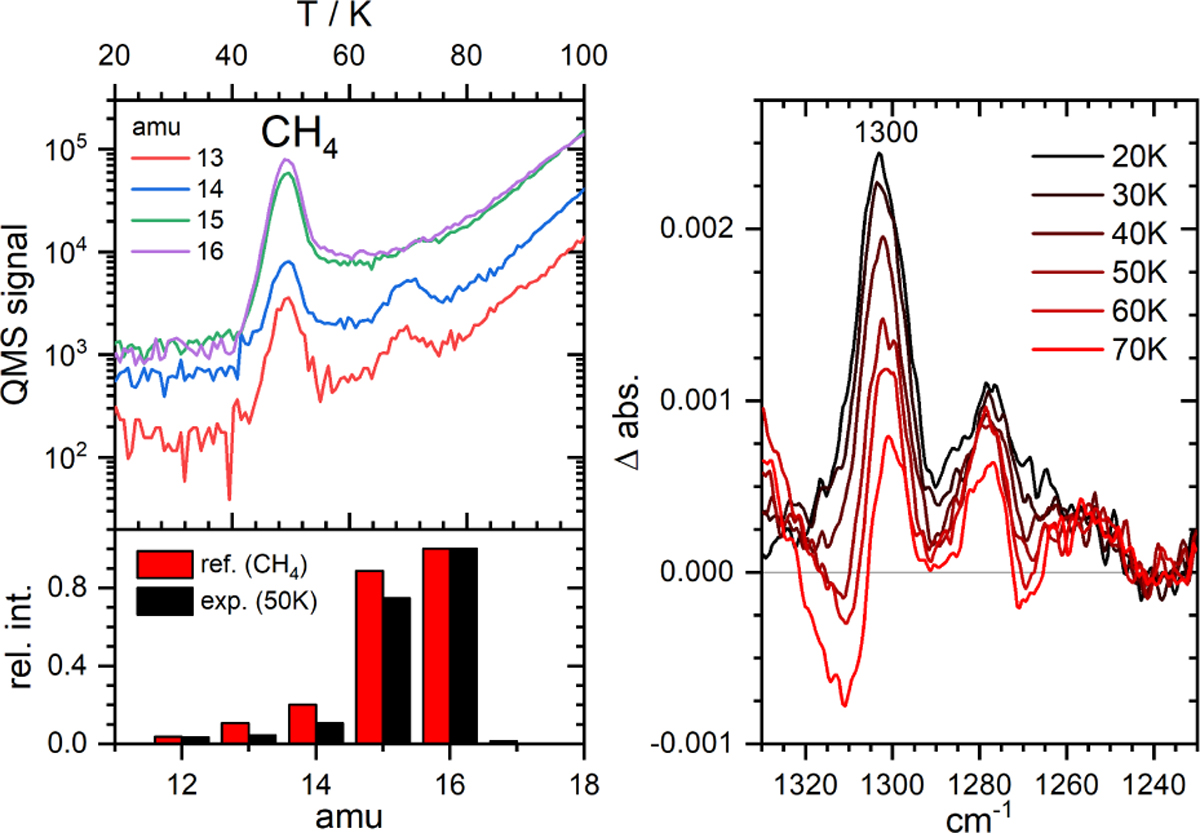

TPD signatures of methane formation in experiment G, in which the most CH4 was observed. On the left, relevant mass channels are shown and compared to the reference mass spectrum in the NIST database. On the right, adjusted difference spectra are shown at several temperatures, indicating the changes in peak intensity.
