Fig. 10.

Fig. 10. Refer to the following caption and surrounding text.

Download original image

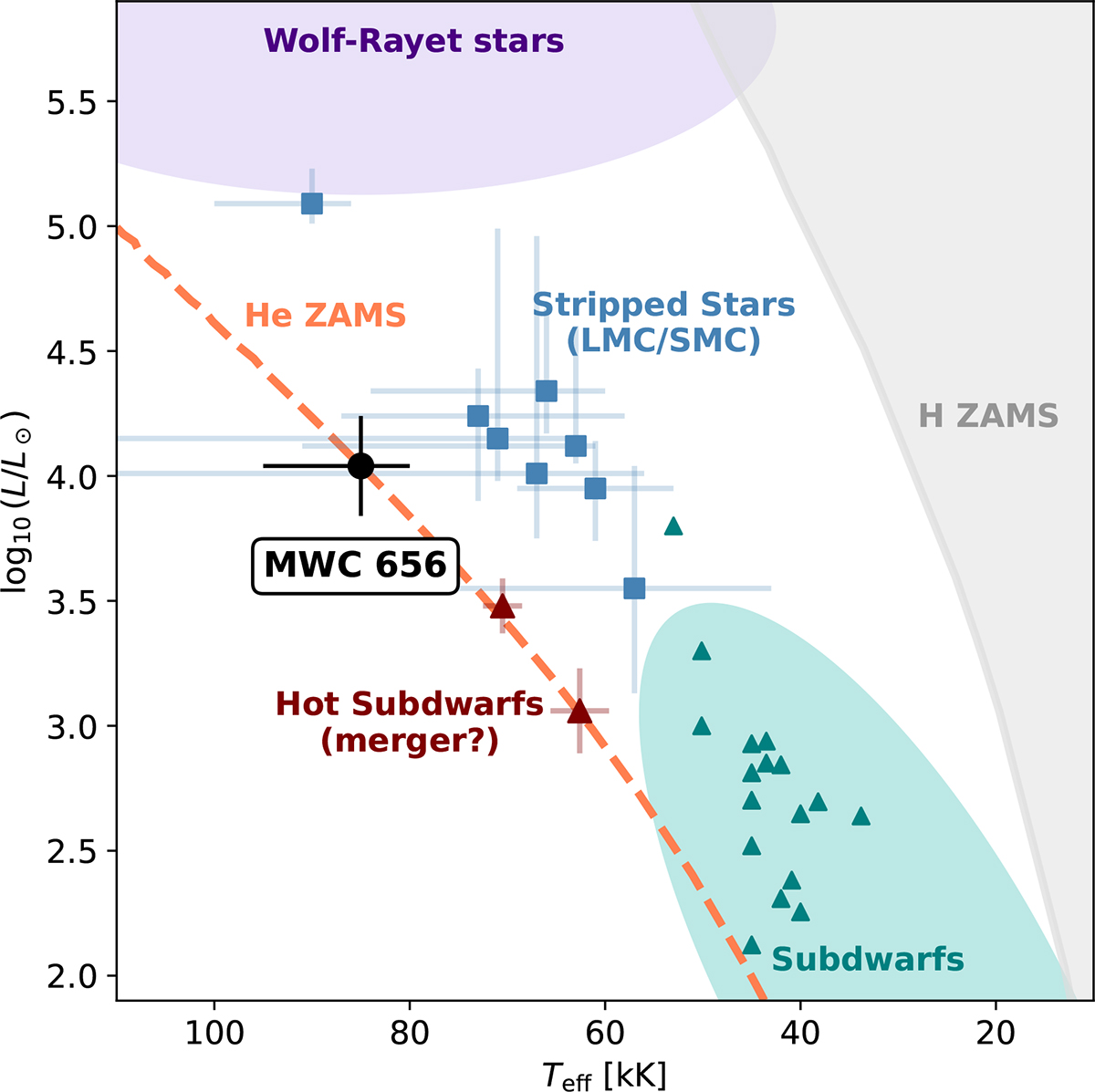

Hertzsprung–Russell diagram showing the inferred stellar parameters of the MWC 656 companion in comparison to known stripped stars. The lower-mass subdwarf sample (green; Wang et al. 2021; Peters et al. 2013, 2016; Mourard et al. 2015; Klement et al. 2022), two hot subdwarfs and merger product candidates (maroon; Krtička et al. 2024), intermediate-mass stripped stars in the Magellanic clouds (blue; Götberg et al. 2023), and the companion in MWC 656 (black; T eff = 85 5 + 10 Mathematical equation: $ T_{\mathrm{eff}} = 85^{+10}_{-5}\, $kK, log L/L = 4.0 ± 0.2) occupy the region between the hydrogen ZAMS (grey) and the helium ZAMS (orange). Figure layout inspired by Götberg et al. (2023), their Fig. 8.
