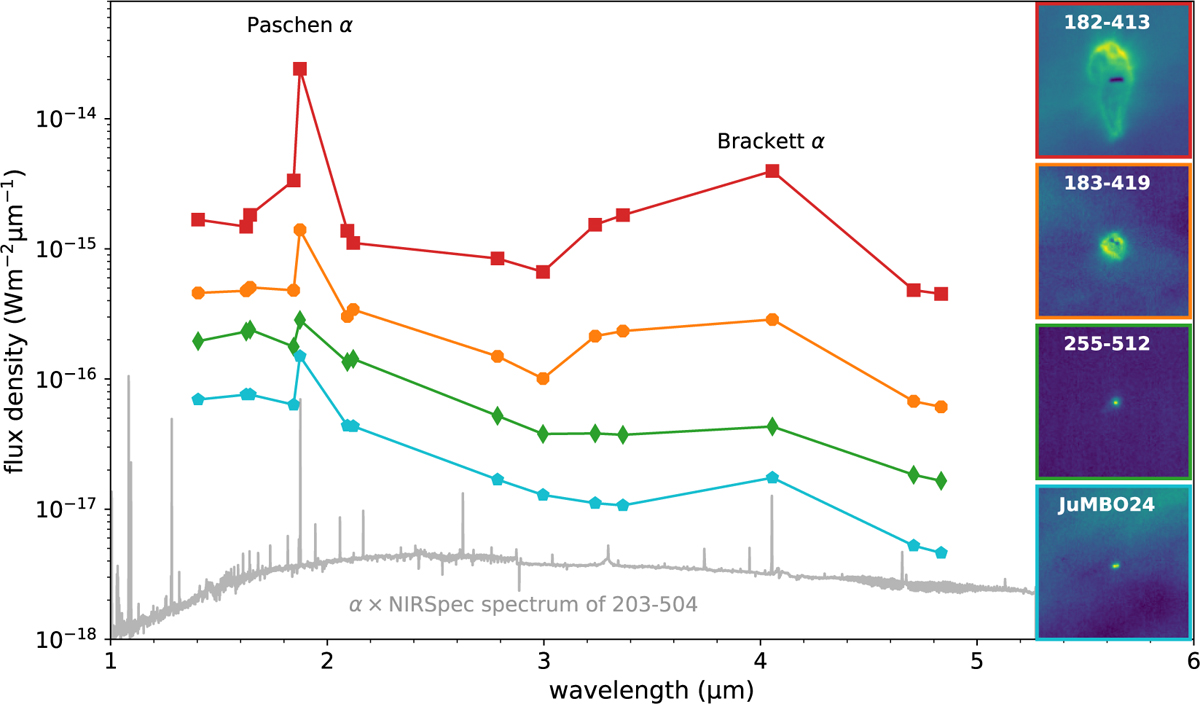

Fig. 7

Download original image
JWST-NIRcam SEDs from the PDRs4All program of three Orion Proplyds (182-413, 183–419, and 255–512) and of JuMBO24, and their corresponding 4′′ × 4′′ image in the F187N Pa α filter. The order, from top to bottom, of the SEDs and images are the same. In addition, the border of the images are in the colors of the corresponding SEDs. For clarity, the errors bars on the SEDs are not shown. The NIRSpec spectrum of 203–504, multiplied by a factor α=5 × 10−4 to avoid overlaps with the SEDs, is shown in gray.
