Fig. 8

Fig. 8 Refer to the following caption and surrounding text.

Download original image

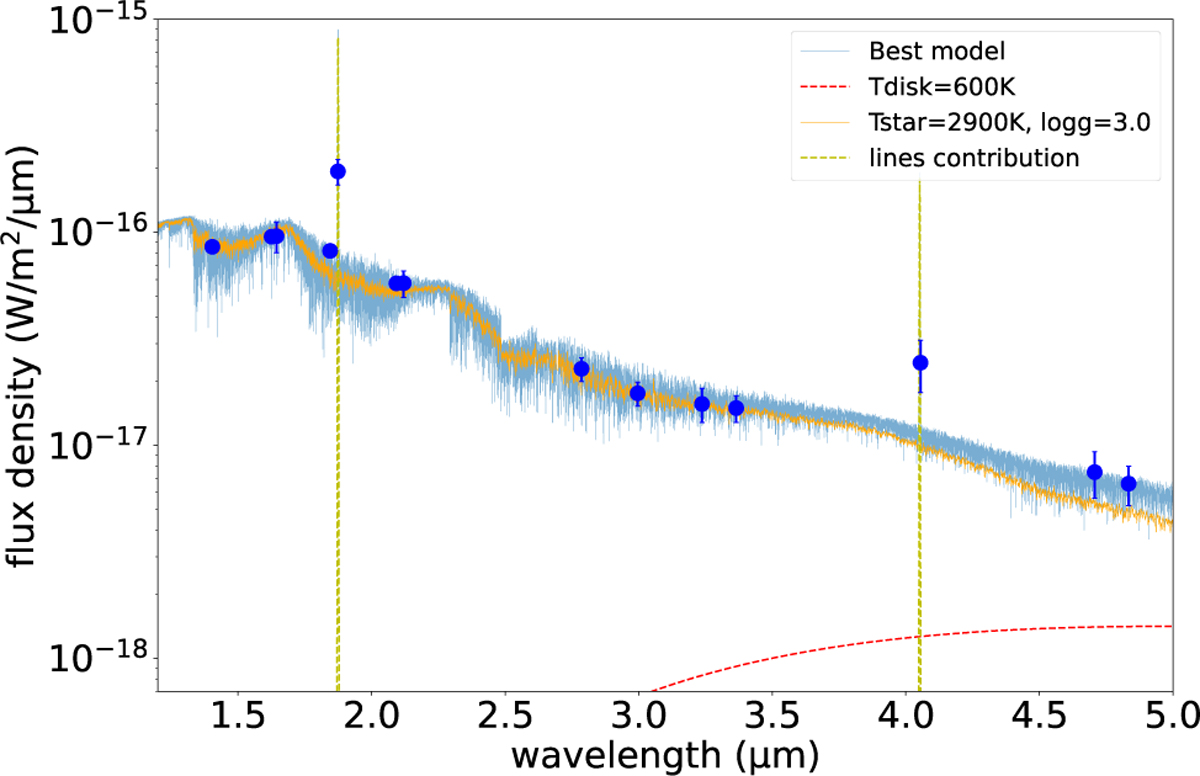

Best fit model of JuMBO 24 SED (in blue) obtained from the Phoenix model combined with a disk model. The dashed yellow lines are Gaussians with widths σ=10−3 μm, centered at 1.87 μm and 4.05 μm, respectively. The dashed red line corresponds to a blackbody at a temperature of Tdisk=600 K. The visual extinction is AV=1.5. The dashed orange lines corresponds to the spectrum of the central body given by the Phoenix model for Teff=2900 K, log g=3.0. The blue dots correspond to the JWST photometric points for JuMBO24.
