Fig. 2

Fig. 2 Refer to the following caption and surrounding text.

Download original image

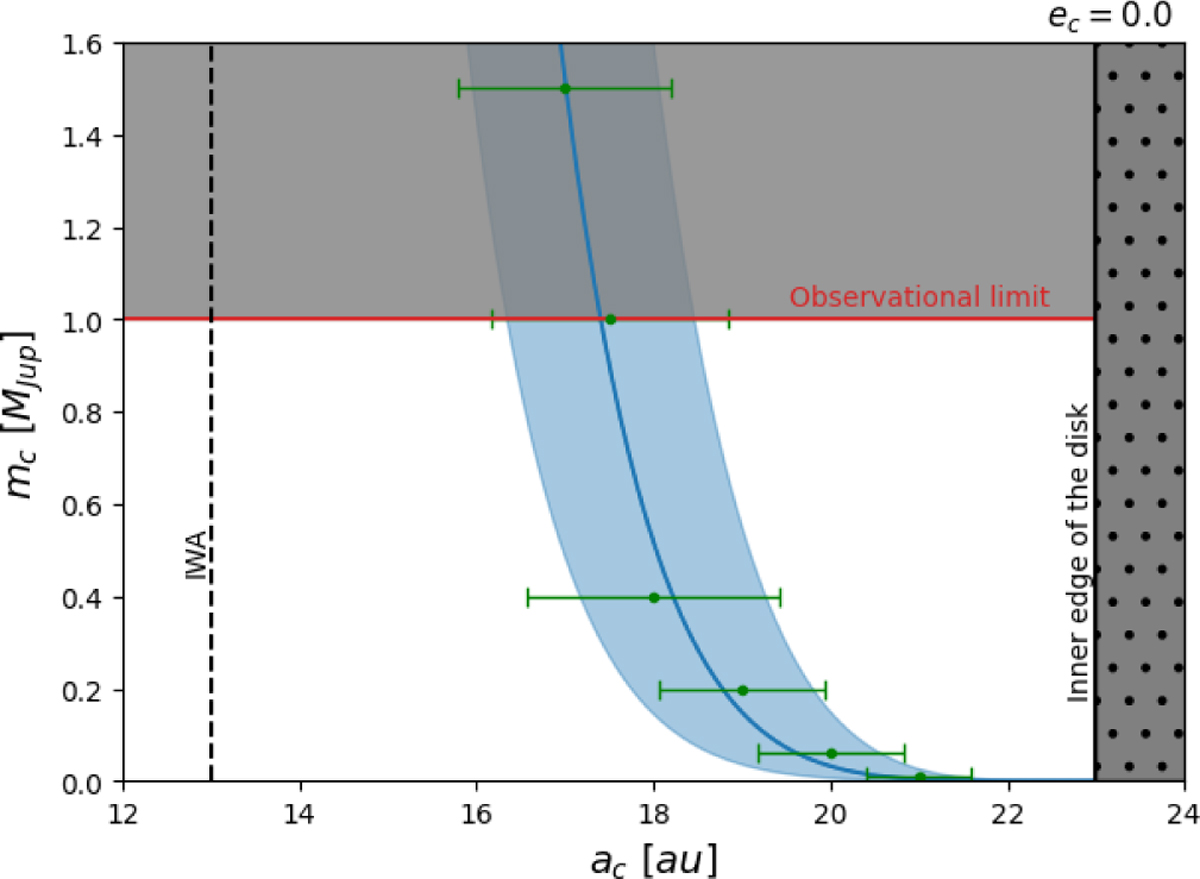

Combinations of the mass and initial semi-major axis of TWA 7 c within the observational limits that successfully reproduce the inner edge of the disk at 23 au. For several values of mc, the corresponding acceptable ranges of ac are shown in green. These ranges reflect the width of the inner edge of the disk as defined in Sect. 3.2. A power-law fit is overlaid in blue, accounting for the extent of each semi-majoraxis range. Shaded areas correspond to regions that are not dynamically accessible to TWA 7 c.
