Fig. 3.
Download original image

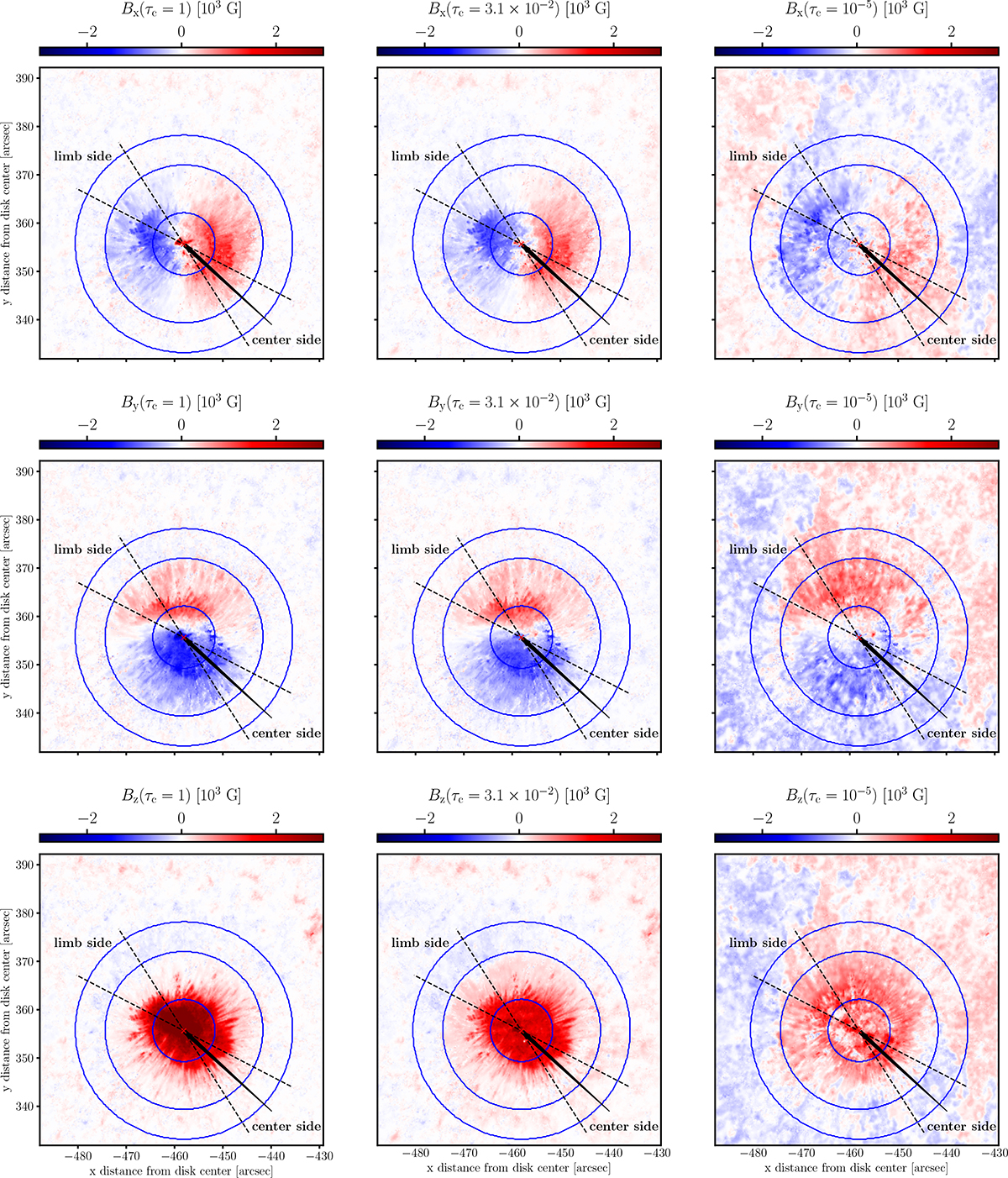

Inversion results. Similar to middle and bottom panels of Fig. 2 but displaying the Bx (top), By (middle) and Bz (bottom) components of the magnetic field in the local reference frame at three different optical depths.
