Fig. A.3

Fig. A.3 Refer to the following caption and surrounding text.

Download original image

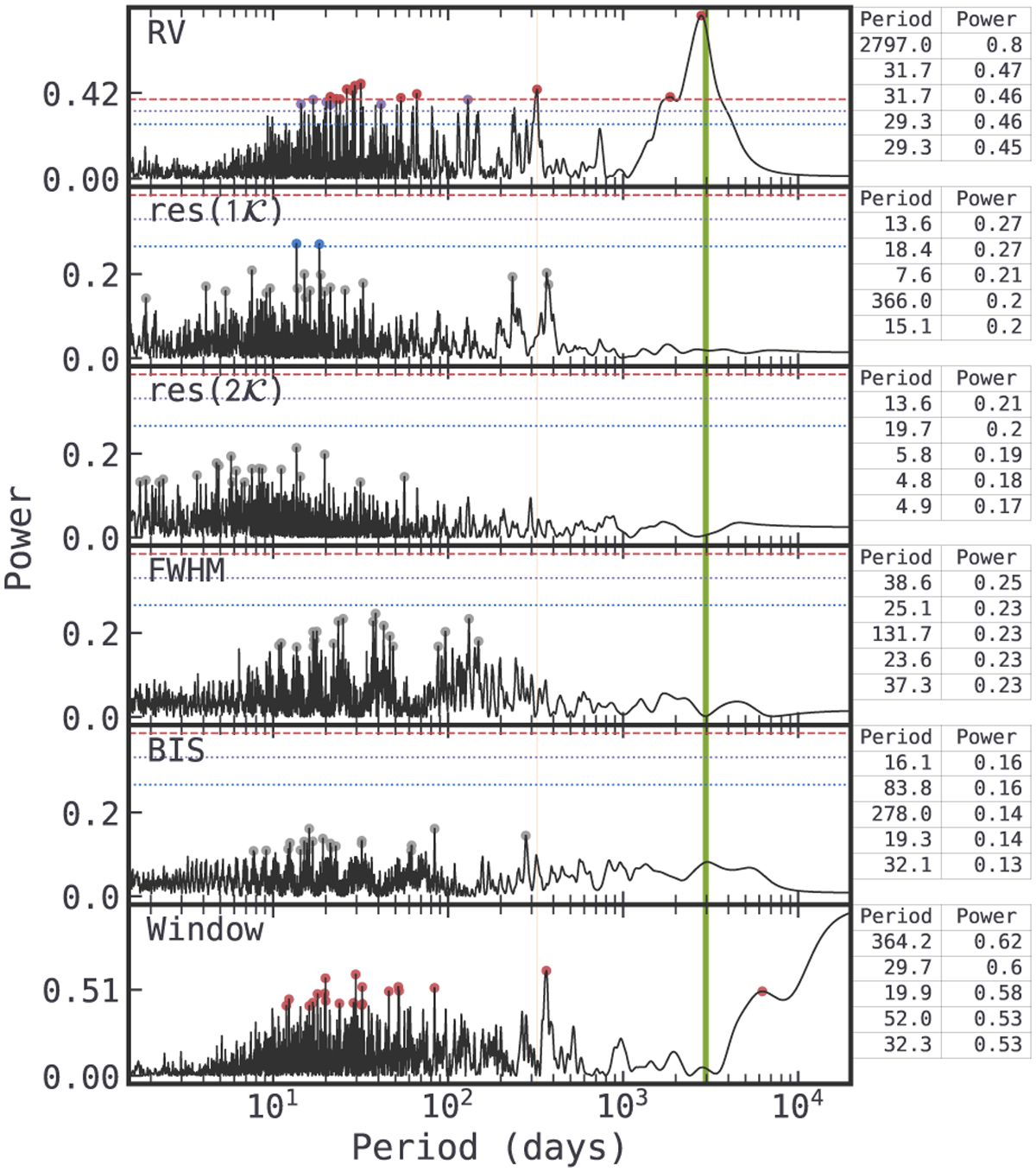

HIP98599 periodograms. Shown from top to bottom: RVs, model residuals, FWHM, BIS, and window function. FAP lines for 0.1, 1, and 10%, in dashed red, dotted purple, and dotted blue, respectively. Circle markers show the periods with greatest power, coloured by FAP region. Green vertical region shows P1 = 2656265616+40Mathematical equation: $2656^{+40}_{-16}$ d. On the right side there is a table summary of the five highest powers.
