Fig. 12

Fig. 12 Refer to the following caption and surrounding text.

Download original image

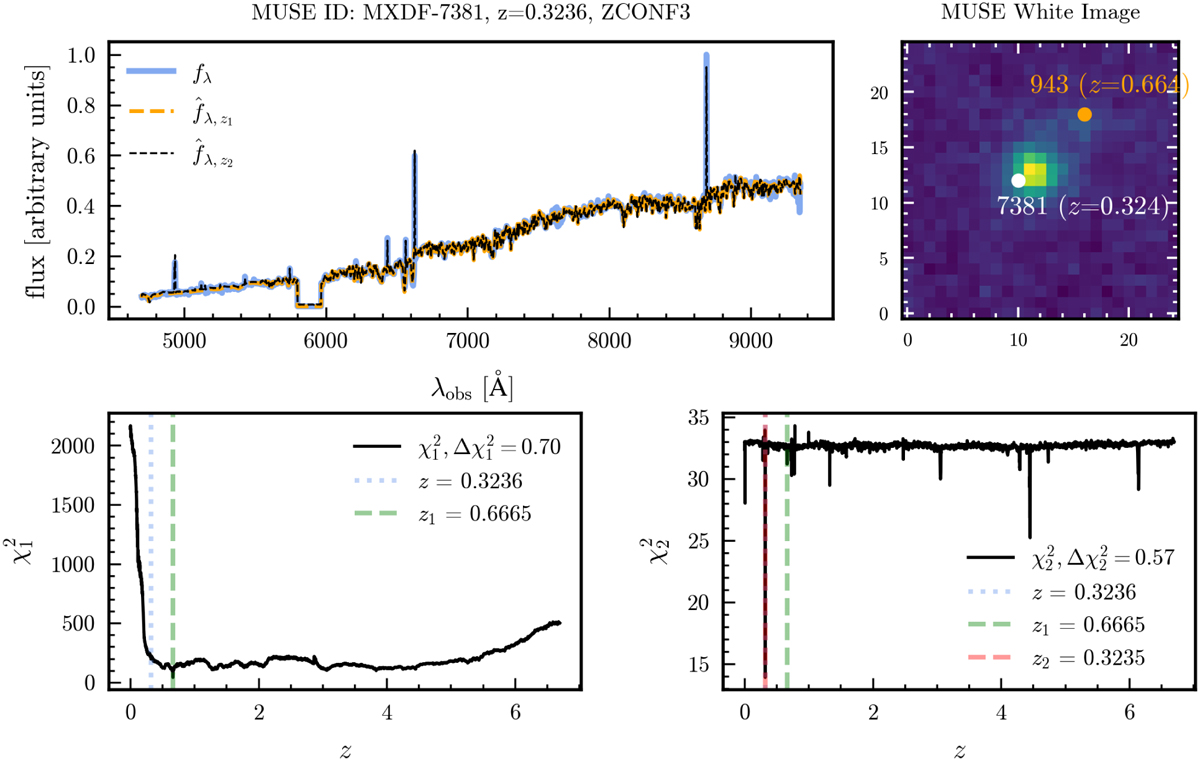

Deblending MXDF-7381. Top-left: spectrum of MXDF-7381 ( fλ) in blue, best fit at z1 (f^λ,z1Mathematical equation: ${{\hat f}_{\lambda ,{z_1}}}$) in orange, and the second reconstruction at z2 (f^λ,z2Mathematical equation: ${{\hat f}_{\lambda ,{z_2}}}$) as a dashed black line. Bottom: Obtained χ12Mathematical equation: $\chi _1^2$ and χ22Mathematical equation: $\chi _2^2$ curves from left to right. Here, χ12Mathematical equation: $\chi _1^2$ reveals a minimum at a redshift z1 = 0.6665 corresponding to the blending component, whereas χ22Mathematical equation: $\chi _2^2$ reveals a minimum at z2 = 0.3235 which corresponds to MXDF-7381 true redshift. Top-right: white image of MXDF-7381 with nearby sources, where we can see the presence of a close source, MXDF-943, with the blending redshift z1.
