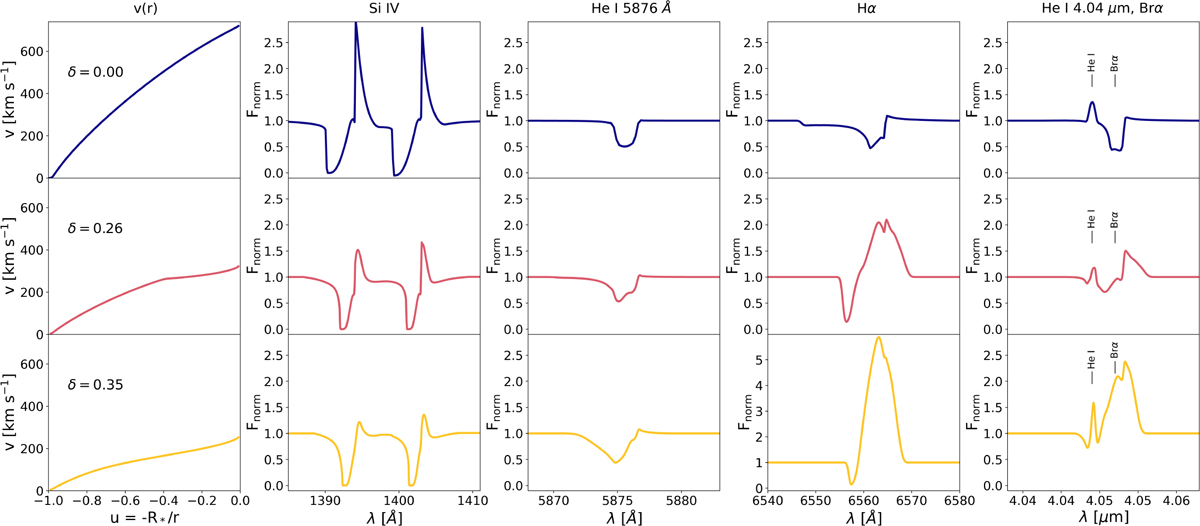

Fig. 4

Download original image
Synthetic line profiles computed for the three hydrodynamic wind regimes using the T19 model: the fast solution (δ = 0, top row), transition solution (δ = 0.26, middle row), and δ-slow solution (δ = 0.35, bottom row). The first column indicates the hydrodynamic solution obtained with ZEUS-3D, followed by the synthetic profiles for Si IV (second column), He I 5876 Å (third column), Hα (fourth column), and the He I + Brα blend around 4.05 µm (fifth column). The fast solution corresponds to Ṁ = 1.06 × 10−6 M⊙ yr−1 and v∞ = 720 km s−1; the solution in the transition region to Ṁ = 1.67 × 10−6 M⊙ yr−1 and v∞ = 322 km s−1; and the δ-slow solution to Ṁ = 2.35 × 10−6 M⊙ yr−1 and v∞ = 253 km s−1.
