Fig. 5

Fig. 5 Refer to the following caption and surrounding text.

Download original image

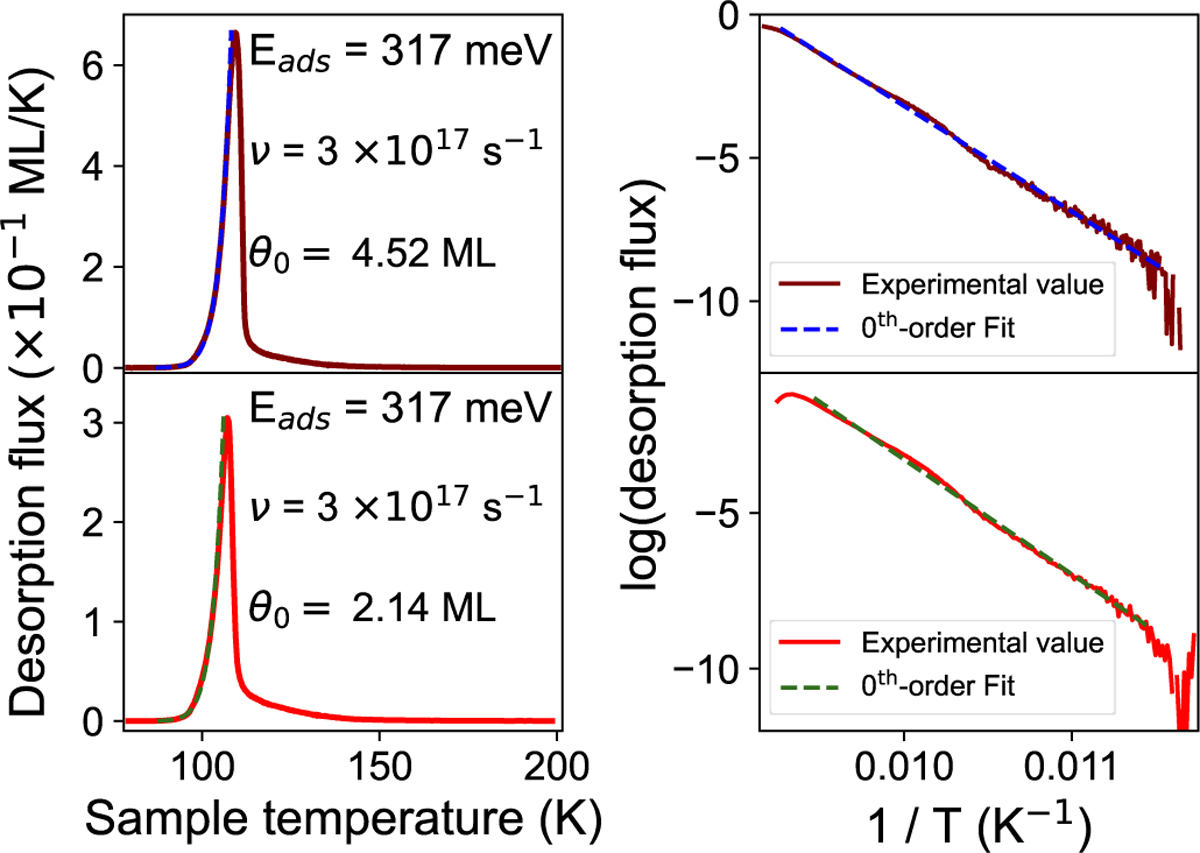

(Left) TPD curves of SO2 deposited at 80 K on gold at different coverages (brown curve, 4.52 ML; red curve, 2.14 ML) in the multilayer regime, together with the corresponding zeroth-order fits (dashed blue and green lines, respectively). (Right) Logarithm of the corresponding TPD curves as a function of the inverse sample temperature, with corresponding linear fits (dashed lines). The adsorption energy and preexponential factor for SO2 multilayer desorption are extracted from the slope and intercept of the linear regression.
