<A NAME="table"></A><p class="inset-old"><a href="/articles/aa/full_html/2009/27/aa12242-09/table1.html"><span class="bold">Table 1:</span></a>&#160;&#160;
A summary of measured intensity, calculated nonthermal velocity&nbsp;(<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img1.png"
 ALT="$\xi $">), flux ratio and electron density for the plume&nbsp;(P) and interplume&nbsp;(I-P) obtained from Fe  <SMALL>XII</SMALL> (<I>T</I><SUB><I>i</I></SUB>=1.3&nbsp;<IMG
 WIDTH="12" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\times $">
10<sup>6</sup>&nbsp;K) and Fe  <SMALL>XIII</SMALL> (<I>T</I><SUB><I>i</I></SUB>=1.6&nbsp;<IMG
 WIDTH="12" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\times $">
10<sup>6</sup>&nbsp;K) at different locations.</p>
<p>

<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="fig:densitymapfull">&#160;</A><!-- end Label--><A NAME="1185"></A><A NAME="figure1050"
 HREF="img32.png"><IMG
 WIDTH="143" HEIGHT="56" SRC="Timg32.png"
 ALT="\begin{figure}
\par\includegraphics[width=7.8cm,clip]{f6a.eps}\hspace*{1cm}
\includegraphics[width=3.8cm,clip]{f6b.eps}
\end{figure}"></A><!-- HTML Figure number: 6 --></td>
<td class="img-txt"><span class="bold">Figure 6:</span><p>

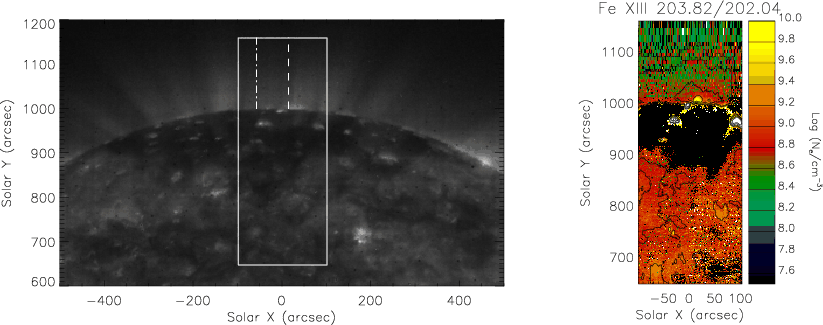

<I> The left panel</I> shows the EIT 171&nbsp;&#197; image with EIS&nbsp;field of view overplotted (square box) and plume and interplume chosen. <I> The right panel</I> shows the density map corresponding to the full EIS&nbsp;raster scan as recorded by Fe  <SMALL>XIII</SMALL> and the contours show the intensity.</p></td>
