<h2 class="sec">Online Material</h2>

<p>

 <A NAME="Tab1"></A><p class="inset-old"><a href="/articles/aa/full_html/2009/37/aa11436-08/table1.html"><span class="bold">Table 1:</span></a>&#160;&#160;
Log of spectroscopic observations of RS Oph.</p>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig1">&#160;</A><!-- end Label--><A NAME="1075"></A><A NAME="figure637"
 HREF="img37.png"><IMG
 WIDTH="101" HEIGHT="103" SRC="Timg37.png"
 ALT="\begin{figure}
\par\resizebox{9cm}{!}{\includegraphics{11436f01.eps}}
\end{figure}"></A><!-- HTML Figure number: 11 --></td>

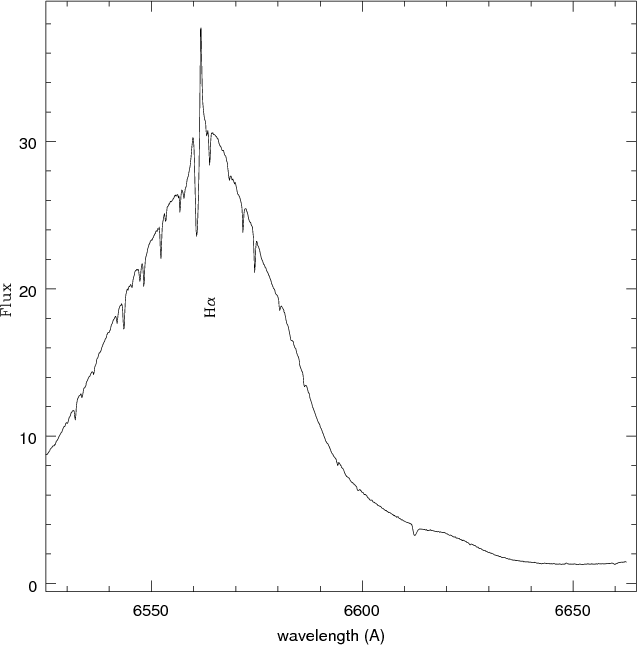

<td class="img-txt"><span class="bold">Figure 1:</span><p>
Profile of H<IMG
 WIDTH="12" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img3.png"
 ALT="$\alpha $">
on Feb.&nbsp;18. The unit of the ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=11&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig2">&#160;</A><!-- end Label--><A NAME="1077"></A><A NAME="figure645"
 HREF="img38.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg38.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f02.eps}}
\end{figure}"></A><!-- HTML Figure number: 12 --></td>

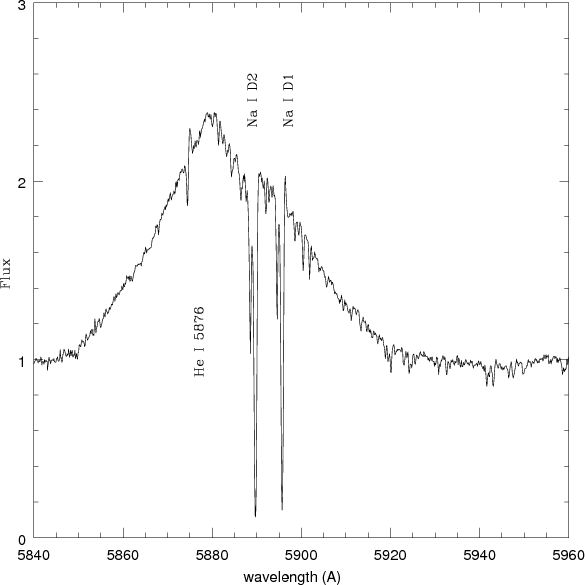

<td class="img-txt"><span class="bold">Figure 2:</span><p>
Profile of He&nbsp;I&nbsp;5876 on Feb.&nbsp;18. The unit of the ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=12&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig3">&#160;</A><!-- end Label--><A NAME="1079"></A><A NAME="figure653"
 HREF="img39.png"><IMG
 WIDTH="101" HEIGHT="101" SRC="Timg39.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f03.eps}}
\end{figure}"></A><!-- HTML Figure number: 13 --></td>
<td class="img-txt"><span class="bold">Figure 3:</span><p>

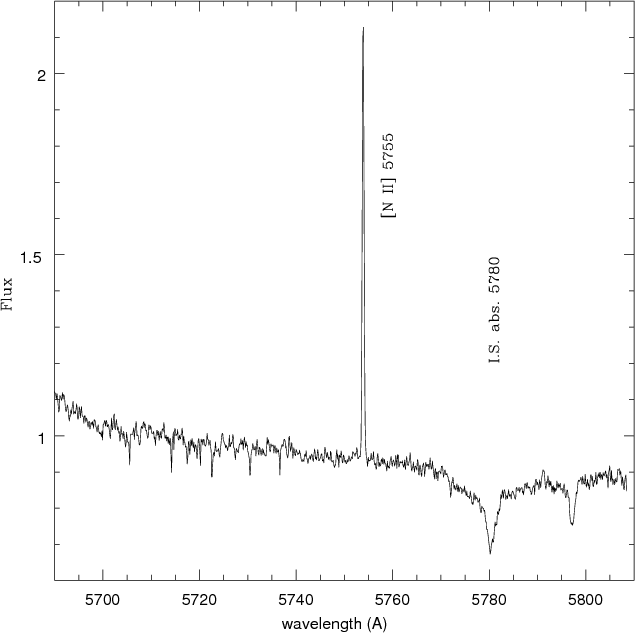

Profile of [N&nbsp;II] 5755 on Feb. 18. The unit of the ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=13&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig4">&#160;</A><!-- end Label--><A NAME="1081"></A><A NAME="figure661"
 HREF="img40.png"><IMG
 WIDTH="101" HEIGHT="101" SRC="Timg40.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f04.eps}}
\end{figure}"></A><!-- HTML Figure number: 14 --></td>
<td class="img-txt"><span class="bold">Figure 4:</span><p>

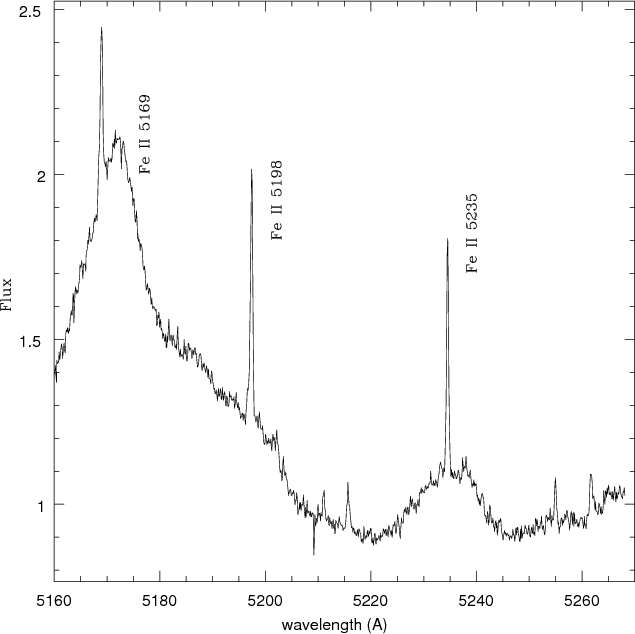

Profiles of Fe&nbsp;II lines on Feb.&nbsp;18. The unit of the ordinate is 10<sup>-11</sup>erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=14&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig5">&#160;</A><!-- end Label--><A NAME="1083"></A><A NAME="figure669"
 HREF="img41.png"><IMG
 WIDTH="92" HEIGHT="93" SRC="Timg41.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f05.eps}}
\end{figure}"></A><!-- HTML Figure number: 15 --></td>

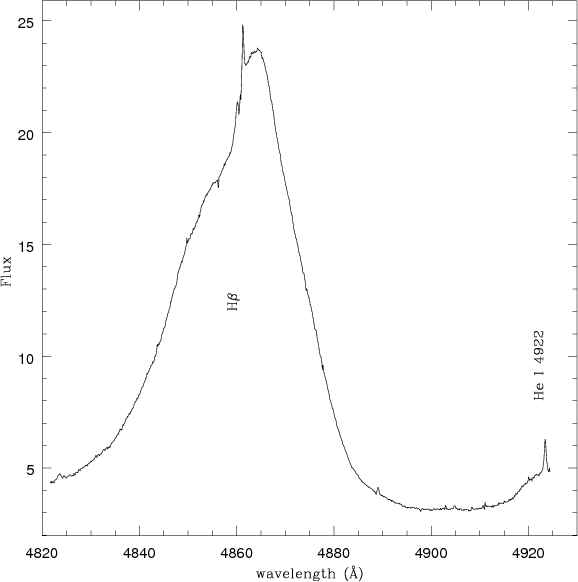

<td class="img-txt"><span class="bold">Figure 5:</span><p>
Profile of H<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\beta $">
on Feb. 19. The unit of the ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=15&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig6">&#160;</A><!-- end Label--><A NAME="1085"></A><A NAME="figure677"
 HREF="img42.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg42.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f06.eps}} %\end{figure}"></A><!-- HTML Figure number: 16 --></td>

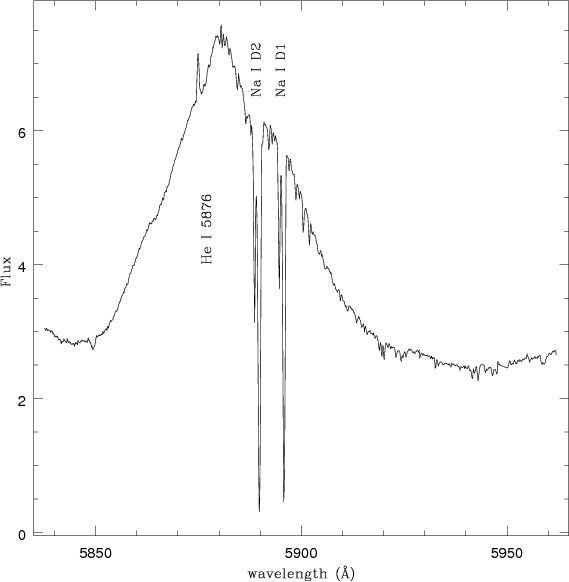

<td class="img-txt"><span class="bold">Figure 6:</span><p>
Profile of He&nbsp;I&nbsp;5876 on Feb. 19. The unit of the ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=16&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig7">&#160;</A><!-- end Label--><A NAME="1087"></A><A NAME="figure685"
 HREF="img43.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg43.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f07.eps}} %\end{figure}"></A><!-- HTML Figure number: 17 --></td>

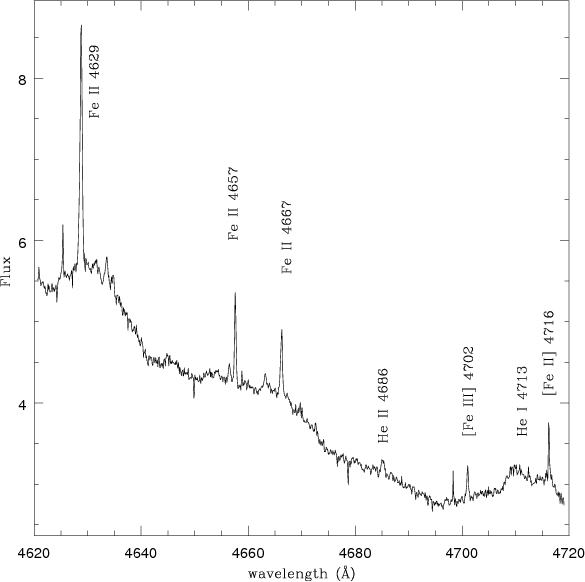

<td class="img-txt"><span class="bold">Figure 7:</span><p>
High dispersion spectrum on Feb. 19: 4620-4720&#197;. The unit of  ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=17&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig8">&#160;</A><!-- end Label--><A NAME="1089"></A><A NAME="figure693"
 HREF="img44.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg44.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f08.eps}} %\end{figure}"></A><!-- HTML Figure number: 18 --></td>

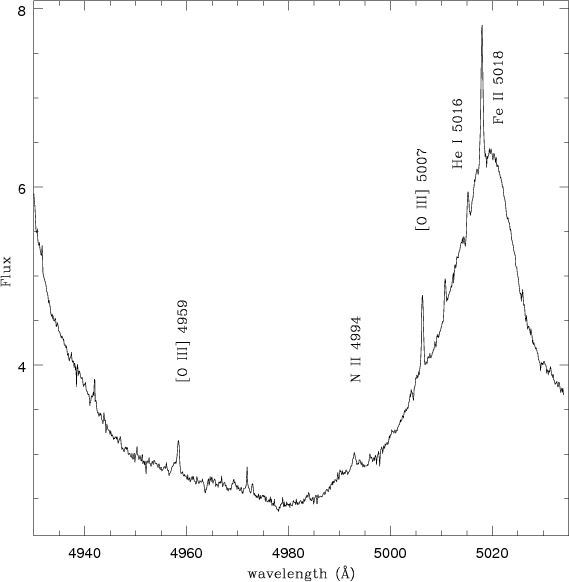

<td class="img-txt"><span class="bold">Figure 8:</span><p>
High dispersion spectrum on Feb. 19: 4930-5030&#197;. The unit of  ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=18&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig9">&#160;</A><!-- end Label--><A NAME="1091"></A><A NAME="figure701"
 HREF="img45.png"><IMG
 WIDTH="95" HEIGHT="93" SRC="Timg45.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f09.eps}} %\end{figure}"></A><!-- HTML Figure number: 19 --></td>

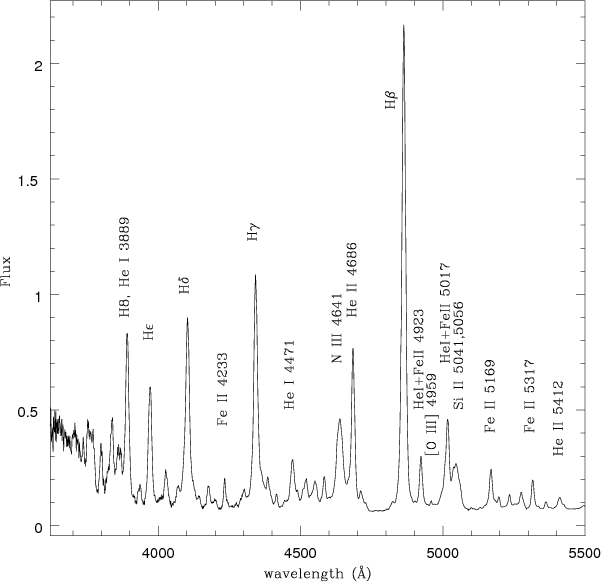

<td class="img-txt"><span class="bold">Figure 9:</span><p>
Medium dispersion blue spectrum on March 6. The unit of ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=19&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig10">&#160;</A><!-- end Label--><A NAME="1093"></A><A NAME="figure709"
 HREF="img46.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg46.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f10.eps}}
\end{figure}"></A><!-- HTML Figure number: 20 --></td>

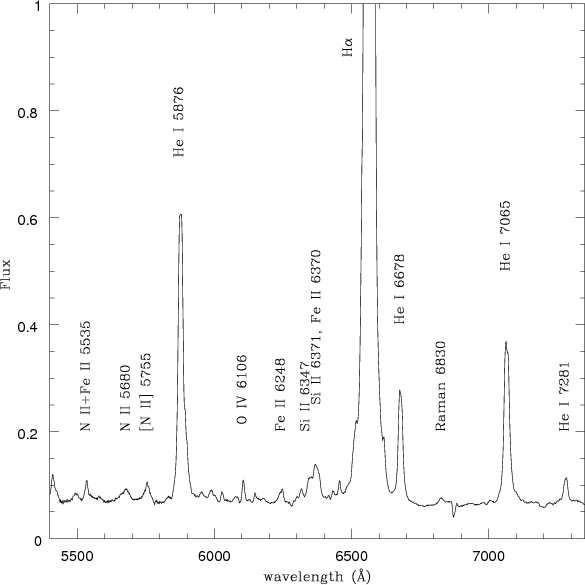

<td class="img-txt"><span class="bold">Figure 10:</span><p>
Medium dispersion red spectrum on March 6. The unit of ordinate is 10<sup>-11</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=20&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig11">&#160;</A><!-- end Label--><A NAME="1095"></A><A NAME="figure717"
 HREF="img47.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg47.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f11.eps}} %
\end{figure}"></A><!-- HTML Figure number: 21 --></td>

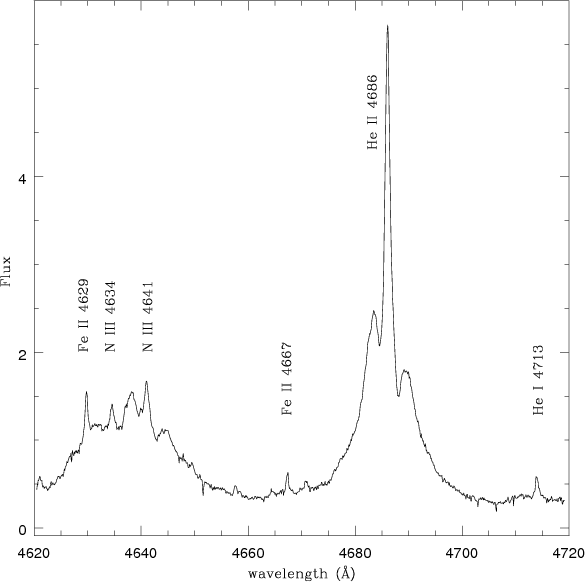

<td class="img-txt"><span class="bold">Figure 11:</span><p>
High dispersion spectrum on March 20: 4620-4720&nbsp;&#197;. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=21&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig12">&#160;</A><!-- end Label--><A NAME="1097"></A><A NAME="figure725"
 HREF="img48.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg48.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f12.eps}} %\end{figure}"></A><!-- HTML Figure number: 22 --></td>
<td class="img-txt"><span class="bold">Figure 12:</span><p>

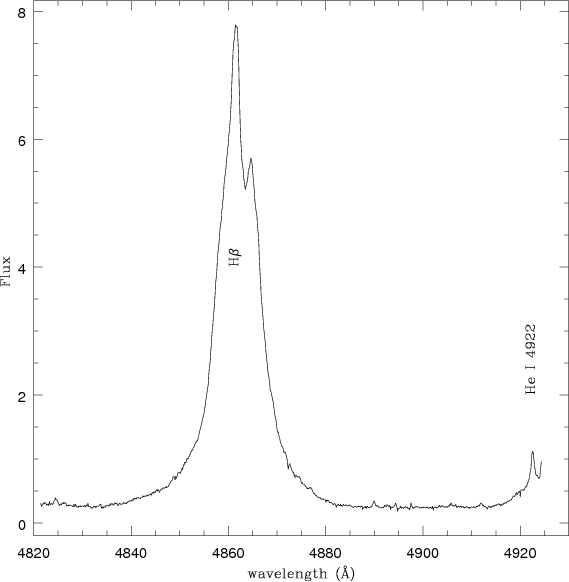

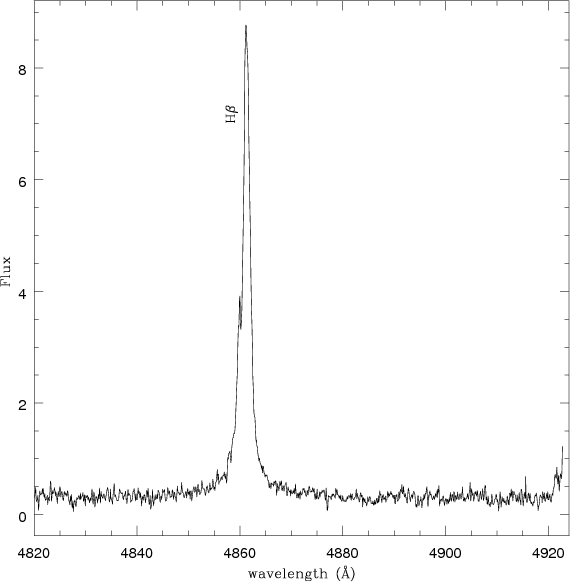

Profile of H<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\beta $">
on March 20. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=22&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig13">&#160;</A><!-- end Label--><A NAME="1099"></A><A NAME="figure733"
 HREF="img49.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg49.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f13.eps}} %\end{figure}"></A><!-- HTML Figure number: 23 --></td>

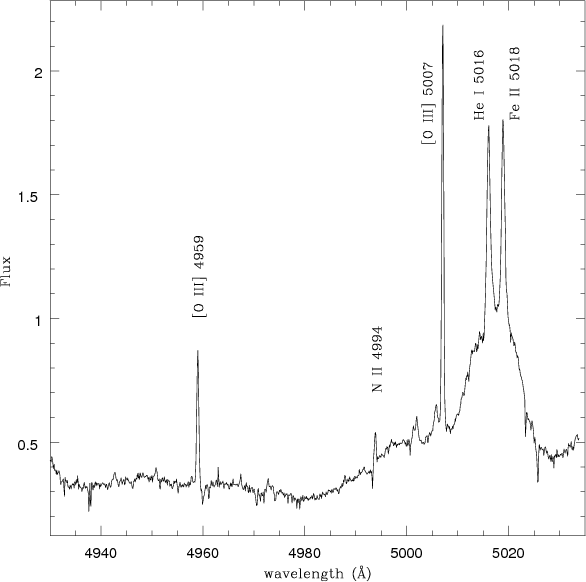

<td class="img-txt"><span class="bold">Figure 13:</span><p>

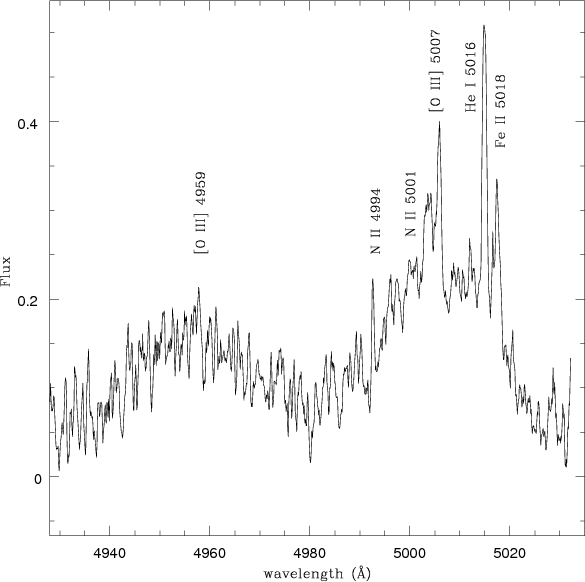

High dispersion spectrum on March 20: 4930-5030&#197;. The unit of  ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=23&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig14">&#160;</A><!-- end Label--><A NAME="1101"></A><A NAME="figure741"
 HREF="img50.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg50.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f14.eps}} %\end{figure}"></A><!-- HTML Figure number: 24 --></td>

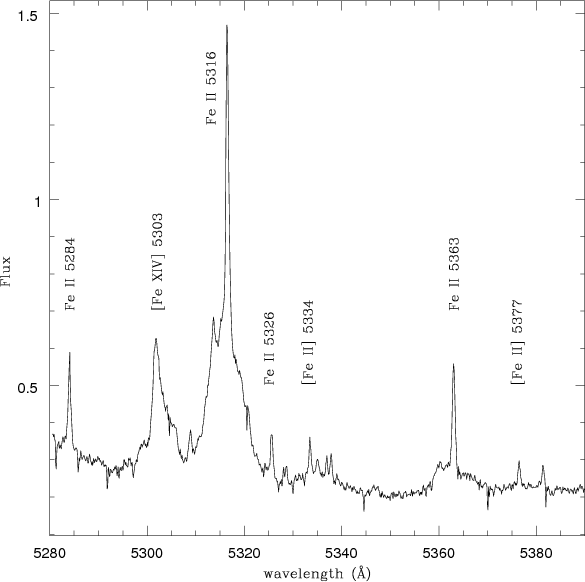

<td class="img-txt"><span class="bold">Figure 14:</span><p>
High dispersion spectrum on March 20: 5280-5390&#197;. The unit of  ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=24&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig15">&#160;</A><!-- end Label--><A NAME="1103"></A><A NAME="figure749"
 HREF="img51.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg51.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f15.eps}} %\end{figure}"></A><!-- HTML Figure number: 25 --></td>
<td class="img-txt"><span class="bold">Figure 15:</span><p>

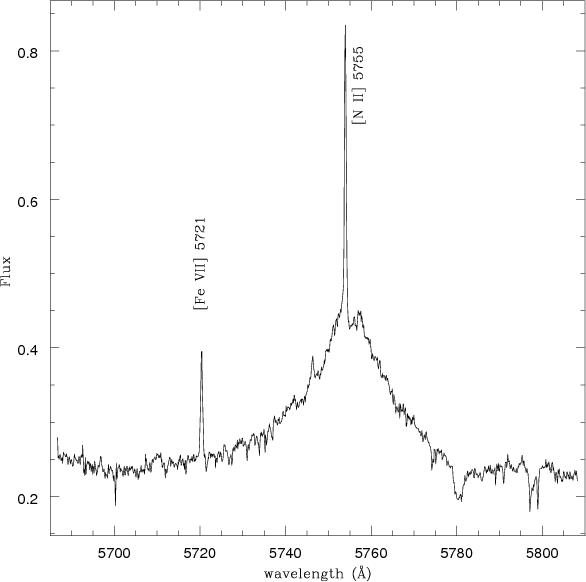

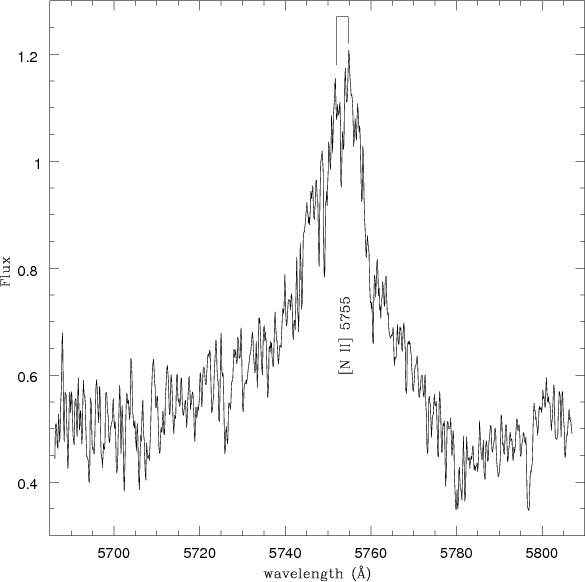

High dispersion spectrum on March 20: 5690-5810&#197;. The unit of  ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=25&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig16">&#160;</A><!-- end Label--><A NAME="1105"></A><A NAME="figure757"
 HREF="img52.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg52.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f16.eps}} %\end{figure}"></A><!-- HTML Figure number: 26 --></td>

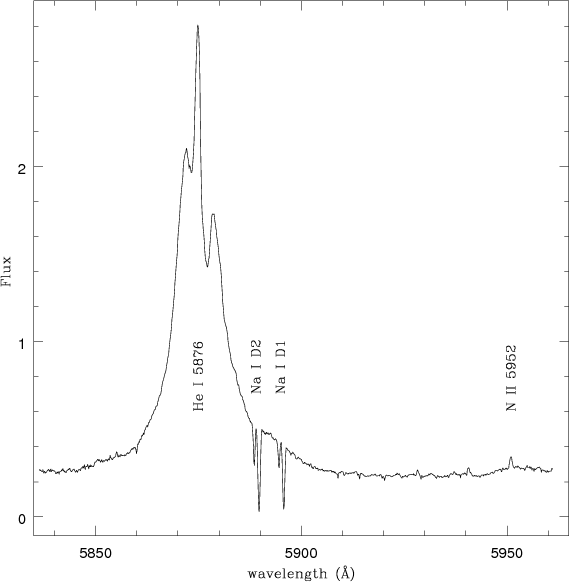

<td class="img-txt"><span class="bold">Figure 16:</span><p>
Profile of He&nbsp;I&nbsp;5876 on March 20. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=26&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig17">&#160;</A><!-- end Label--><A NAME="1107"></A><A NAME="figure765"
 HREF="img53.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg53.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f17.eps}} %\end{figure}"></A><!-- HTML Figure number: 27 --></td>
<td class="img-txt"><span class="bold">Figure 17:</span><p>

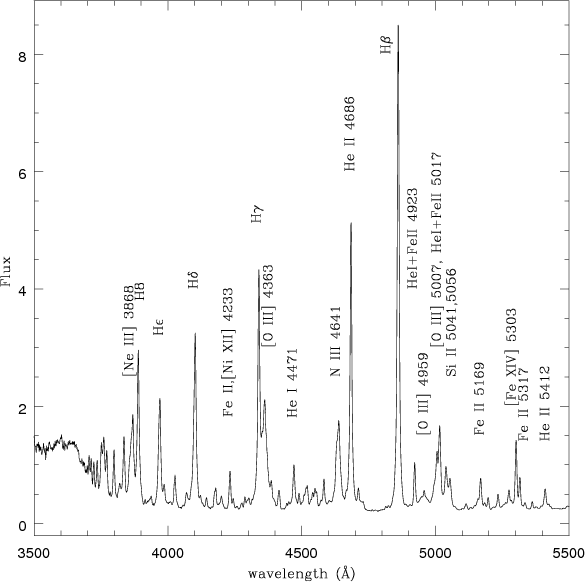

Medium dispersion blue spectrum on April 4. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=27&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig18">&#160;</A><!-- end Label--><A NAME="1109"></A><A NAME="figure773"
 HREF="img54.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg54.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f18.eps}} %\end{figure}"></A><!-- HTML Figure number: 28 --></td>

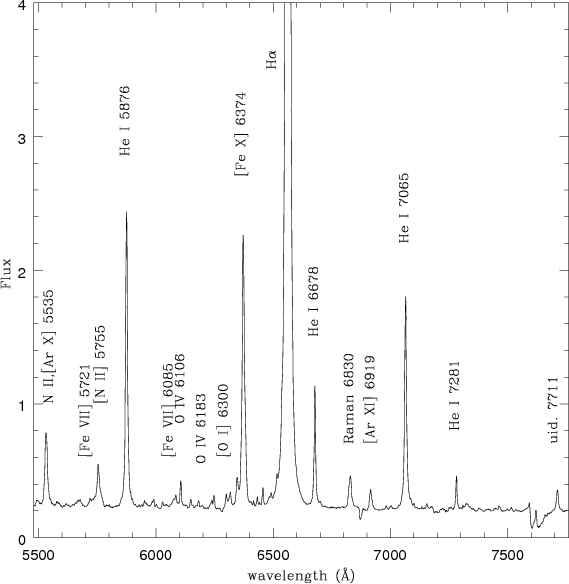

<td class="img-txt"><span class="bold">Figure 18:</span><p>
Medium dispersion red spectrum on April 4. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=28&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig19">&#160;</A><!-- end Label--><A NAME="1111"></A><A NAME="figure781"
 HREF="img55.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg55.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f19.eps}}
\end{figure}"></A><!-- HTML Figure number: 29 --></td>

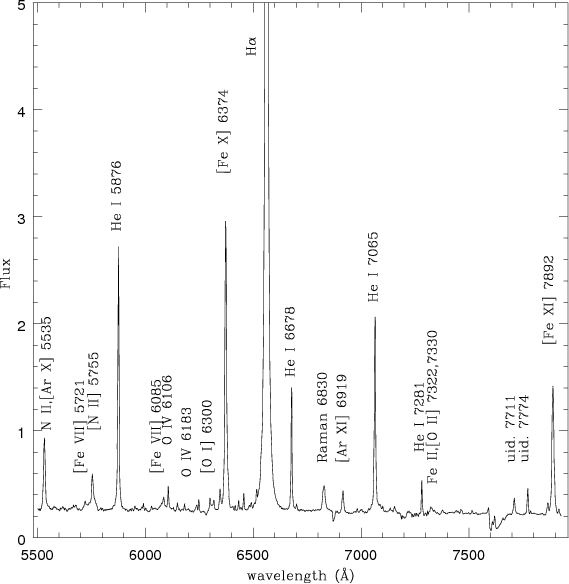

<td class="img-txt"><span class="bold">Figure 19:</span><p>
Medium dispersion red spectrum on April 24. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=29&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig20">&#160;</A><!-- end Label--><A NAME="1113"></A><A NAME="figure789"
 HREF="img56.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg56.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f20.eps}}
\end{figure}"></A><!-- HTML Figure number: 30 --></td>

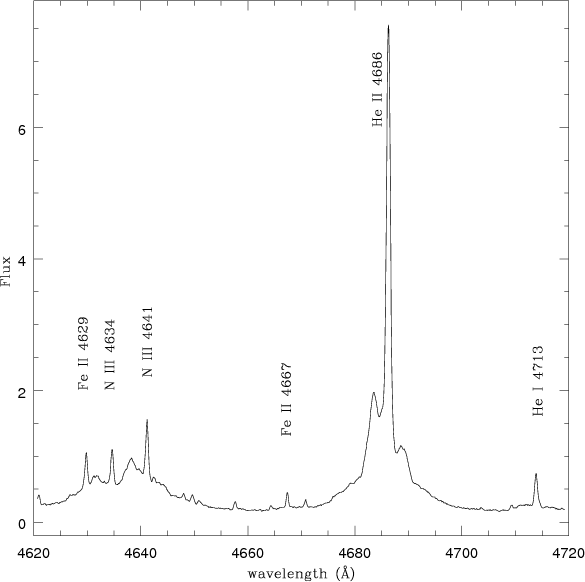

<td class="img-txt"><span class="bold">Figure 20:</span><p>
High dispersion spectrum on April 8: 4620-4720&#197;. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=30&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig21">&#160;</A><!-- end Label--><A NAME="1115"></A><A NAME="figure797"
 HREF="img57.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg57.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f21.eps}}
\end{figure}"></A><!-- HTML Figure number: 31 --></td>

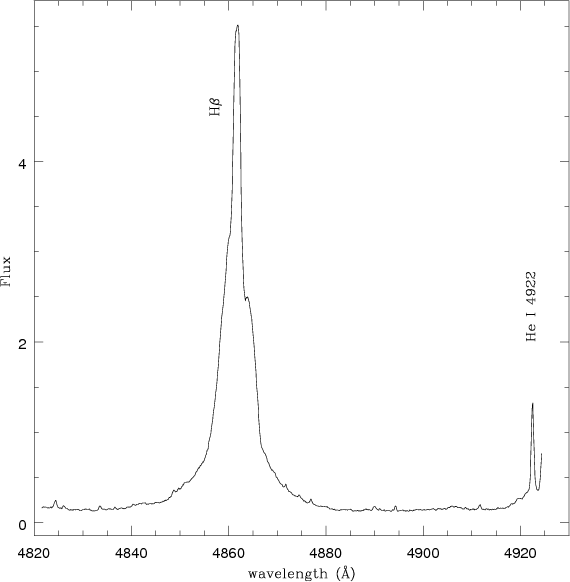

<td class="img-txt"><span class="bold">Figure 21:</span><p>
High dispersion spectrum on April 8: profile of H<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\beta $">.
The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=31&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig22">&#160;</A><!-- end Label--><A NAME="1117"></A><A NAME="figure805"
 HREF="img58.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg58.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f22.eps}}
\end{figure}"></A><!-- HTML Figure number: 32 --></td>

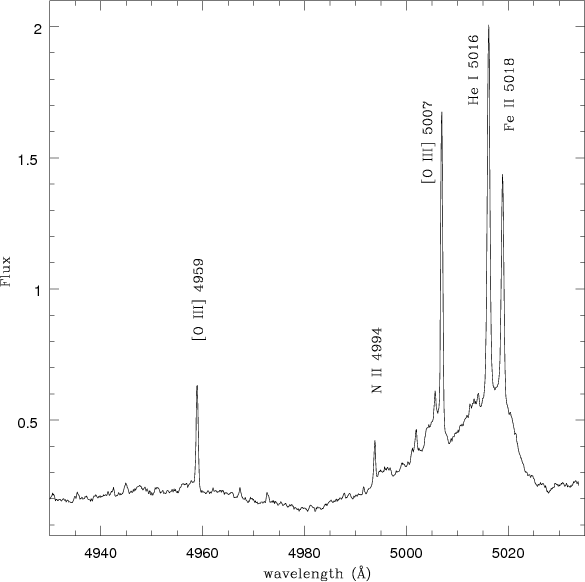

<td class="img-txt"><span class="bold">Figure 22:</span><p>
High dispersion spectrum on April 8: 4930-5030&#197;. The unit of  ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=32&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig23">&#160;</A><!-- end Label--><A NAME="1119"></A><A NAME="figure813"
 HREF="img59.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg59.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f23.eps}}
\end{figure}"></A><!-- HTML Figure number: 33 --></td>

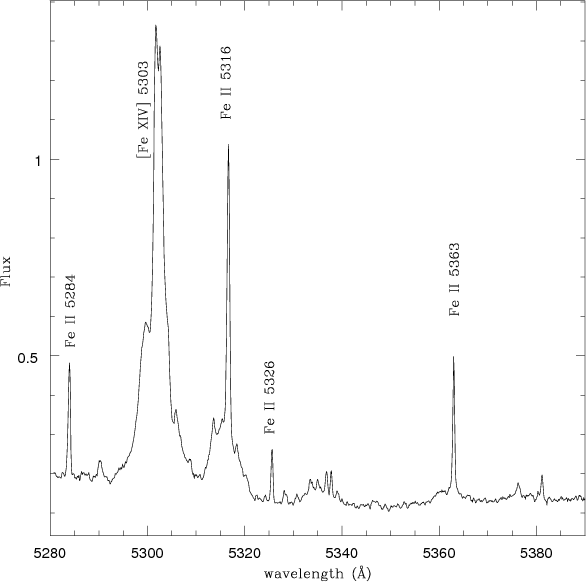

<td class="img-txt"><span class="bold">Figure 23:</span><p>
High dispersion spectrum on April 8: 5280-5390&#197;. The unit of  ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=33&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig24">&#160;</A><!-- end Label--><A NAME="1121"></A><A NAME="figure821"
 HREF="img60.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg60.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f24.eps}}
\end{figure}"></A><!-- HTML Figure number: 34 --></td>

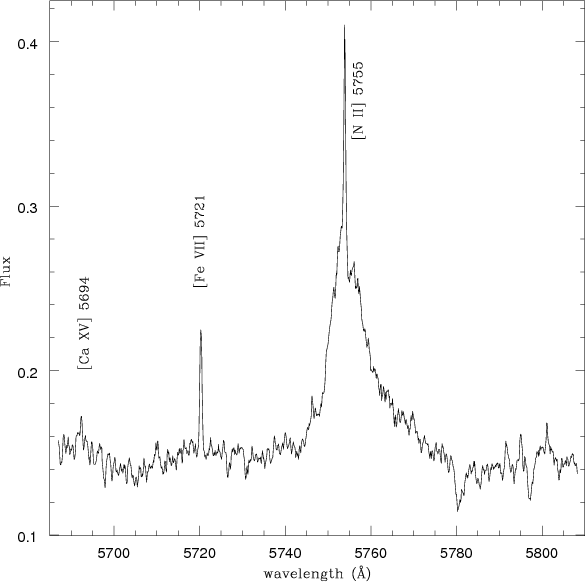

<td class="img-txt"><span class="bold">Figure 24:</span><p>
High dispersion spectrum on April 8: 5690-5810&#197;. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=34&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig25">&#160;</A><!-- end Label--><A NAME="1123"></A><A NAME="figure829"
 HREF="img61.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg61.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f25.eps}}
\end{figure}"></A><!-- HTML Figure number: 35 --></td>

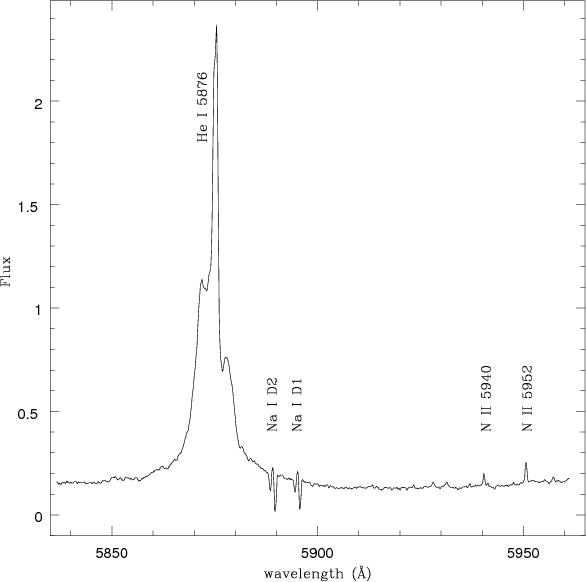

<td class="img-txt"><span class="bold">Figure 25:</span><p>
High dispersion spectrum on April 8: 5840-5960&#197;. The unit of ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=35&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig26">&#160;</A><!-- end Label--><A NAME="1125"></A><A NAME="figure837"
 HREF="img62.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg62.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f26.eps}}
\end{figure}"></A><!-- HTML Figure number: 36 --></td>

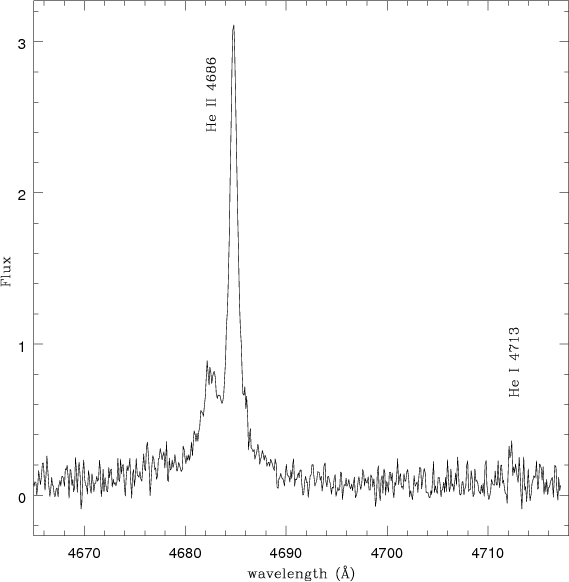

<td class="img-txt"><span class="bold">Figure 26:</span><p>
High dispersion spectrum on May 17: profile of He&nbsp;II&nbsp;4686. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=36&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig27">&#160;</A><!-- end Label--><A NAME="1127"></A><A NAME="figure845"
 HREF="img63.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg63.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f27.eps}}
\end{figure}"></A><!-- HTML Figure number: 37 --></td>

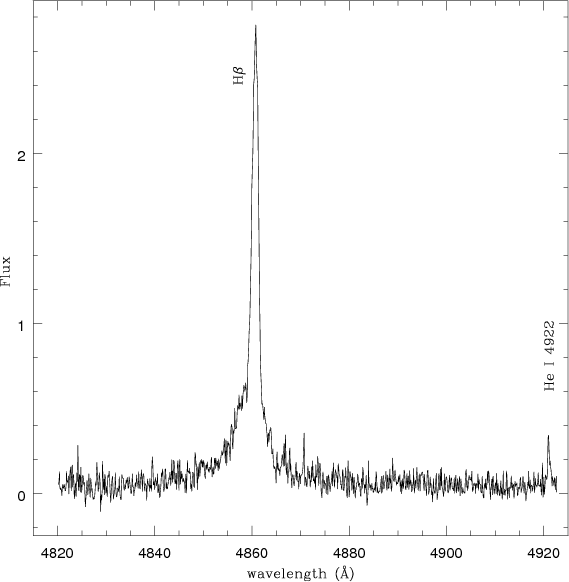

<td class="img-txt"><span class="bold">Figure 27:</span><p>
High dispersion spectrum on May 17: profile of H<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\beta $">.
The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=37&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig28">&#160;</A><!-- end Label--><A NAME="1129"></A><A NAME="figure853"
 HREF="img64.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg64.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f28.eps}}
\end{figure}"></A><!-- HTML Figure number: 38 --></td>
<td class="img-txt"><span class="bold">Figure 28:</span><p>
High dispersion spectrum on May 17: 4930-5030&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=38&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig29">&#160;</A><!-- end Label--><A NAME="1131"></A><A NAME="figure861"
 HREF="img65.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg65.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f29.eps}}
\end{figure}"></A><!-- HTML Figure number: 39 --></td>
<td class="img-txt"><span class="bold">Figure 29:</span><p>

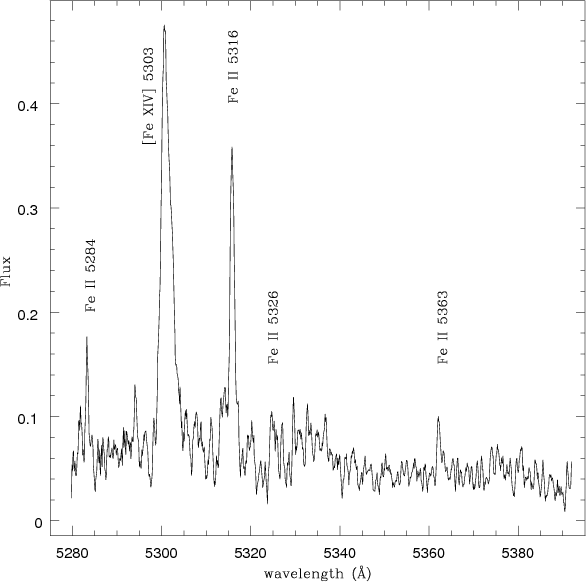

High dispersion spectrum on May 17: 5280-5390&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=39&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig30">&#160;</A><!-- end Label--><A NAME="1133"></A><A NAME="figure869"
 HREF="img66.png"><IMG
 WIDTH="95" HEIGHT="93" SRC="Timg66.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f30.eps}}
\end{figure}"></A><!-- HTML Figure number: 40 --></td>

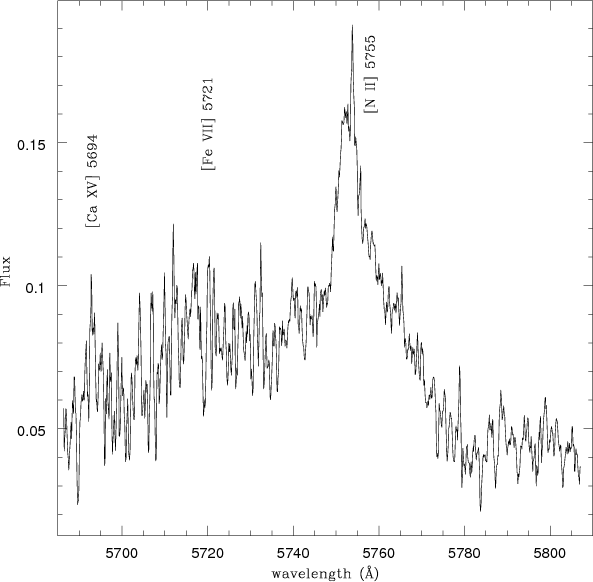

<td class="img-txt"><span class="bold">Figure 30:</span><p>
High dispersion spectrum on May 17: 5690-5810&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=40&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig31">&#160;</A><!-- end Label--><A NAME="1135"></A><A NAME="figure877"
 HREF="img67.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg67.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f31.eps}}
\end{figure}"></A><!-- HTML Figure number: 41 --></td>

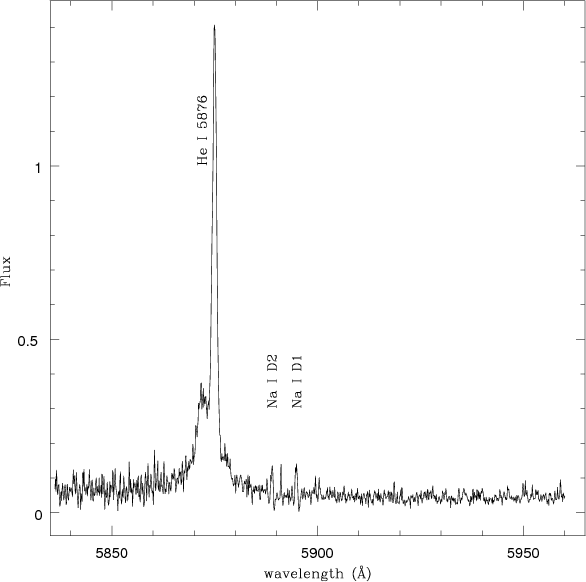

<td class="img-txt"><span class="bold">Figure 31:</span><p>
High dispersion spectrum on May 17: 5840-5955&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=41&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig32">&#160;</A><!-- end Label--><A NAME="1137"></A><A NAME="figure885"
 HREF="img68.png"><IMG
 WIDTH="95" HEIGHT="93" SRC="Timg68.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f32.eps}}
\end{figure}"></A><!-- HTML Figure number: 42 --></td>

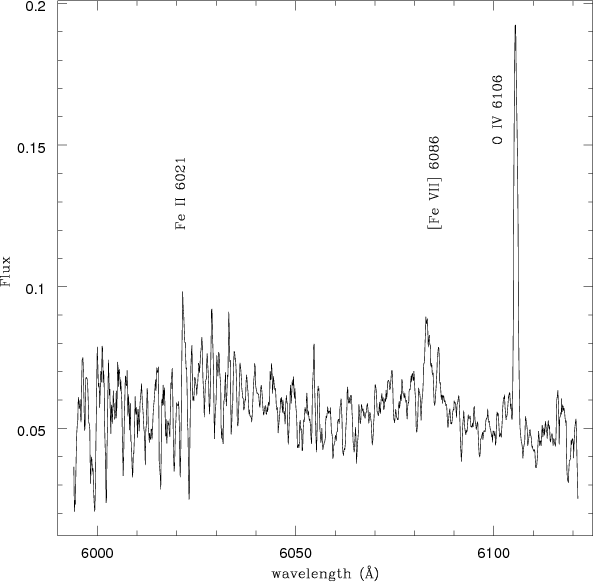

<td class="img-txt"><span class="bold">Figure 32:</span><p>
High dispersion spectrum on May 17: 6000-6120&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=42&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig33">&#160;</A><!-- end Label--><A NAME="1139"></A><A NAME="figure893"
 HREF="img69.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg69.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f33.eps}}
\end{figure}"></A><!-- HTML Figure number: 43 --></td>

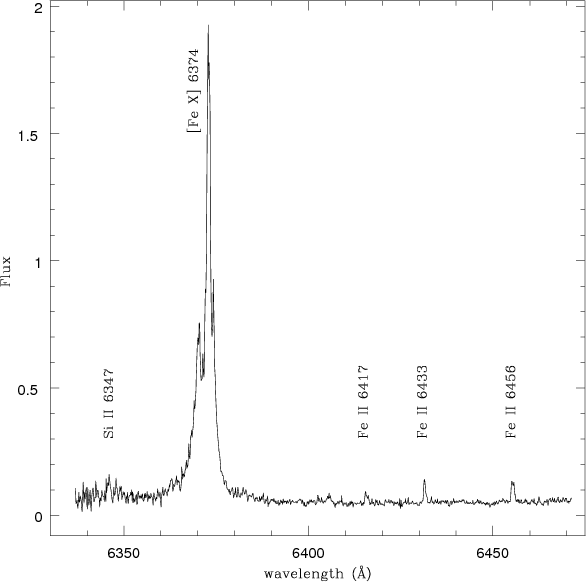

<td class="img-txt"><span class="bold">Figure 33:</span><p>
High dispersion spectrum on May 17: 6340-6470&#197;. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=43&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig34">&#160;</A><!-- end Label--><A NAME="1141"></A><A NAME="figure901"
 HREF="img70.png"><IMG
 WIDTH="95" HEIGHT="93" SRC="Timg70.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f34.eps}}
\end{figure}"></A><!-- HTML Figure number: 44 --></td>

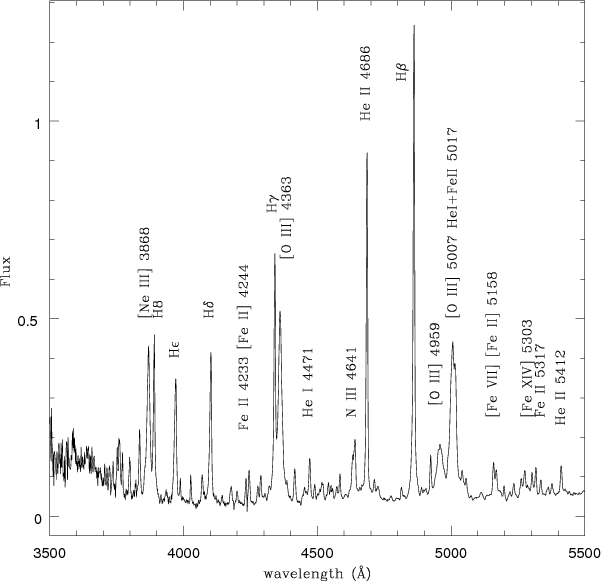

<td class="img-txt"><span class="bold">Figure 34:</span><p>
Medium dispersion blue spectrum on May 26. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=44&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig35">&#160;</A><!-- end Label--><A NAME="1143"></A><A NAME="figure909"
 HREF="img71.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg71.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f35.eps}}
\end{figure}"></A><!-- HTML Figure number: 45 --></td>

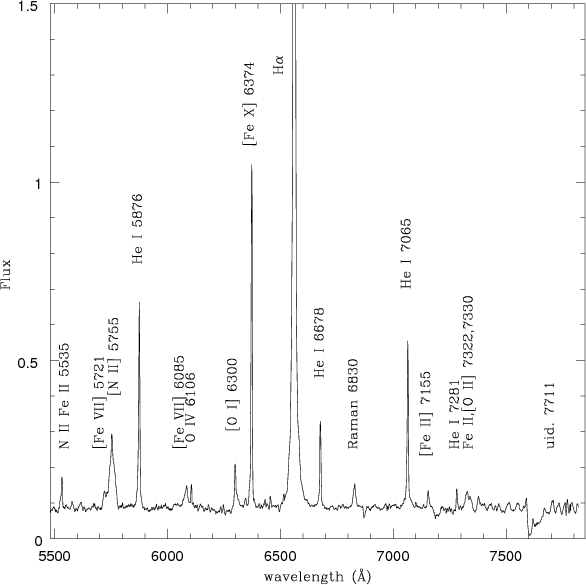

<td class="img-txt"><span class="bold">Figure 35:</span><p>
Medium dispersion red spectrum on May 25. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=45&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig36">&#160;</A><!-- end Label--><A NAME="1145"></A><A NAME="figure917"
 HREF="img72.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg72.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f36.eps}}
\end{figure}"></A><!-- HTML Figure number: 46 --></td>
<td class="img-txt"><span class="bold">Figure 36:</span><p>

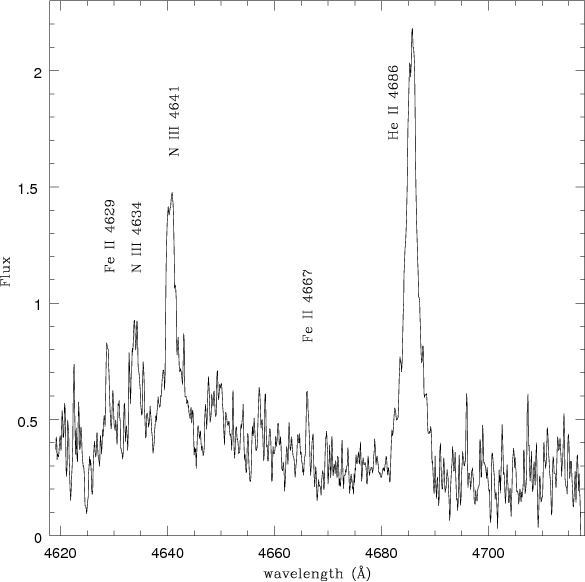

High dispersion spectrum on August 31: 4620-4720&#197;. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=46&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>

<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig37">&#160;</A><!-- end Label--><A NAME="1147"></A><A NAME="figure925"
 HREF="img73.png"><IMG
 WIDTH="91" HEIGHT="93" SRC="Timg73.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f37.eps}}
\end{figure}"></A><!-- HTML Figure number: 47 --></td>
<td class="img-txt"><span class="bold">Figure 37:</span><p>
High dispersion spectrum on August 31: profile of H<IMG
 WIDTH="10" HEIGHT="26" ALIGN="MIDDLE" BORDER="0"
 SRC="img2.png"
 ALT="$\beta $">.
The unit of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=47&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig38">&#160;</A><!-- end Label--><A NAME="1149"></A><A NAME="figure933"
 HREF="img74.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg74.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f38.eps}}
\end{figure}"></A><!-- HTML Figure number: 48 --></td>

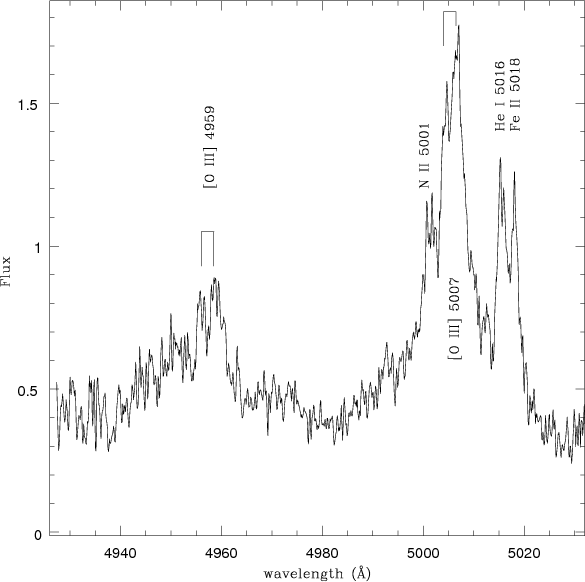

<td class="img-txt"><span class="bold">Figure 38:</span><p>
High dispersion spectrum on August 31: 4930-5030&#197;. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=48&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig39">&#160;</A><!-- end Label--><A NAME="1151"></A><A NAME="figure941"
 HREF="img75.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg75.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f39.eps}}
\end{figure}"></A><!-- HTML Figure number: 49 --></td>
<td class="img-txt"><span class="bold">Figure 39:</span><p>

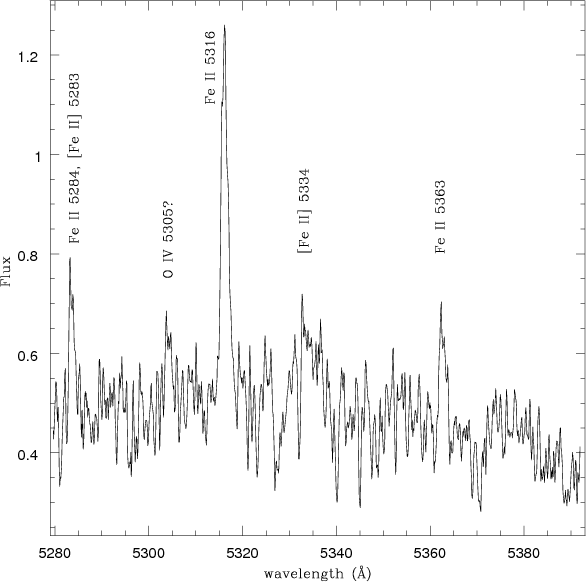

High dispersion spectrum on August 31: 5280-5390. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=49&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig40">&#160;</A><!-- end Label--><A NAME="1153"></A><A NAME="figure949"
 HREF="img76.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg76.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f40.eps}}
\end{figure}"></A><!-- HTML Figure number: 50 --></td>
<td class="img-txt"><span class="bold">Figure 40:</span><p>
High dispersion spectrum on August 31: 5690-5805&#197;. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=50&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig41">&#160;</A><!-- end Label--><A NAME="1155"></A><A NAME="figure957"
 HREF="img77.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg77.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f41.eps}}\end{figure}"></A><!-- HTML Figure number: 51 --></td>

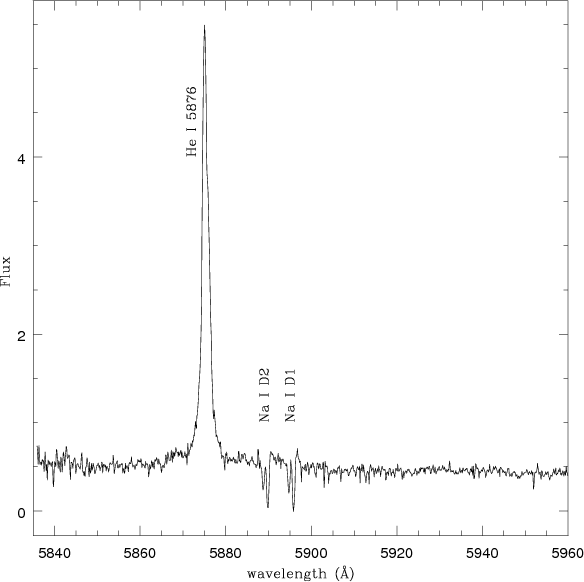

<td class="img-txt"><span class="bold">Figure 41:</span><p>
High dispersion spectrum on August 31: 5840-5960. The unit
of the ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=51&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig42">&#160;</A><!-- end Label--><A NAME="1157"></A><A NAME="figure965"
 HREF="img78.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg78.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f42.eps}}
\end{figure}"></A><!-- HTML Figure number: 52 --></td>

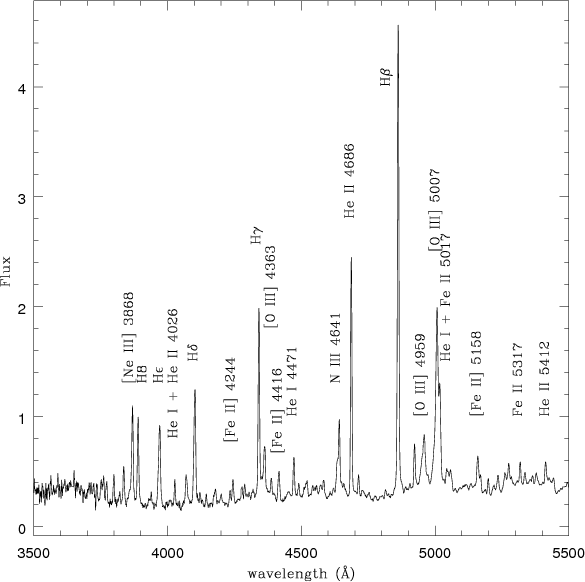

<td class="img-txt"><span class="bold">Figure 42:</span><p>
Medium dispersion blue spectrum on September 9. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=52&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig43">&#160;</A><!-- end Label--><A NAME="1159"></A><A NAME="figure973"
 HREF="img79.png"><IMG
 WIDTH="95" HEIGHT="93" SRC="Timg79.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f43.eps}}
\end{figure}"></A><!-- HTML Figure number: 53 --></td>

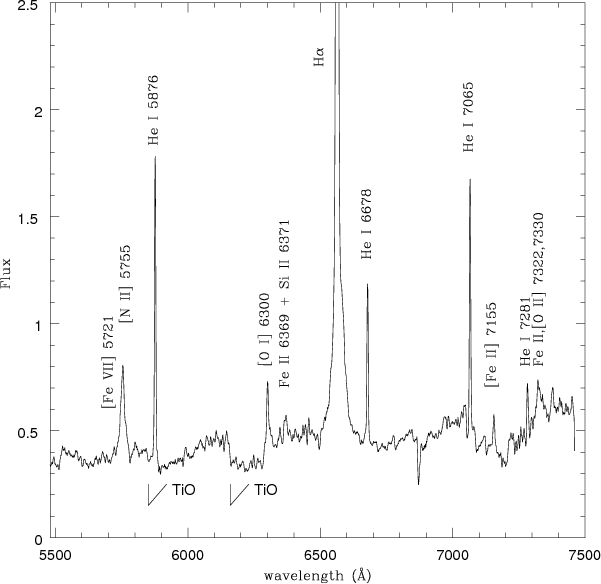

<td class="img-txt"><span class="bold">Figure 43:</span><p>
Medium dispersion red spectrum on September 12. The unit of
ordinate is 10<sup>-12</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=53&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<div class="inset-old">
<table>
<tr><td><!-- init Label --><A NAME="Fig44">&#160;</A><!-- end Label--><A NAME="1161"></A><A NAME="figure981"
 HREF="img80.png"><IMG
 WIDTH="93" HEIGHT="93" SRC="Timg80.png"
 ALT="\begin{figure}
\resizebox{9cm}{!}{\includegraphics{11436f44.eps}}
\end{figure}"></A><!-- HTML Figure number: 54 --></td>

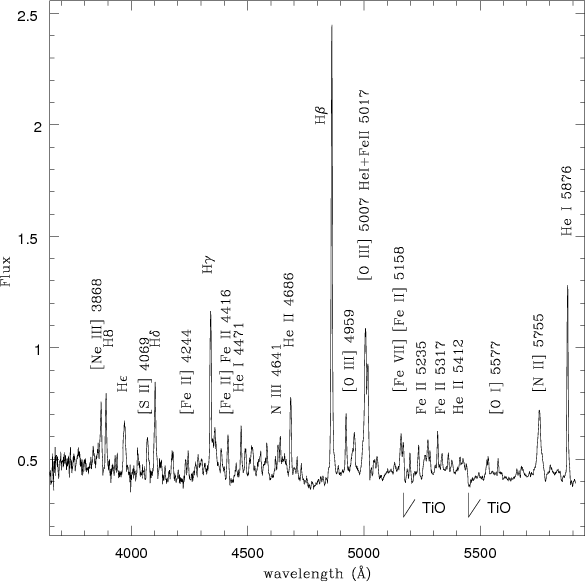

<td class="img-txt"><span class="bold">Figure 44:</span><p>
Medium dispersion blue spectrum on October 29. The unit of
ordinate is 10<sup>-13</sup>&nbsp;erg&nbsp;cm<sup>-2</sup>&nbsp;s<sup>-1</sup>&nbsp;&#197;<sup>-1</sup>.</p></td>
</tr><tr><td colspan="2"><a href="http://dexter.edpsciences.org/applet.php?pdf_id=54&DOI=10.1051/0004-6361/200811436" target="DEXTER">Open with DEXTER</a></td></tr>

</table></div>
<p>
<br>

</div></body></html>
