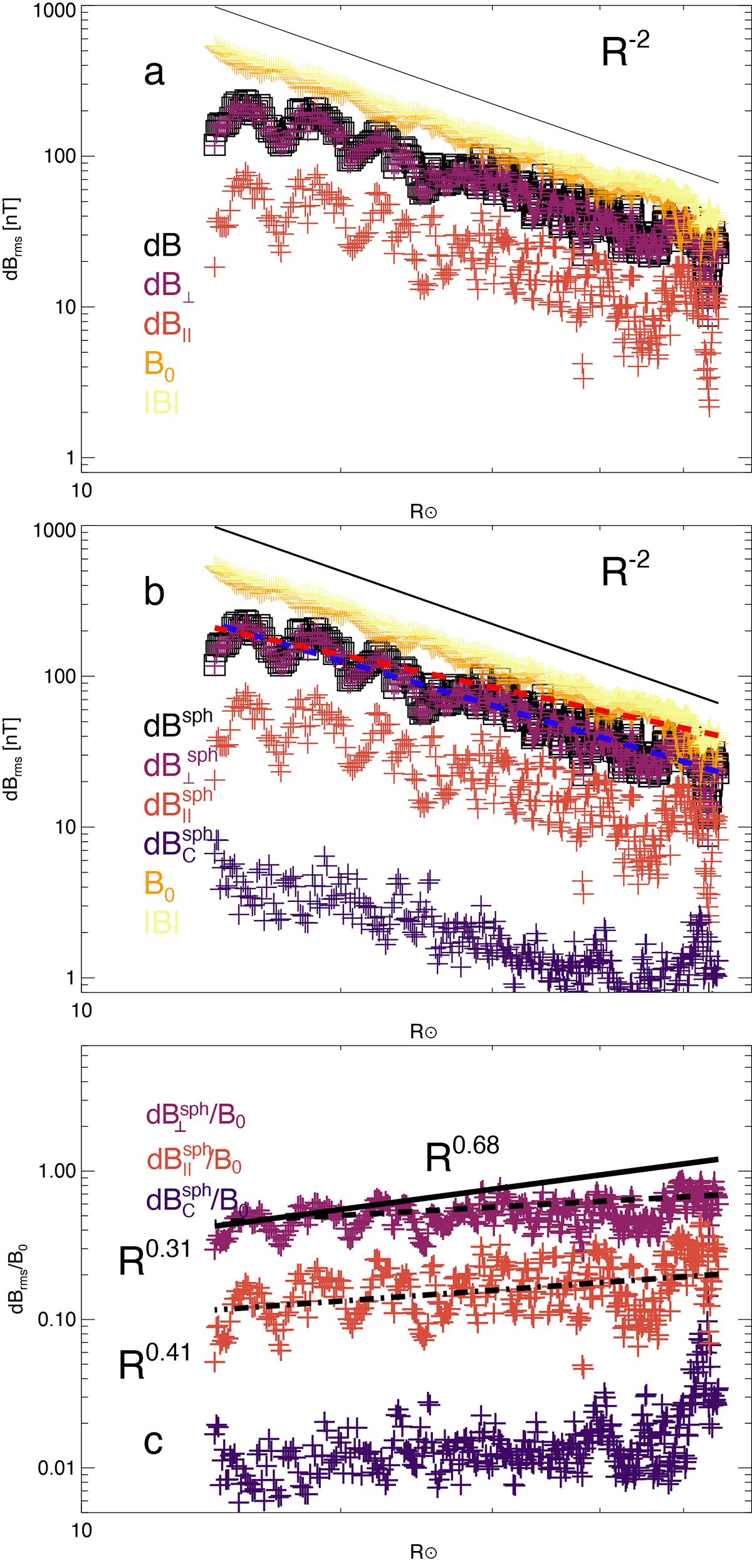

Fig. 2.
Download original image
a) Root mean squared dB, dB⊥, and dB∥ (black, maroon, red); magnitude of the mean magnetic field, B0, orange. b) Spherically confined fluctuations, dB, dB⊥, and dB∥, (black, maroon, red) where all fluctuations maintain a constant magnitude, |Bsph|. The RMS residual fluctuations between the total field and spherically polarized field, dBC, are shown in dark blue. The dashed red line shows the wave amplitude from conservation of wave action with no dissipation. The blue line shows the best fit to dBsph. c) Normalized amplitudes, dB⊥sph/B0, dB∥sph/B0, and
. Best fit lines to dB⊥sph/B0 and dB∥sph/B0 are shown as well as the scaling expected for conservation of wave action.
