Fig. 15
Download original image

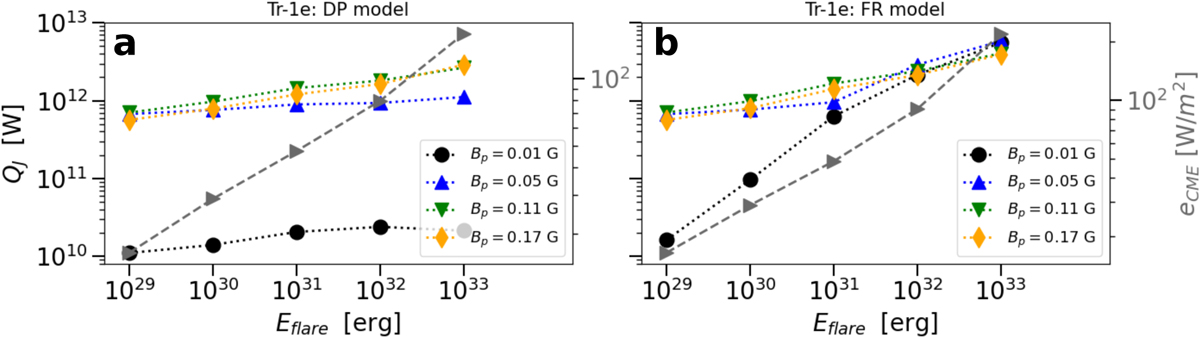

Time-averaged interior heating rates as a function of CME-associated flare energy Eflare (erg) for DP (a) and FR (b) CMEs. We only show heating rates for Bp = 0 G (black circles), Bp = 0.05 G (blue upward triangles), Bp = 0.11 G (green downward triangles), and Bp = 0.17 G (yellow diamonds). Gray triangles denote the incident total energy flux of the CME (right y-axis).
