Fig. 1
Download original image

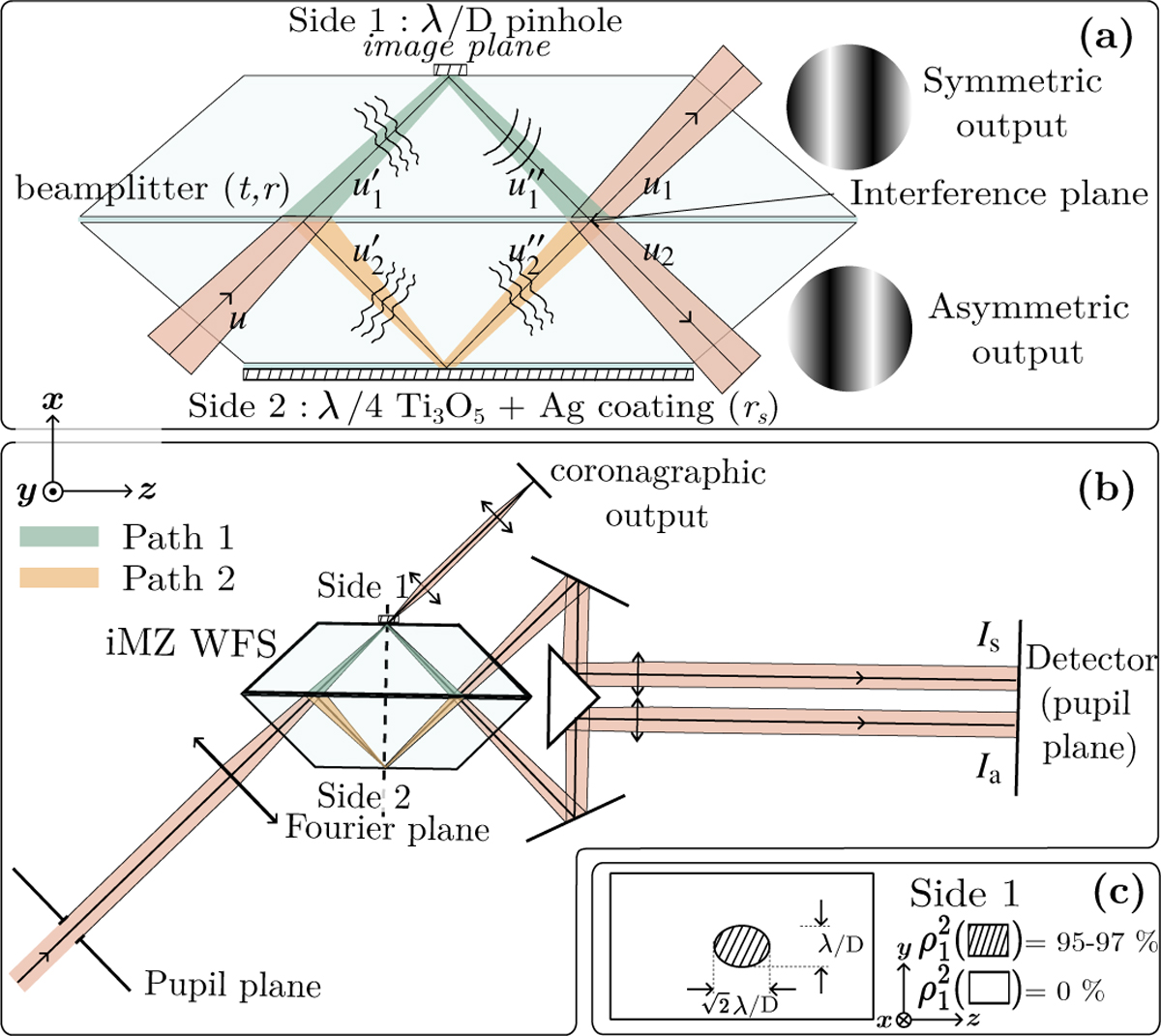

Schematic representation of the iMZ WFS. (a) The iMZ component. (b) Light path from the pupil plane preceding the iMZ to the detector. (c) Lateral view of the pinhole side of the iMZ, with ρ1 the amplitude reflection coefficient on Side 1 (see later Table 1).
