Fig. 6
Download original image

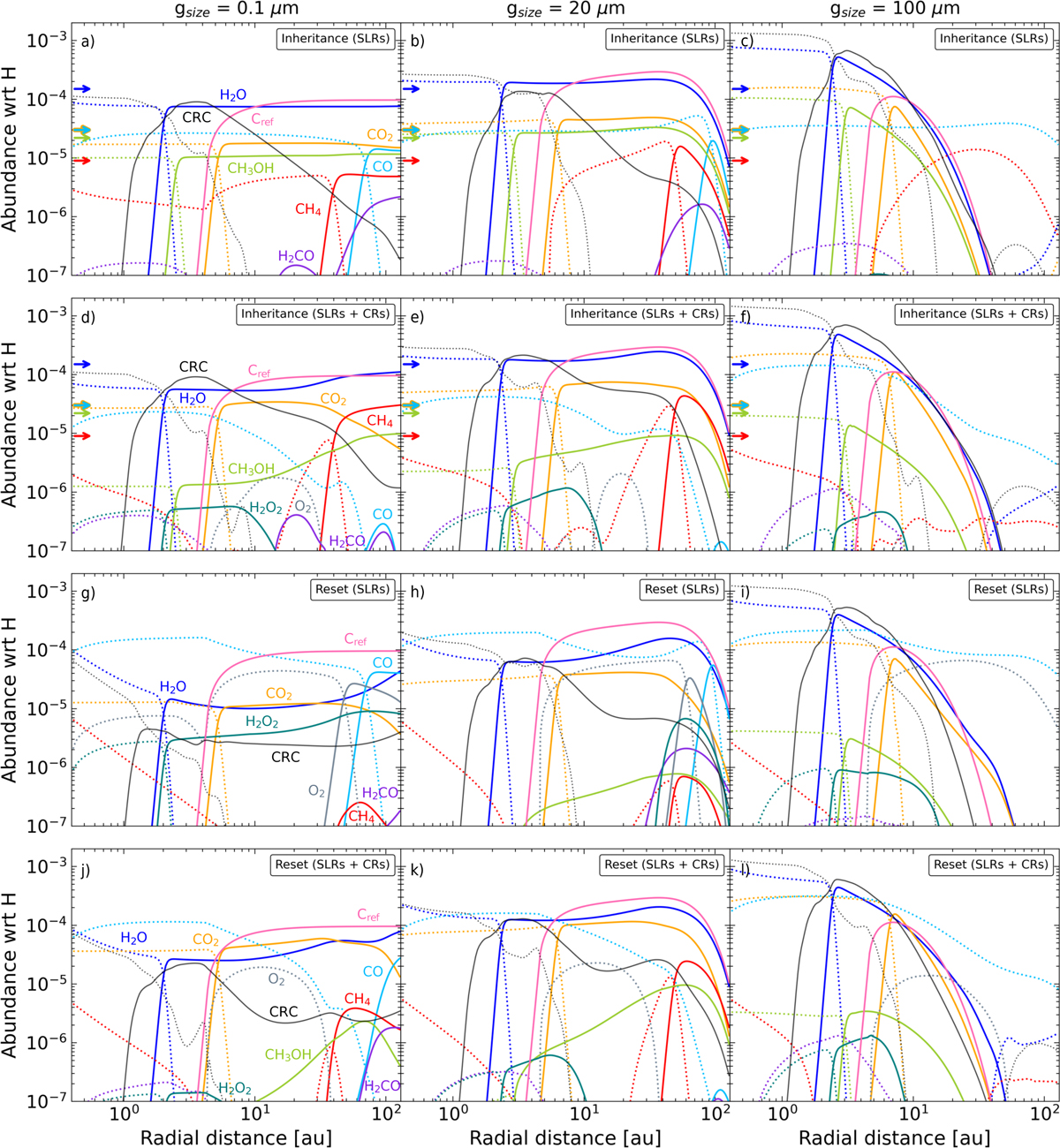

Radial abundance profiles of the main C- and O-bearing volatile molecules in the gas phase (dotted lines) and in the ice phase (solid lines) in the disc midplane after 3 Myr of evolution with the time-dependent model (full model). The results are shown for the four chemical scenarios and the three investigated grain sizes assuming α = 10-3. The horizontal small arrows indicate the initial abundances of H2O, CO, CO2, CH3OH, and CH4 in the gas phase in the inheritance scenario (see also Table 2). Note that CO and CO2 have the same initial abundance. The black profile (CRC), represents the cumulative abundance of additional carbon-rich compounds, including carbon chains, hydrocarbons, nitriles, and other complex organics.
