MIRACLE - I. Unveiling the multi-phase, multi-scale physical properties of the active galaxy NGC 424 with MIRI, MUSE, and ALMA

Open Access

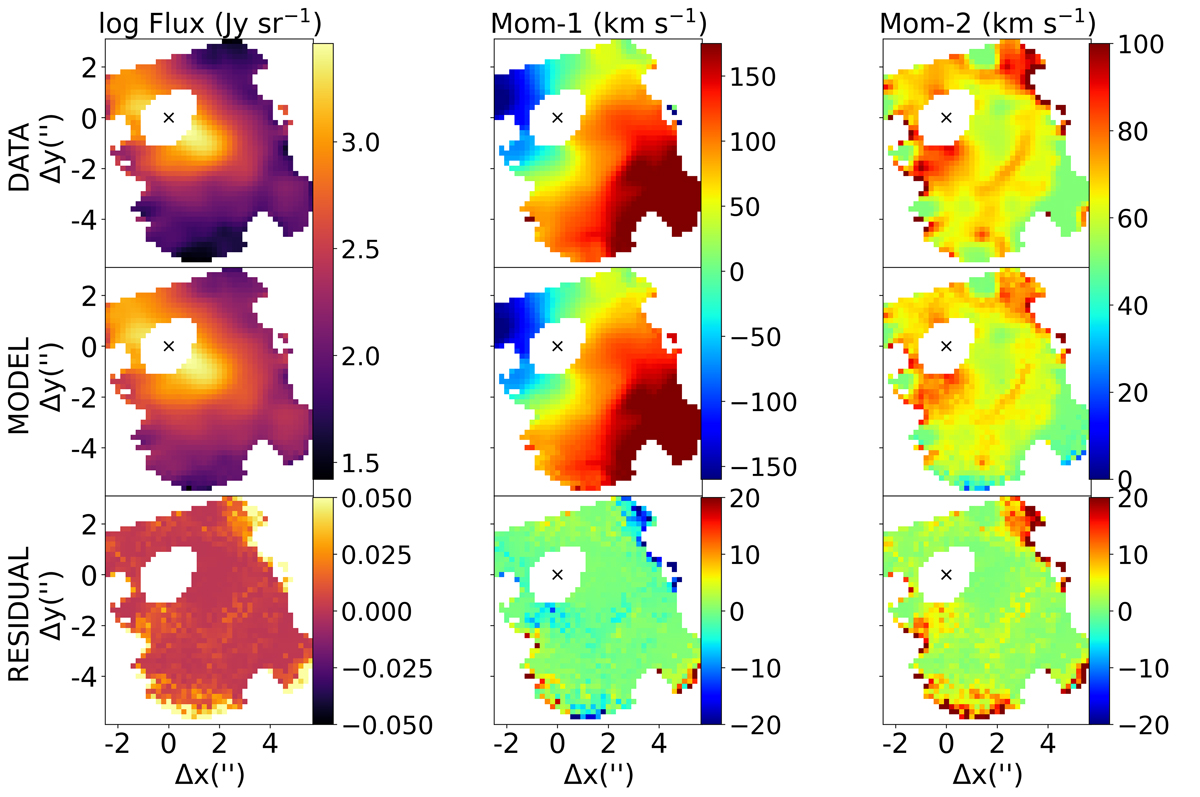

Fig. C.1.

Comparison of the observed (top panel) and best-fit MOKA^3D (middle panel) moment maps for the H₂S(1) emission line. Residuals are shown in the bottom panel. The modelling and best-fit parameters are presented in Sect. 4.1 and listed in Tab. 2. North is up, east to the left.
