Fig. 3


Download original image

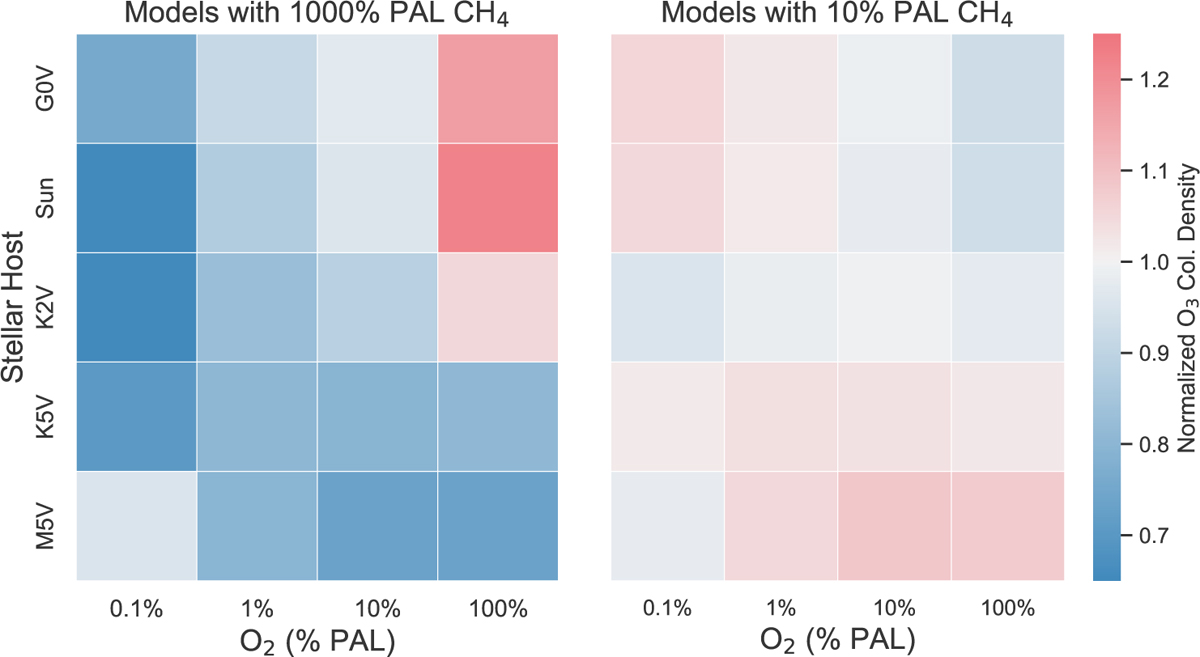

Ozone abundances normalized to the amount produced at modern levels of CH4 for both the high (left) and low (right) CH4 models for all host stars at 0.1%, 1%, 10%, and 100% PAL O2. The most striking result is that for the high CH4 models there is less O3 compared to modern CH4, except for planets around the hottest hosts at 100% PAL O2. This is due both to the indirect impact of CH4 on the stratospheric temperature, as well as a boost in the smog mechanism due to a decreased NOx/HOx ratio. The rest of the cases for the CH4 models show increased O3 depletion due to a higher amount of CH4 from the increased efficiency of the HOx catalytic cycle’s ability to destroy O3.
