Fig. 5


Download original image

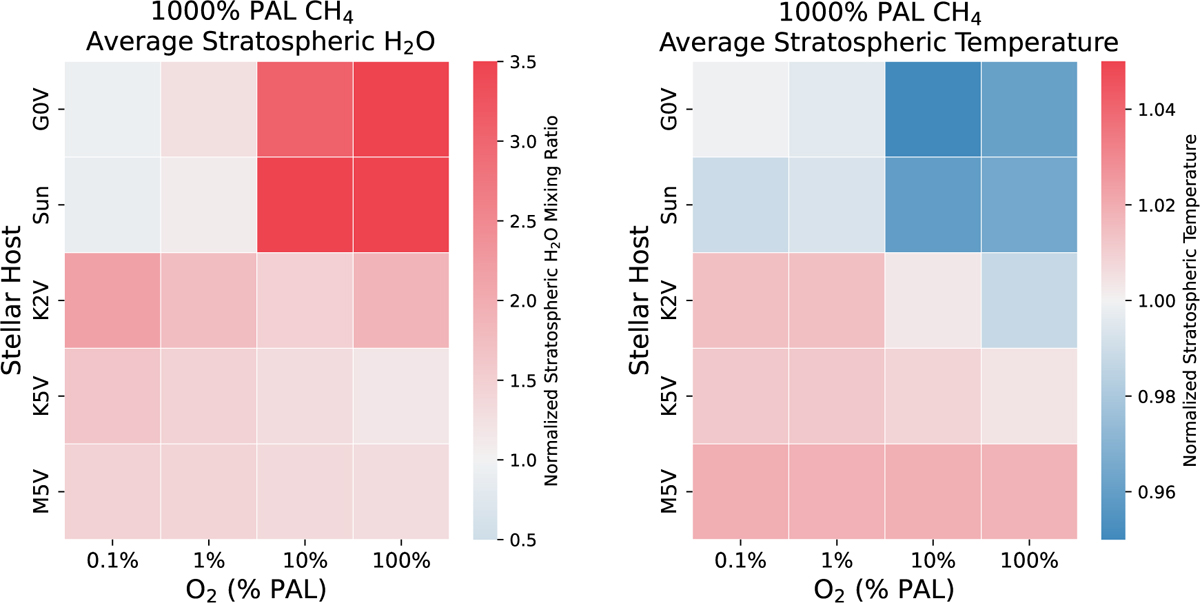

Average stratospheric H2O (left) and temperatures (right) for high CH4 models all normalized to results from models using modern levels of CH4. Nearly all models experience an increase in H2O for the high CH4 models due to the conversion of CH4 into H2O in the stratosphere. Planets around hotter hosts with higher O2 show the largest increases as incident UV and O2 are necessary for creating H2O in this scenario. The excess H2O impacts the temperature, providing stratospheric cooling in cases with large increases of H2O. As the atmosphere is thin in the stratosphere heat radiating from H2O can escape to space, causing an effect similar to stratospheric CO2 cooling present on modern Earth.
