Fig. 12
Download original image

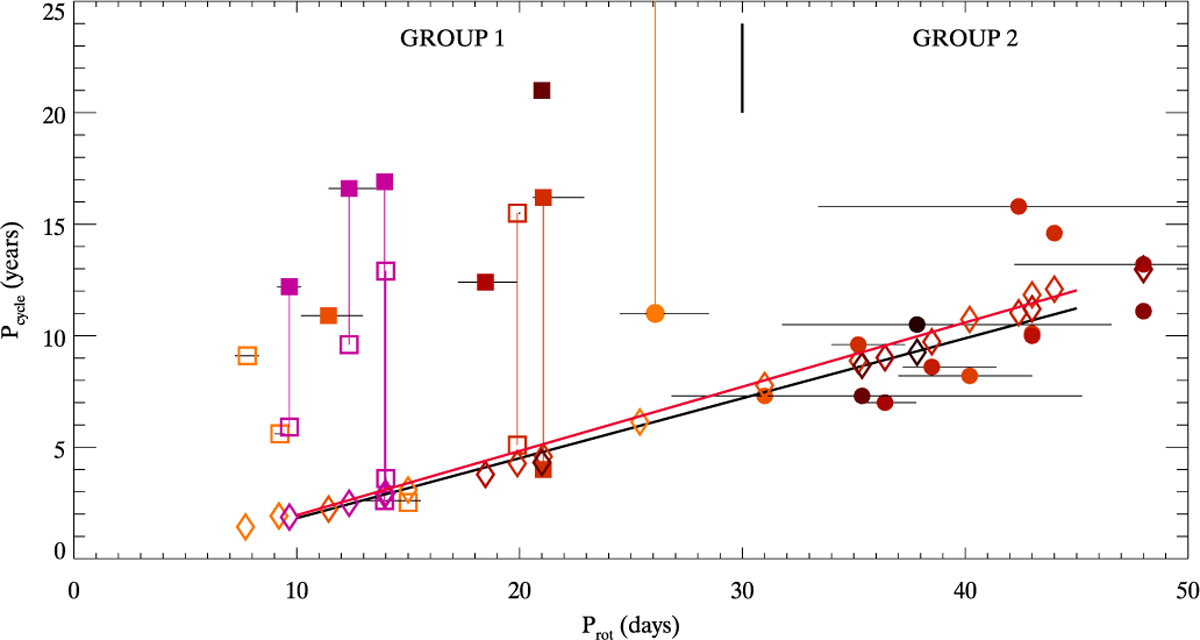

Similar to Fig. 5 but now with diamonds representing the cycles obtained from the integration of the ‘forked dynamo’. The red line corresponds to the fit Prot – Pcyc(comp), in very good agreement with the observed Prot – Pcyc(obs) relationship (black line).
