Fig. 4


Download original image

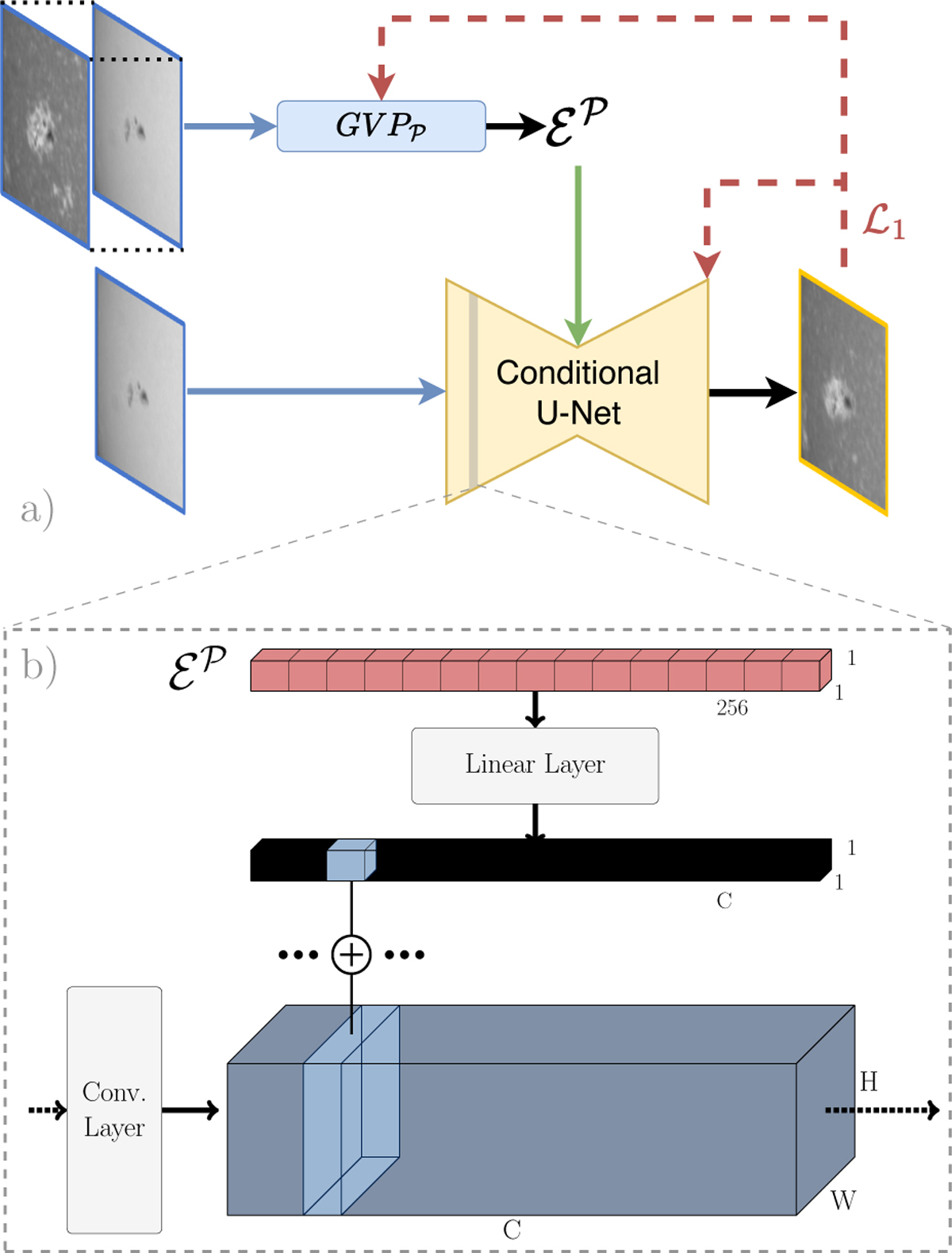

First training stage of I2IwFiLM: a) Main U-Net model predicts I^C$\[\widehat{\mathcal{I}}_{\mathcal{C}}\]$ from input I^W$\[\widehat{\mathcal{I}}_{\mathcal{W}}\]$ and from ℰ𝒫, the guidance vector extracted from the pairs 𝒫 := (ℐ𝒲, ℐ𝒞) using a guidance vector prediction network, denoted GVPp. b) Details on the modulation of an intermediate feature map of the U-Net model by ℰ𝒫 using a FiLM layer. The height, width, and number of channels (depth) of the intermediate feature map are denoted W, H, and C, respectively.
