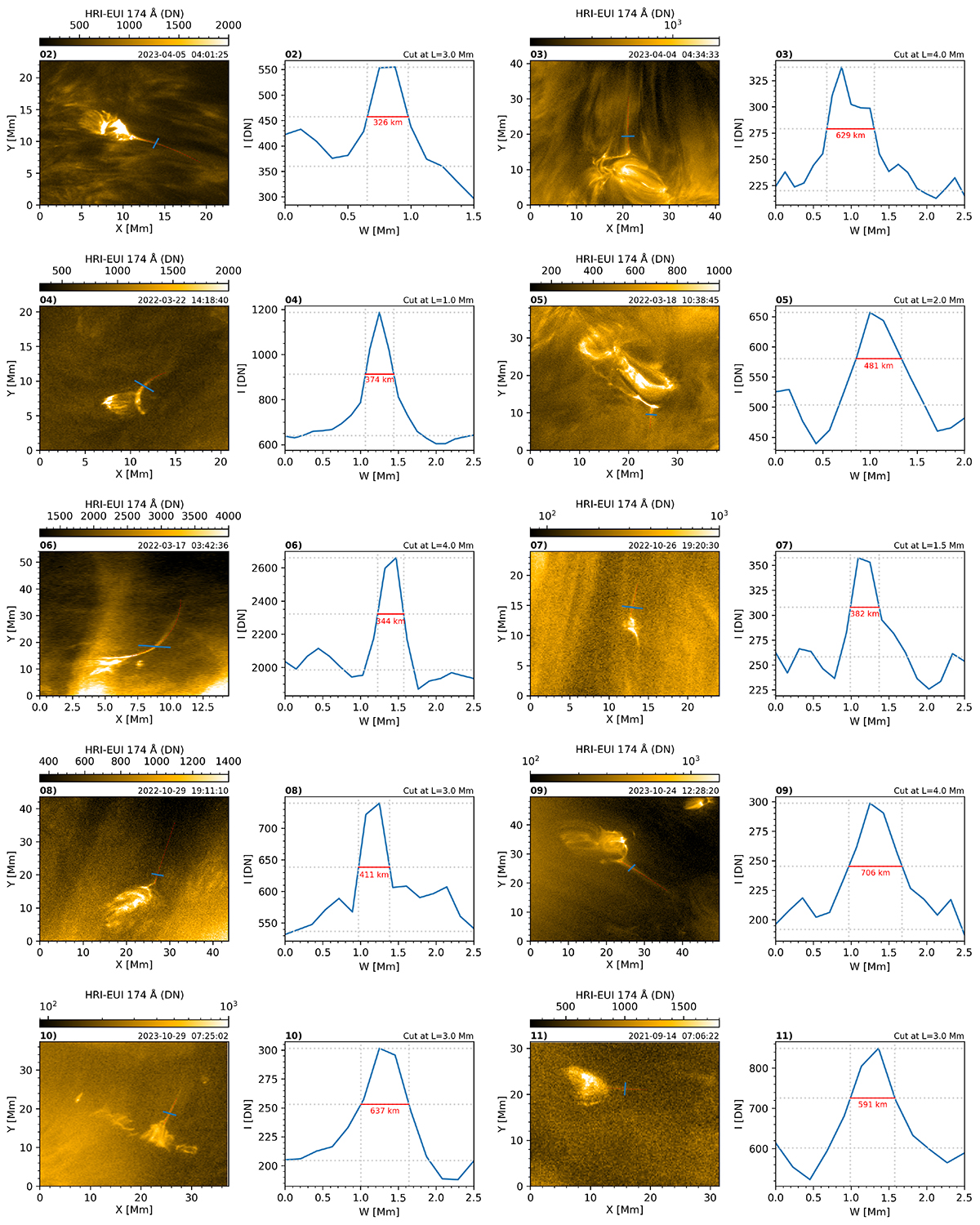

Fig. B.3.
Download original image
Widths of narrow coronal jets emanating from CBPs for cases 02 to 11. The red dashed line in the HRIEUV images indicates the Bézier curve that fits the spine of the jet, while the perpendicular blue line marks the cut used to determine the FWHM shown in the adjacent panel. In the 1D plots, the dotted gray lines serve as visual aids to illustrate how the FWHM is determined.
