Fig. 8.
Download original image

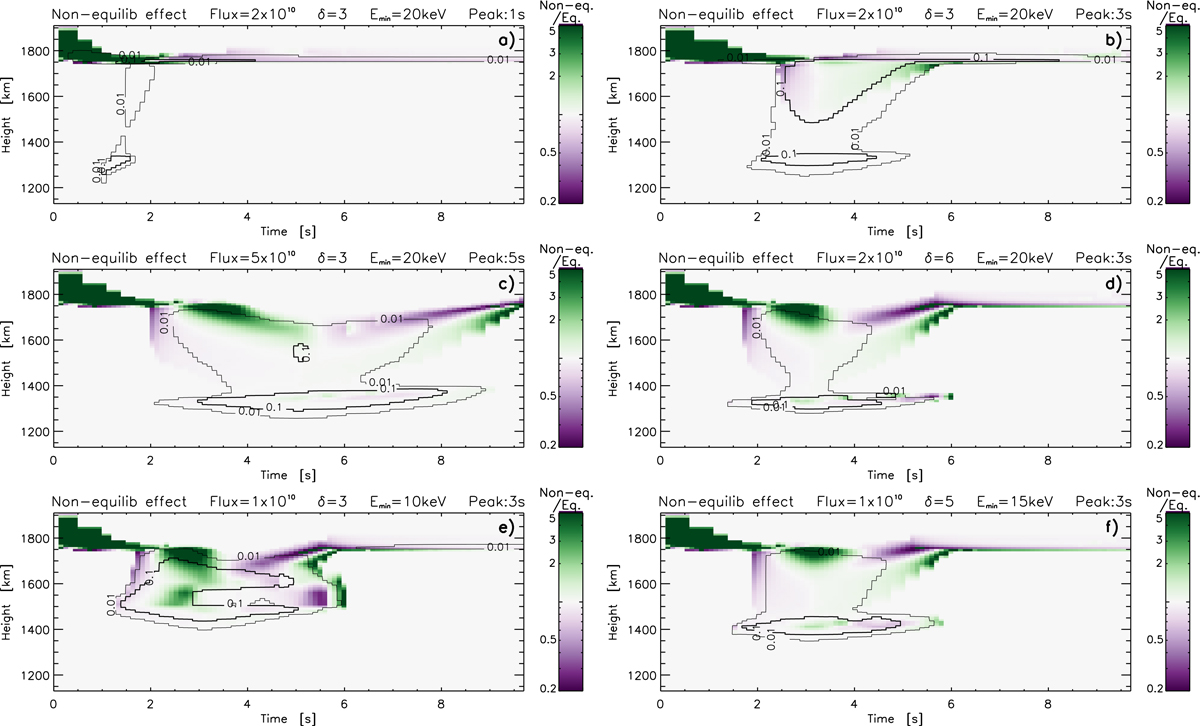

Ratio of Si IV abundances calculated with the assumption of the non-equilibrium ionization to equilibrium abundances. The ratio is showed for where the relative Si IV abundance out of equilibrium is higher than 0.01. Details are given in the title of panels and the arrangement of the panels, parameters, and their units are the same as in Fig. 3.
