Fig. A.1
Download original image

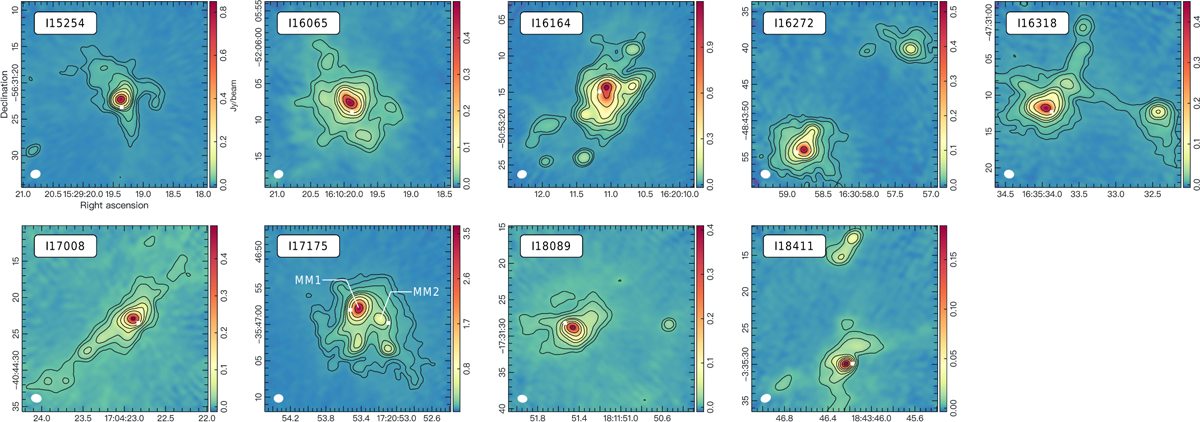

1.3 mm continuum image of I15254, I16065, I16164, I16272, I16318, I17008, I17175, I18089, and I18411 obtained with ALMA Band 6. The background shows the continuum emission of each source. Contour levels are drawn at (3, 5, 10, 20, 30, 50, 100, 200) ×σ, where σ is the rms noise level. The 1σ values of I15254, I16065, I16164, I16272, I16318, I17008, I17175, I18089, and I18411 are 1.92, 2.75, 4.13, 1.75, 1.51, 2.80, 6.90, 2.60, and 2.80 mJy beam−1, respectively. The synthetic beam for continuum is indicated in the bottom-left corner by the ellipse. The spectral extraction positions are indicated with a white point.
