Fig. 4.


Download original image

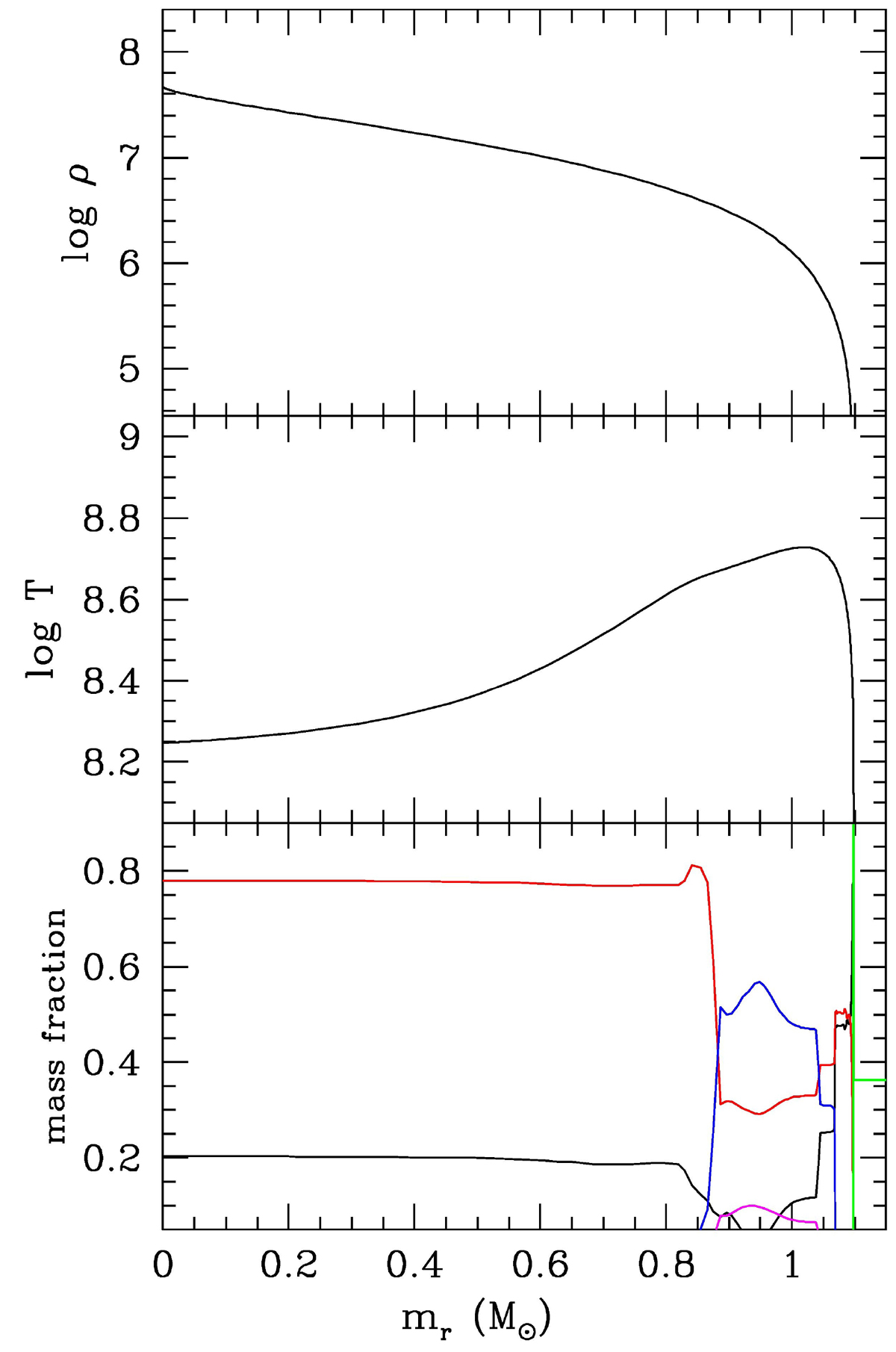

Top to bottom: Density, temperature, and chemical profiles within the core of a 7.7 M model at the onset of the super-AGB phase. In the bottom panel, lines represent the mass fractions of 4He (green), 12C (black), 16O (red), 20Ne (blue), and 24Mg (magenta). No ALP production has been included in this model. We note that it is only above 0.85 M that C burning has been active. This model represents an example of hybrid WD progenitors.
