Fig. 9.
Download original image

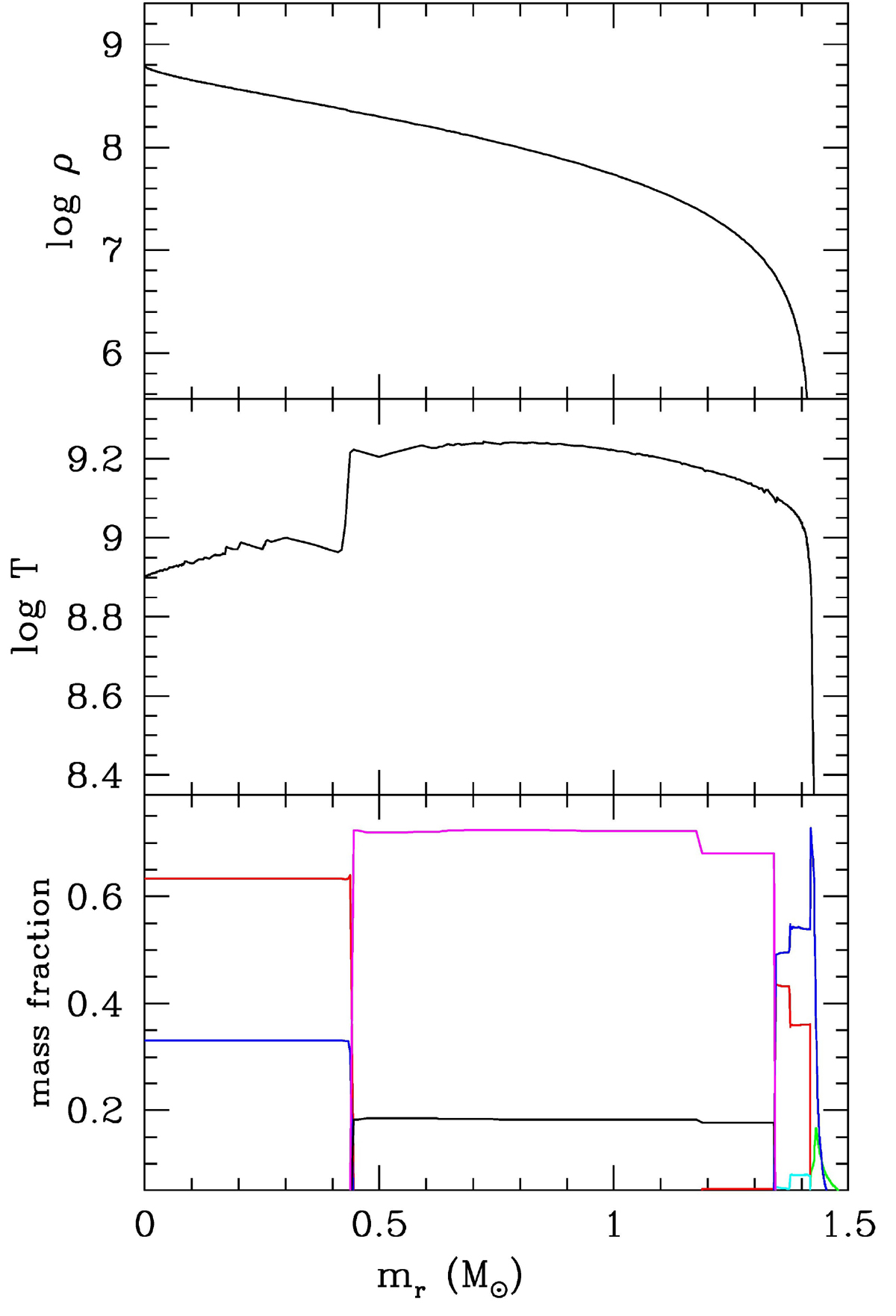

Top to bottom: Density, temperature and chemical profiles within the core of a 10 M⊙ model during the advanced burning phase (Ne burning and beyond). In the bottom panel, lines represent the mass fractions of 16O (red), 20Ne (blue), 24Mg (cyan), 28Si (black), and 32S (magenta). No ALP production has been included in this model. The burning front is located at mr ∼ 0.44 M⊙. Above this point and up to mr ∼ 1.33 M⊙, oxygen and neon have been already fully consumed and the main constituents are now silicon and sulfur. The penetrating burning front is at mr ∼ 0.44 M⊙. More outside, oxygen and neon are already fully consumed and the main constituents are silicon and sulfur.
