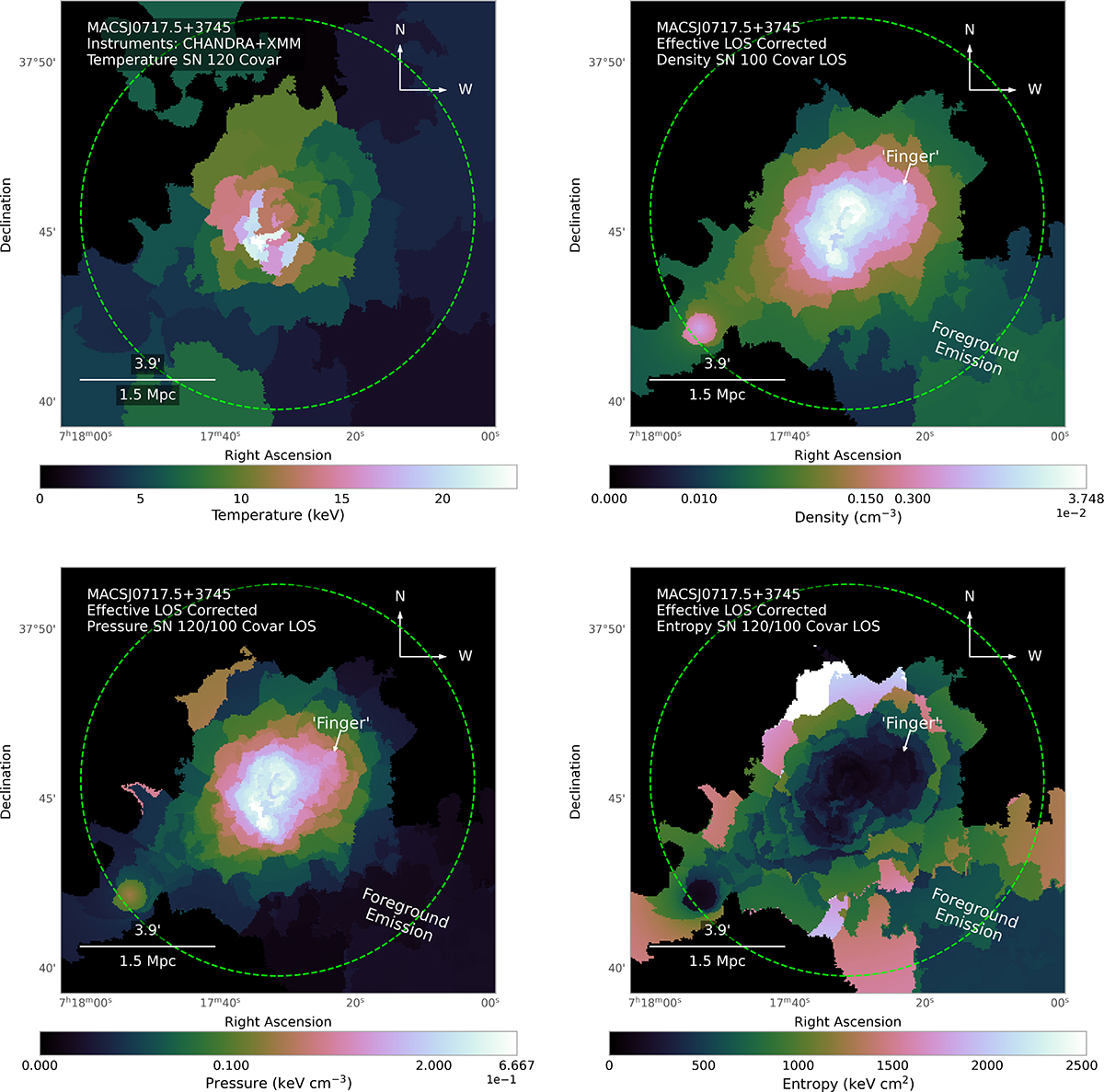

Maps of temperature (top-left), density (top-right), pressure (bottom-left), and entropy (bottom-right) with corresponding units of keV, cm⁻³, keVcm⁻³, and keVcm². The temperature and electron density maps were created using binning with a S/N of 120 (14 400 counts) and 100 (10 000 counts), respectively, while the pressure and entropy maps were produced using the results from the top two S/N maps. Density maps were derived from the normalization fits assuming an effective length determined from the best-fit results of five beta models, shown in Table 5. Spectral fits were made using data from both Chandra and XMM-Newton for the temperature, and only Chandra for the density, each using the CXB best-fit results from ROSAT, Chandra, and XMM-Newton. Fits for these maps were performed using the most appropriate background model for each region according to the AIC.
