Fig. 10
Download original image

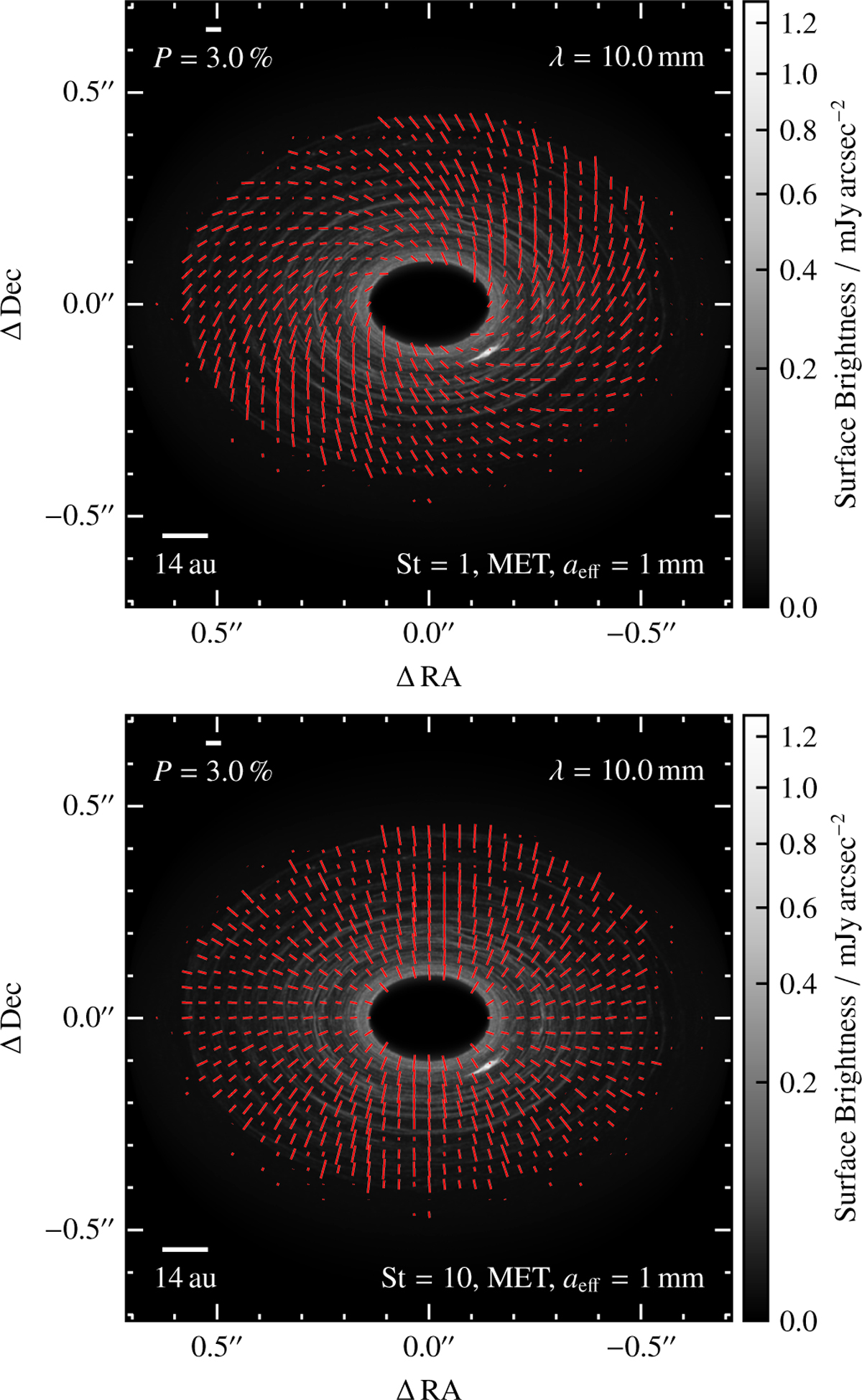

Surface brightness map of the total emitted thermal radiation at a wavelength of 10 mm overlaid by polarization vectors assuming an analytic description for the drift velocity (see Eq. (9)). The Stokes number is set to St = 1 (top) and St = 10 (bottom). The inclination of the disk is 45∘. Here, only 1 mm-sized grains are aligned. See Sect. 3.6 for details.
