Fig. 6
Download original image

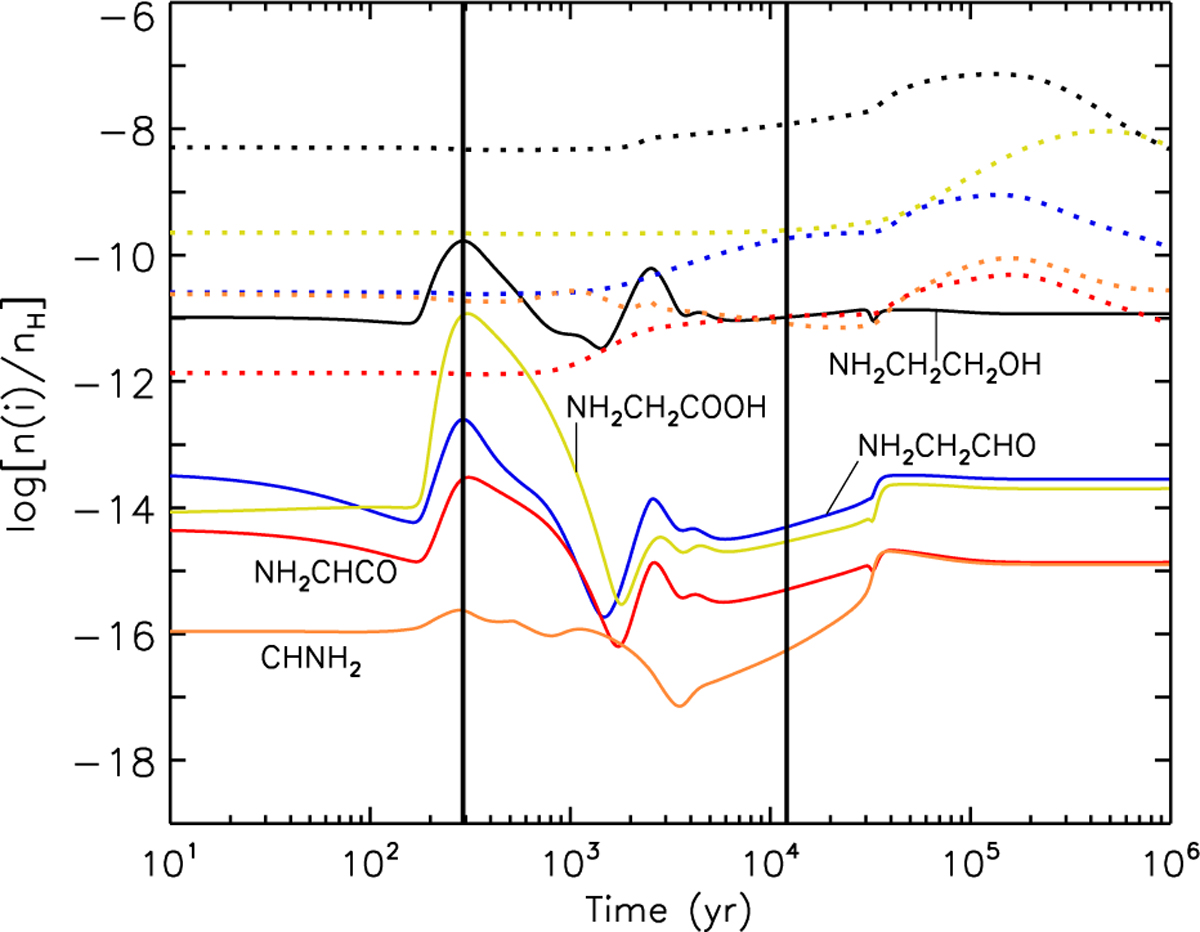

Fractional gas-phase abundances of NH2CHCO and relevant products with respect to total hydrogen. The results correspond to the S-VHCR setup, with the collapse stage shown on the left and the shocked stage shown on the right. Solid lines indicate gas-phase abundances; dotted lines of the same color indicate the species on the grain (surface and bulk ice).
