Fig. 7
Download original image

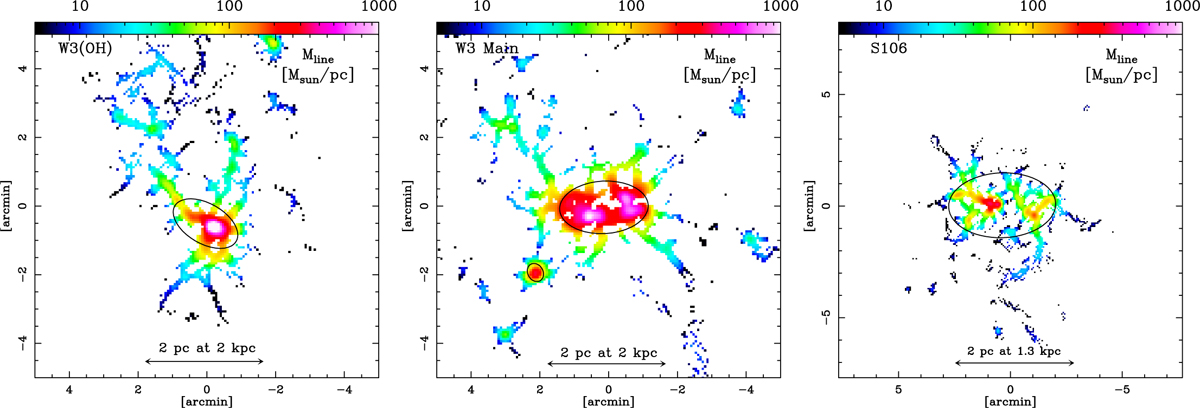

Maps of filament line mass, Mline (in M⊙ /pc) for W3(OH), W3 Main, and S 106 from left to right. All three panels have the same physical scale of 5.8 pc × 5.8 pc and the same colour scale. The black ellipses indicate the hub sizes as given in Table 1.
