Understanding JWST water spectra: What can thermochemical models tell us about the (cold) water in protoplanetary disks?

Open Access

Fig. A.9

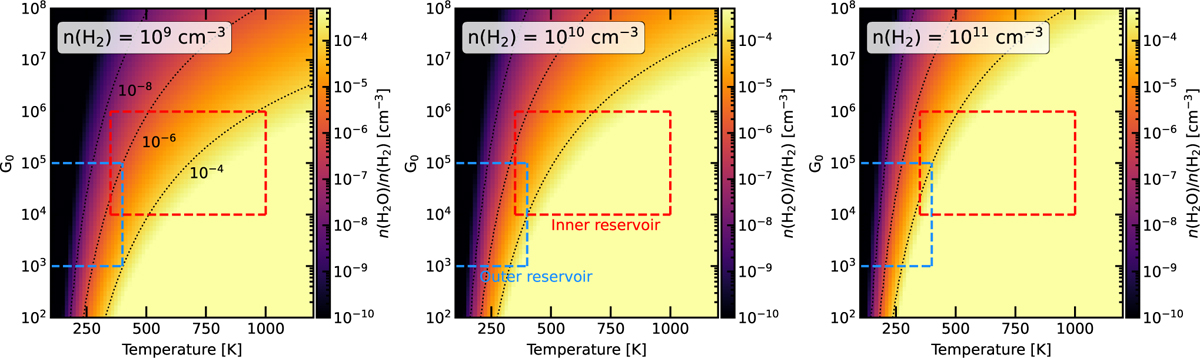

H₂O abundance as a function of gas temperature and UV radiation field, following a simple chemical model (see Sect. A.4). The red and blue boxes represent the conditions within the inner and outer H₂O reservoir.
