The Diamond Ring in Cygnus X: Advanced stage of an expanding bubble of ionised carbon

Open Access

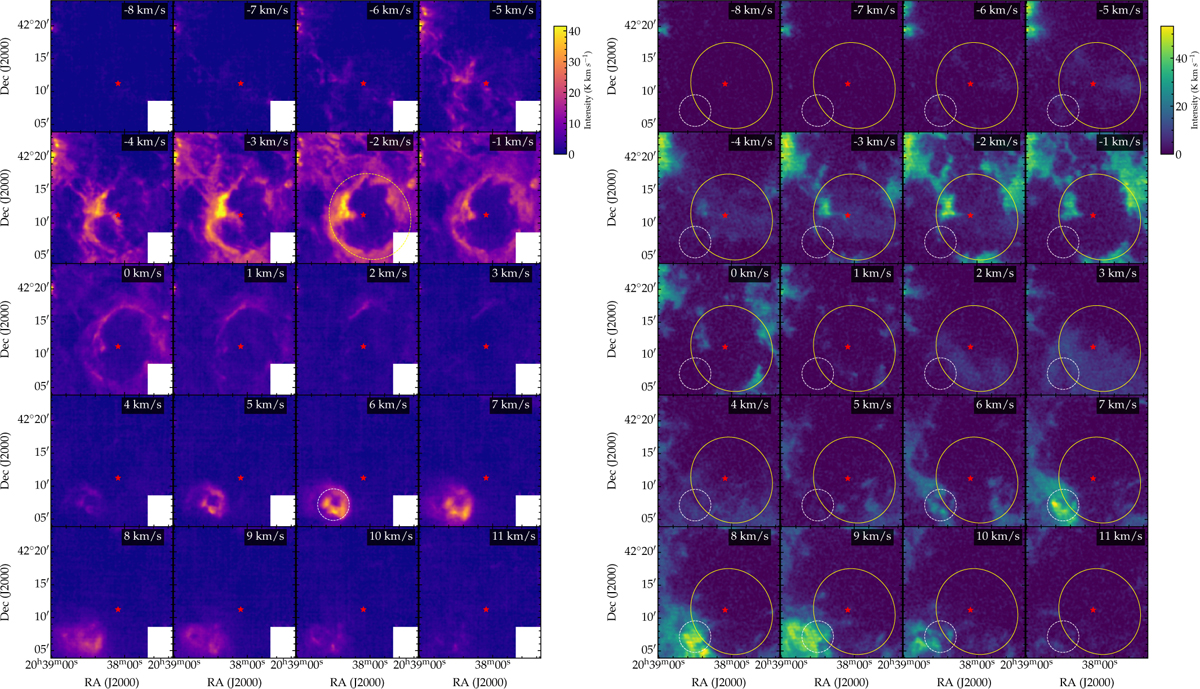

Fig. 3

Channel maps of [C II] (left) and CO 1→0 (right) emission. A yellow ellipse and a white circle indicate the positions of the Diamond Ring and Cl 13, respectively. The velocity spacing is 1 km s⁻¹ at an angular resolution of 20″, the position of star #227 is shown by a red stellar symbol.
